View stats (statistic) – Abocom Manageable 14-port HomePNA Plus 2 Fast Ethernet Switch User Manual
Page 38

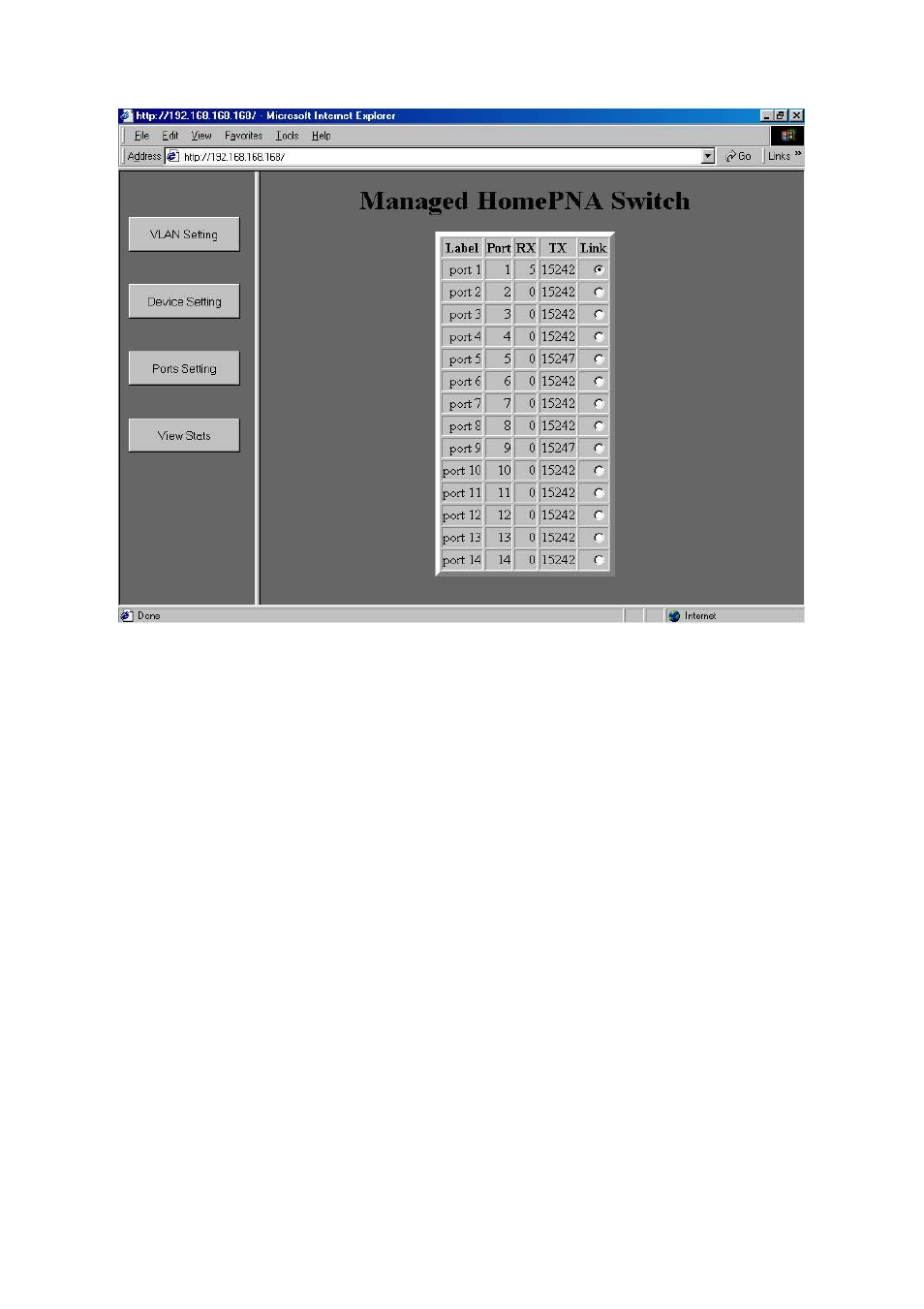

View Stats (statistic)
Label
Displays the name of each port. It is changeable in Device Setting page.
Port
Displays the port number of each port.
RX
Displays the real-time data receiving byte counts for each HomePNA port.
TX
Displays the real-time data transmitting byte counts for each HomePNA port.
Link
Displays that which ports connect to the NIC. For example, the above figure
shows that the port 1 on the HomePNA switch is linked to a NIC.
- 32 -
