Ports setting – Abocom Manageable 14-port HomePNA Plus 2 Fast Ethernet Switch User Manual
Page 37

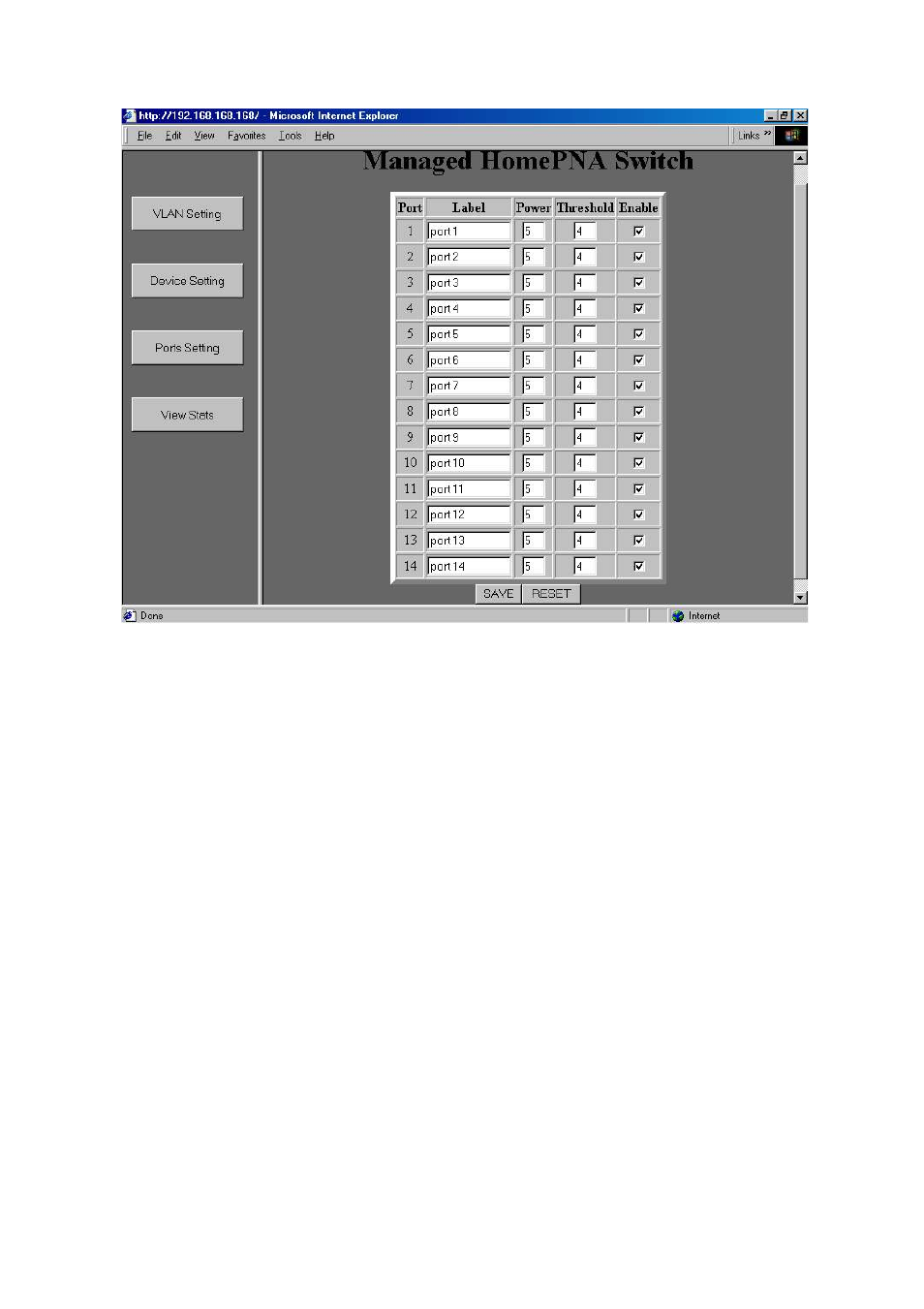

Ports Setting
Label (Port Name)
Displays the name of each port. It is changeable.
Power
The default power level is 5. It is adjustable. For the best transmitting quality,
you can move the arrow up or down to select the optimal level.
Threshold
The default threshold level is 4. It is adjustable. For the best receiving quality,
you can move the arrow up or down to select the optimal level.
Enable
Enable/Disable each HomePNA port. Default: every port is enabled.
After all settings are done, press the SAVE button to save settings, or you could press
the RESET button to go back to the saving screen.
- 31 -
