EXPANDING TO MORE HOMEPNA PORTS
To expand the home networking applications, you could:
Uplinking to a Multi-ports Ethernet Switch
Use an UTP CAT5 cable to connect the switch’s Uplink port to the Uplink of another

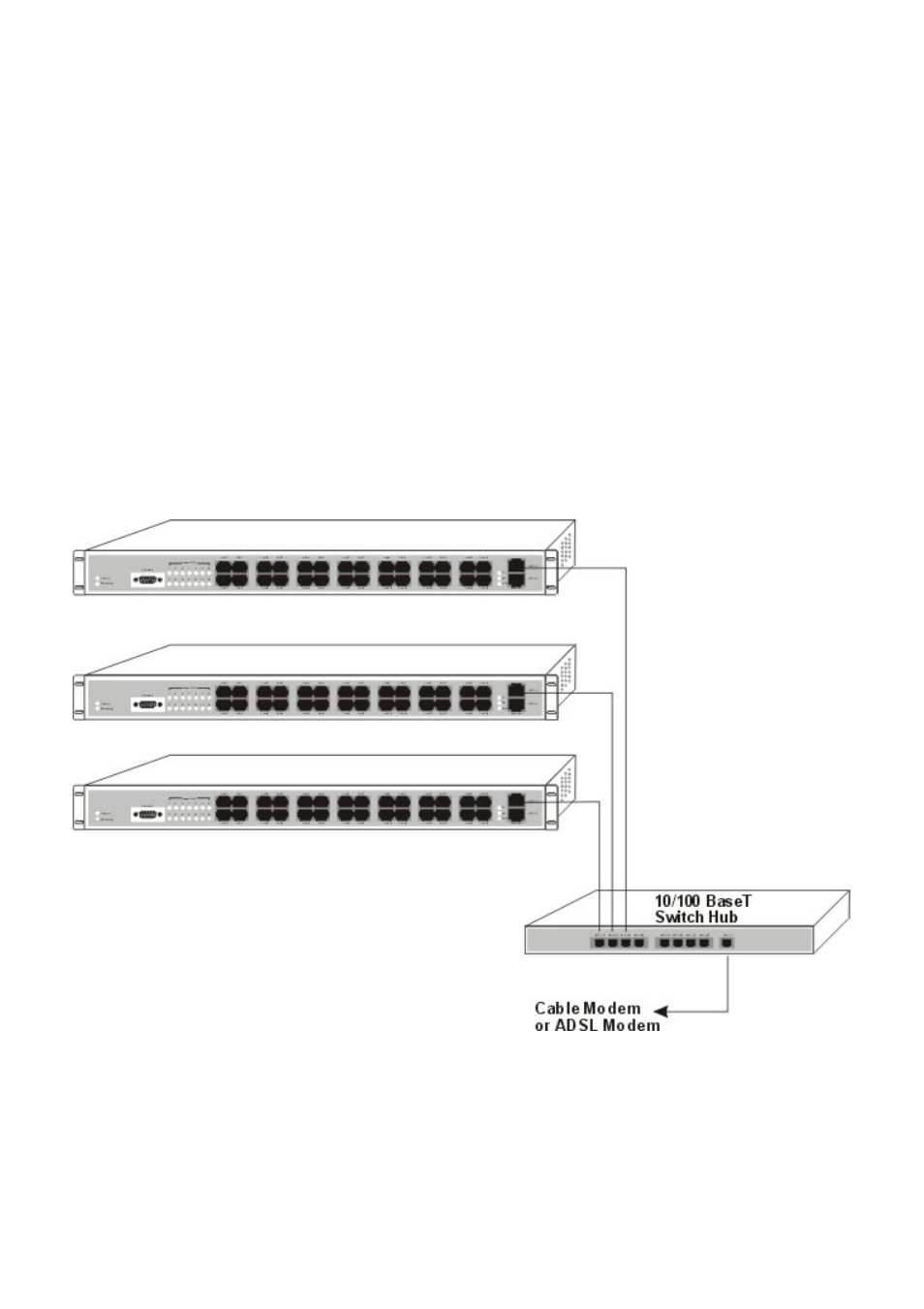

Switching-Hub, for example an 8-ports switch, as illustrated below. Check the Link
LED on the 8 port switch to verify if the switch and Ethernet switch are well
connected.
One of the Ethernet ports on the 8-port switch could be connected to Cable Modem,
xDSL Modem or Router for Internet Access.
