MDF/IDF Connection

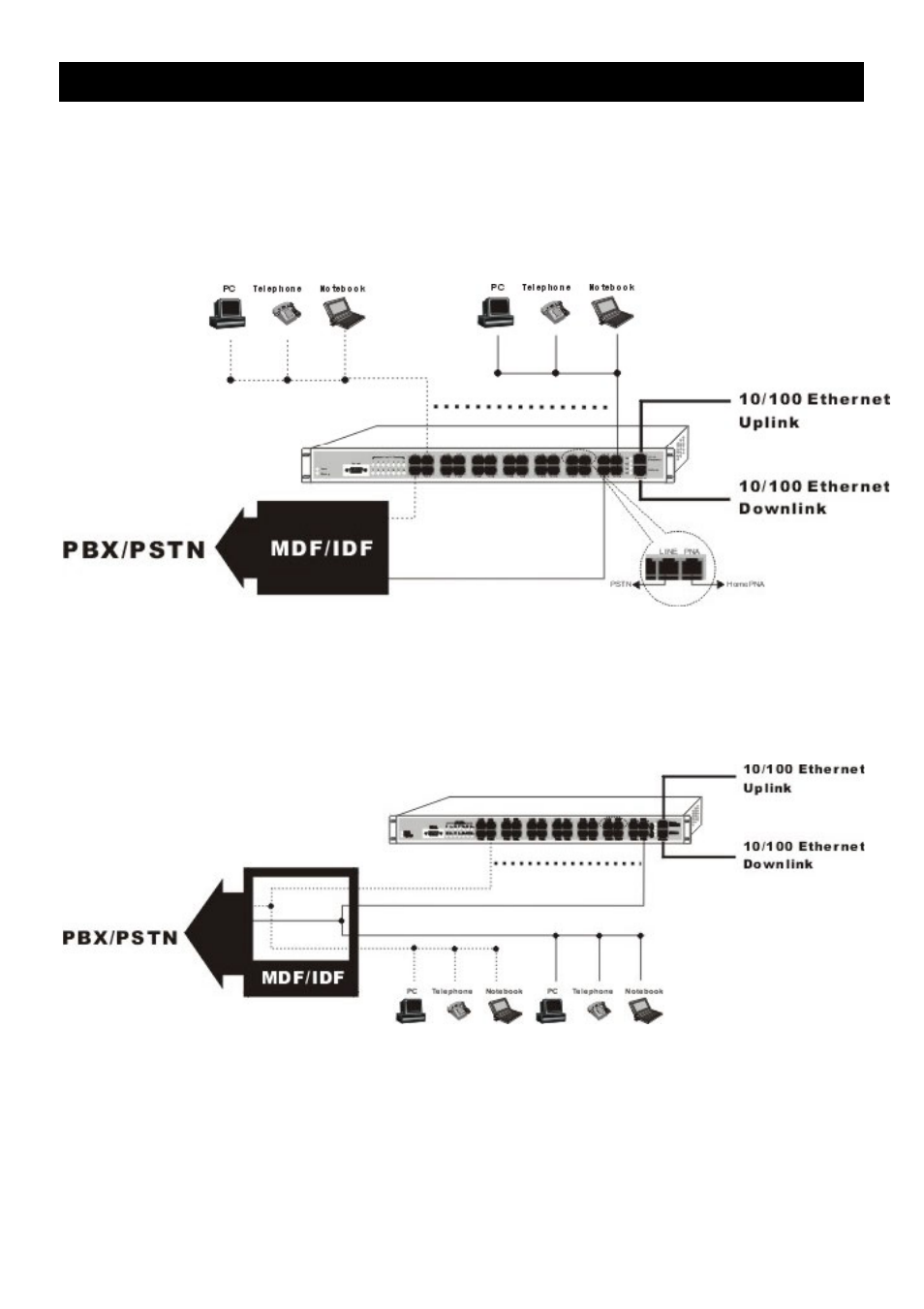

There are two ways to connect the switch to MDF/IDF panel.
Method A:
Cut in the existing phone line, connecting the PBX/PSTN ends to the switch LINE ports
and the PCs to the PNA ports.
Method B
Keep the existing phone line, pulling another connection line from the MDF/IDF and
connect it to the PNA ports.
