Sony ICF-SW1000TS User Manual

Page 63

Radio

Connecting an external antenna for
optimum reception

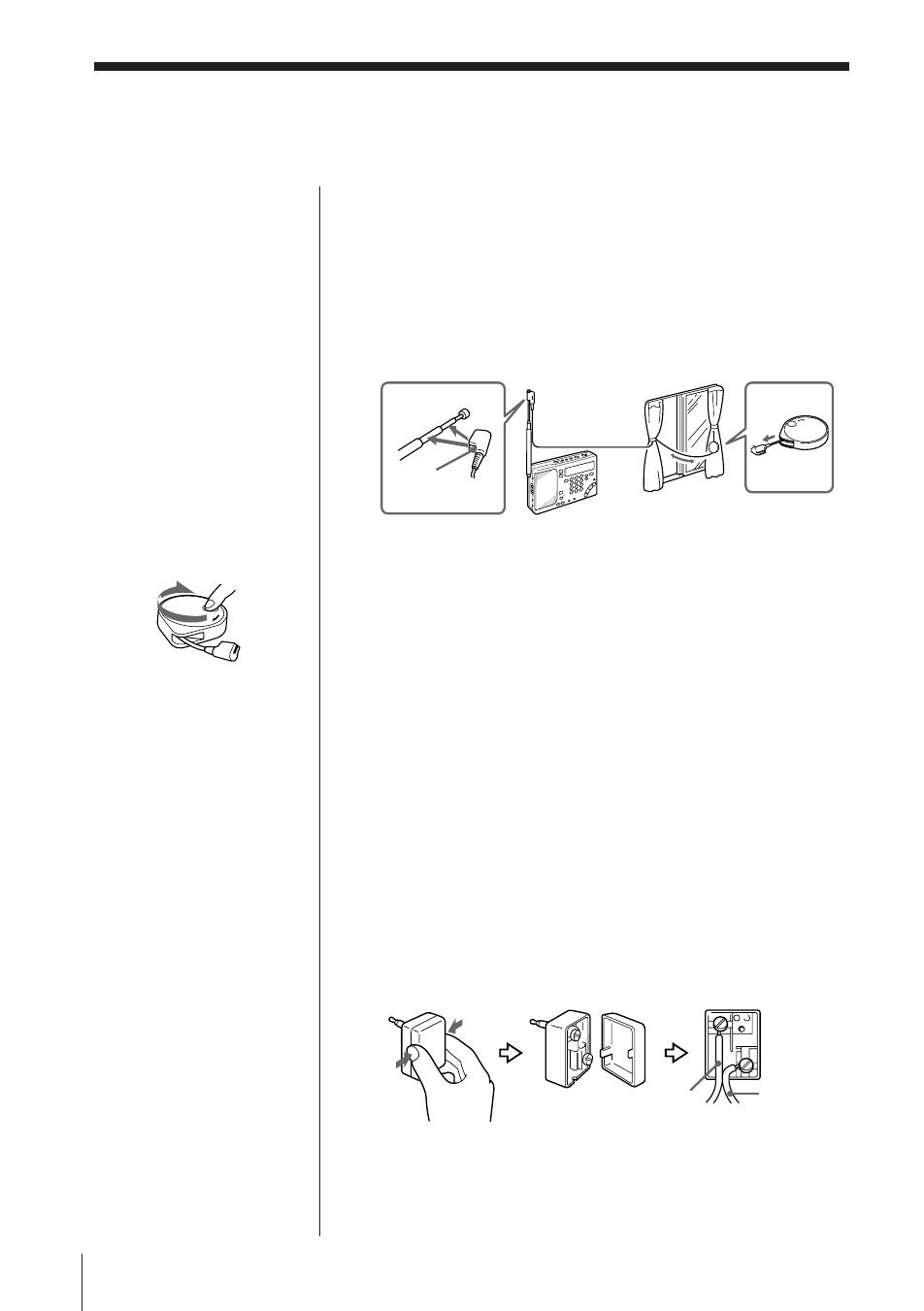

Using the supplied SW antenna

Under normal conditions, the telescopic antenna is
sufficient for optimal SW reception. However, the use
of the supplied SW antenna is recommended if the
reception is poor when listening to the radio inside a
building due to concrete and metal obstructions.

1 Fully pull out the cord from the case.

2 Attach the coupler to the telescopic antenna.

3 If the window can be opened, gently extend the cord

with the case outside the window after making sure
that doing so will not pose any danger.

If the window cannot be opened, fully extend the
cord along the frame of the window.

For the active antenna (AN-LP1) supplied with
ICF-SW1000TS
Before operating the unit, please read the instructions
manual for AN-LP1.

Using the antenna connector (supplied for the
World model only)

Use the supplied antenna connector when using an
SW wire antenna, etc.

1 Connect the wire antenna wire to the supplied

antenna connector.

2 Connect the antenna connector to the AM EXT ANT

jack of the unit.

Tips
• When extending the

cord and case of the
supplied SW compact
antenna outside the
window, make sure
that doing so will not
pose any threat or
danger to you and
others. In addition,
make sure to secure
firmly so as not to drop
the SW compact
antenna.

• After using the SW

compact antenna, turn
the reel in the direction
of the arrow to wind up
the cord.

For the compact antenna (AN-71) supplied with
ICF-SW1000T

Cord

Coupler

1 Case

Earth wire

Wire
antenna
