Deutsch

13

A Druckanschluss M22x1,5
B Zone 1, Kategorie 2 bzw. 3
C Zone 0/20, Kategorie 1
D Druckluft 1/4“-Durchmesser 8 mm

Luftbedarf 300 l/min bei 5 bar

E Abluft 3/8“-Durchmesser 12 mm

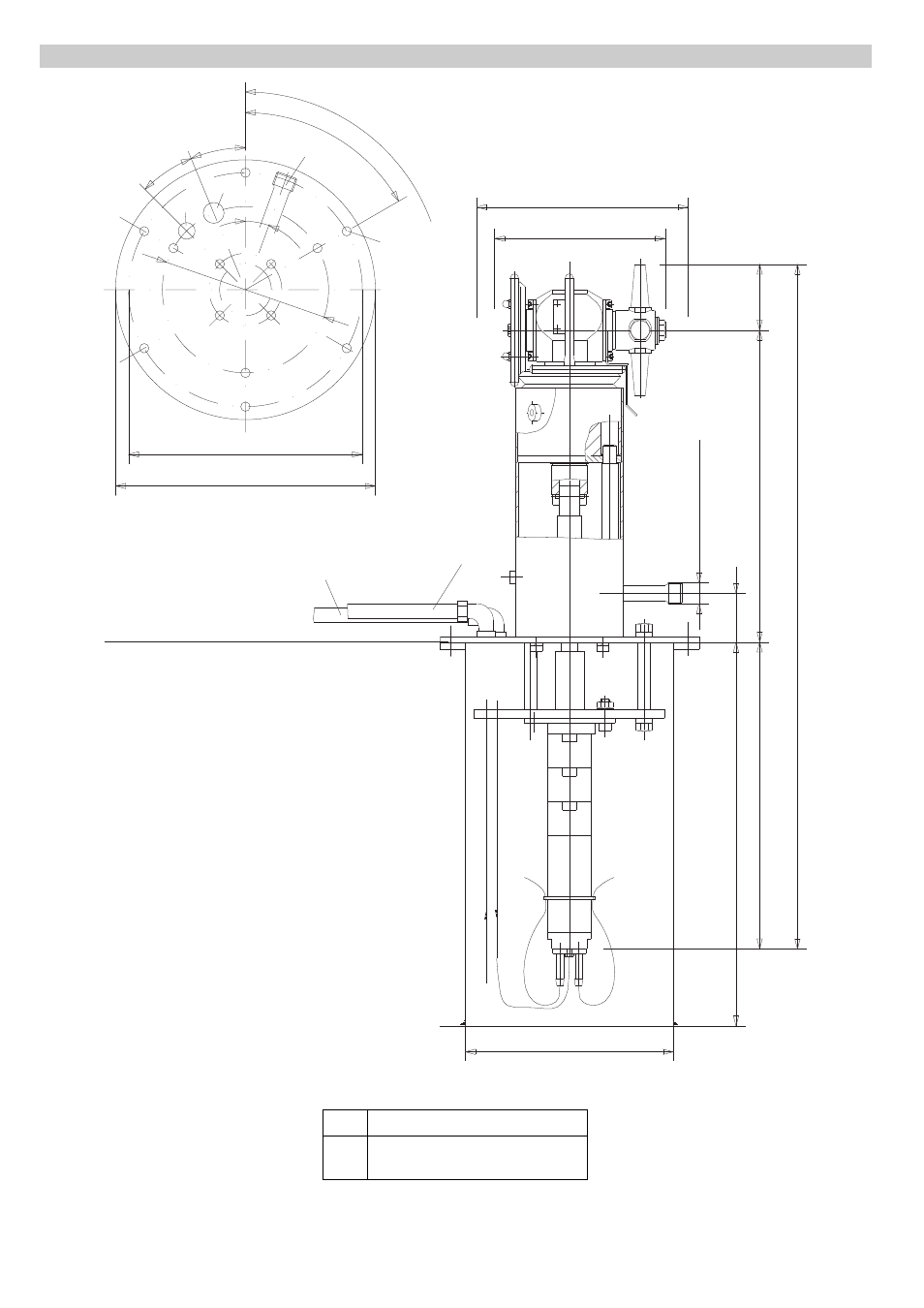

Maßblatt HKF 200 PU

X

XX

22,5˚

160

250

250

300

22,5˚

6x60

60˚

9

20˚

20

16

225

(65)

300

665

min.

400

28

A

B

C

D

E

X

Rotationsdurchmesser 200 mm

XX

Mindest-Einführungsdurchmes-
ser 180 mm
