PPC-V106 User Manual
64

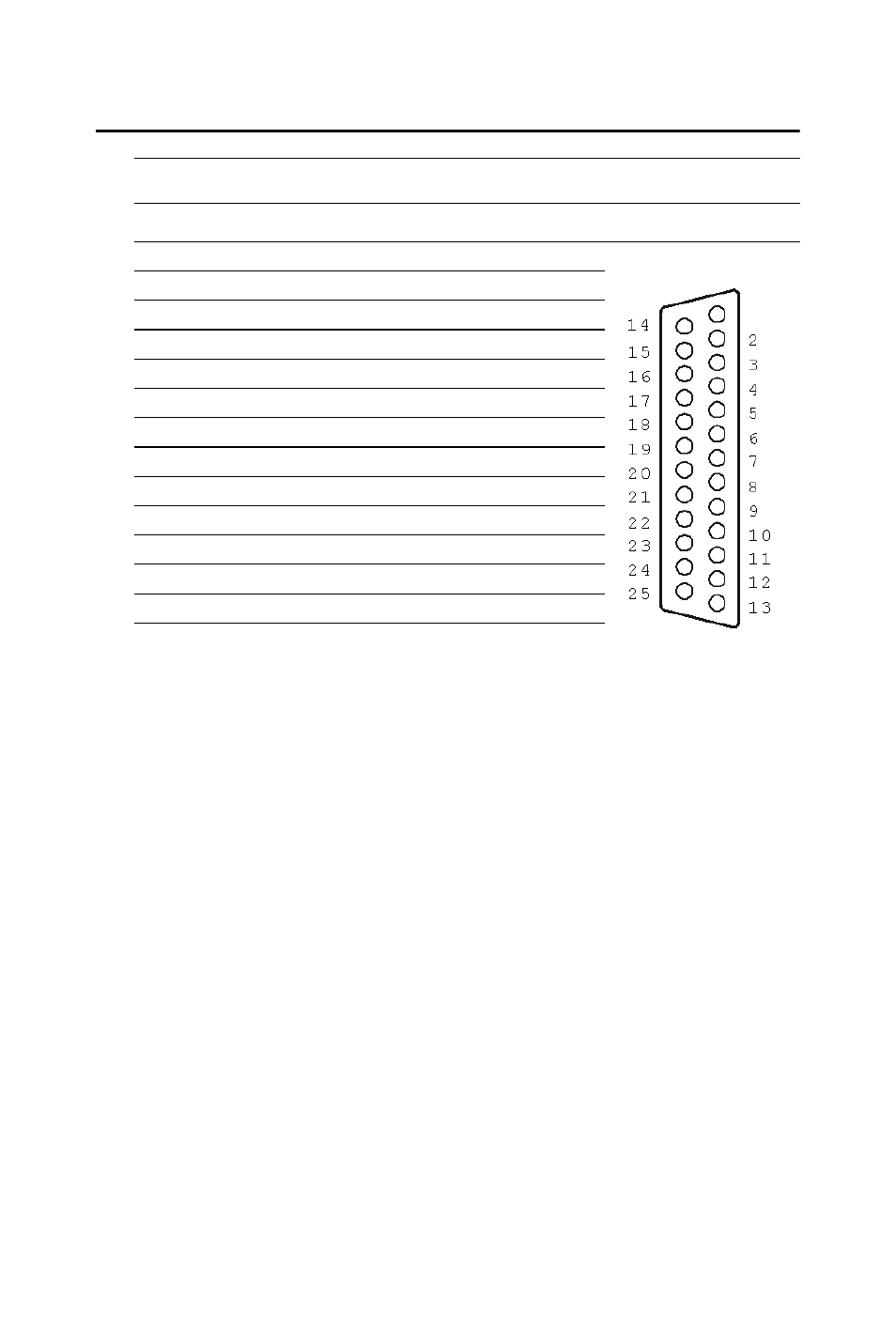

B.14 Parallel Port Connector (CN11)
Table B.4: Parallel Port Connector (CN8)
Pin
Signal
Pin
Signal
1
STROBE*
2
D0
3
D1
4
D2
5
D3
6
D4
7
D5
8
D6
9
D7
10
ACK*
11
BUSY
12
PE
13
SLCT
14
AUTOFD*
15
ERR*
16
INIT*
17
SLCTINI*
18
GND
19
GND
20
GND
21
GND
22
GND
23
GND
24
GND
25
GND
* low active
