57
Appendix B

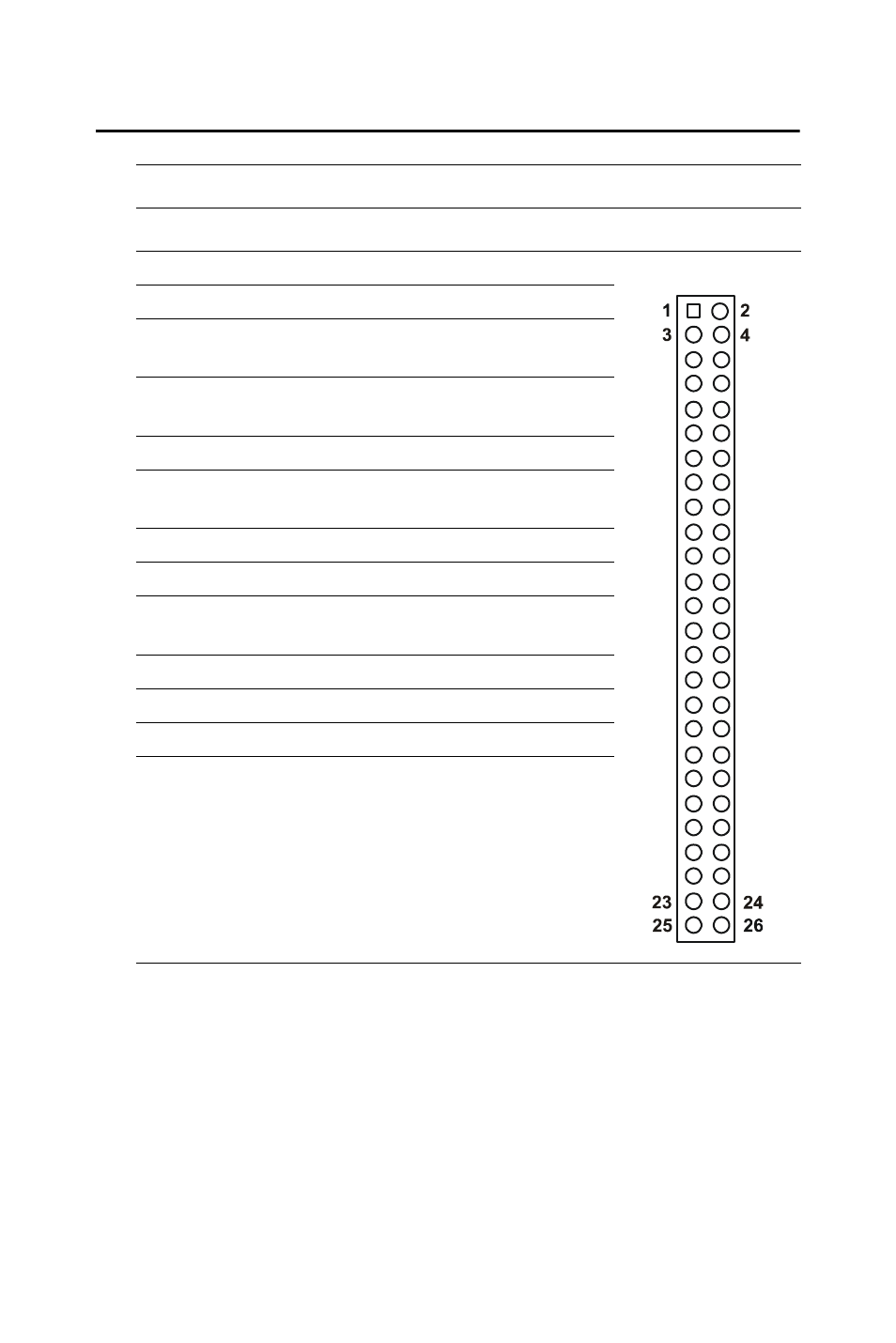

B.3 Floppy Drive Connector (CN16) Reserved
Table B.3: Floppy drive connector (CN16)
Pin
Signal
Pin
Signal
1
VCC (+5 V)
14
STEP
2
INDEX
15
GND
3
VCC (+5 V)
16
WRITE
ENABLE
4
DRIVE
SELECT
17
GND
5
VCC (+5 V)
18
WRITE DATA
6
DISK
CHANGE
19
GND
7
NC
20
TRACK 0
8
NC
21
GND
9
NC
22
WRITE PRO-
TECT
10
MOTOR ON
23
GND
11
NC
24
READ DATA
12
DIRECTION
25
GND
13
DENSITY
SELECT
26
SIDE 1
SELECT
