When you turn the Panel PC around and look at its rear cover, you will
find VESA standard holes and others for mounting. There are no ventila-
tion holes, as shown in Figure 2-3.

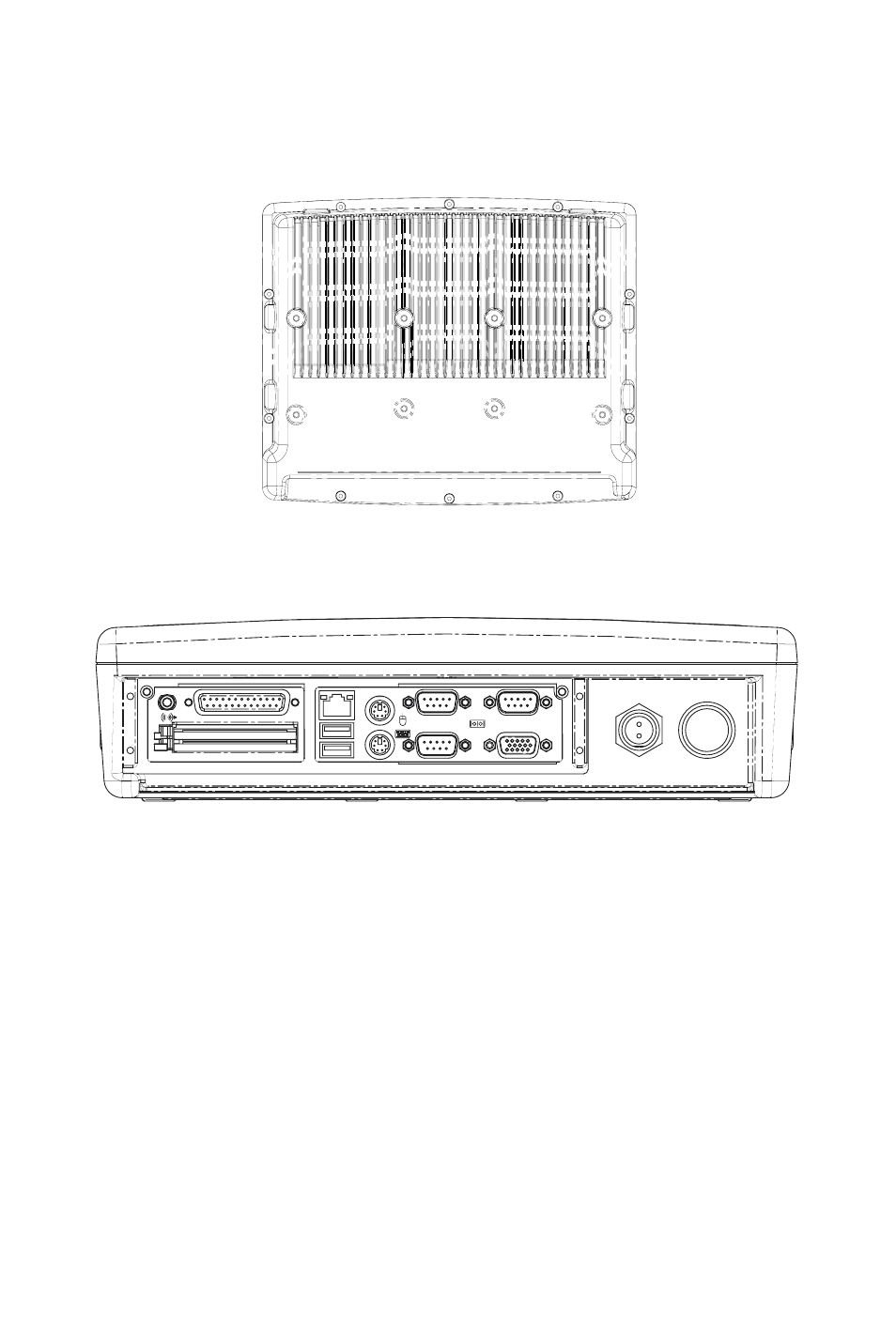

Figure 2.3: Rear Side View of the Panel PC
The I/O section is at the bottom of the panel PC, as shown in Fig. 2-4.
Figure 2.4: Panel PC I/O (DC model)
2
3
1
