27 Chapter 4

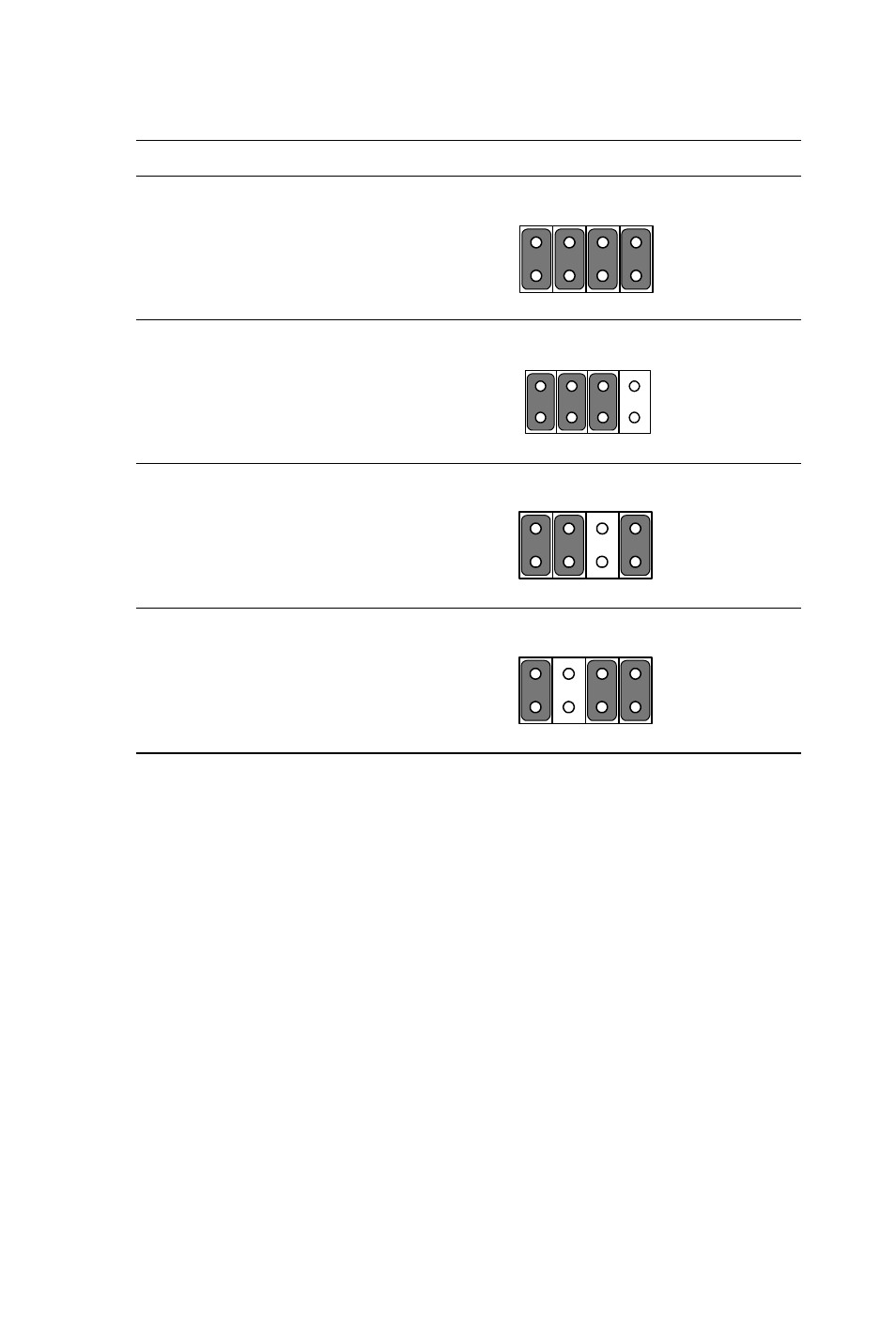

Table 4.7: JP3 Setting
Normal (default)
Remove jumper from pin
1 and 2 to make pin 9 on
COM1 a power output.
Remove jumper from pin
3 and 4 to make pin 9 on
COM2 a power output.
Remove jumper from pin
5 and 6 to make pin 9 on
COM3 a power output.
7
8
5 3 1
6 4 2
7
8
5 3 1
6 4 2
7
8
5 3 1
6 4 2
7
8
5 3 1
6 4 2
