Spektrum SPMAR10000 User Manual
Page 8
EN

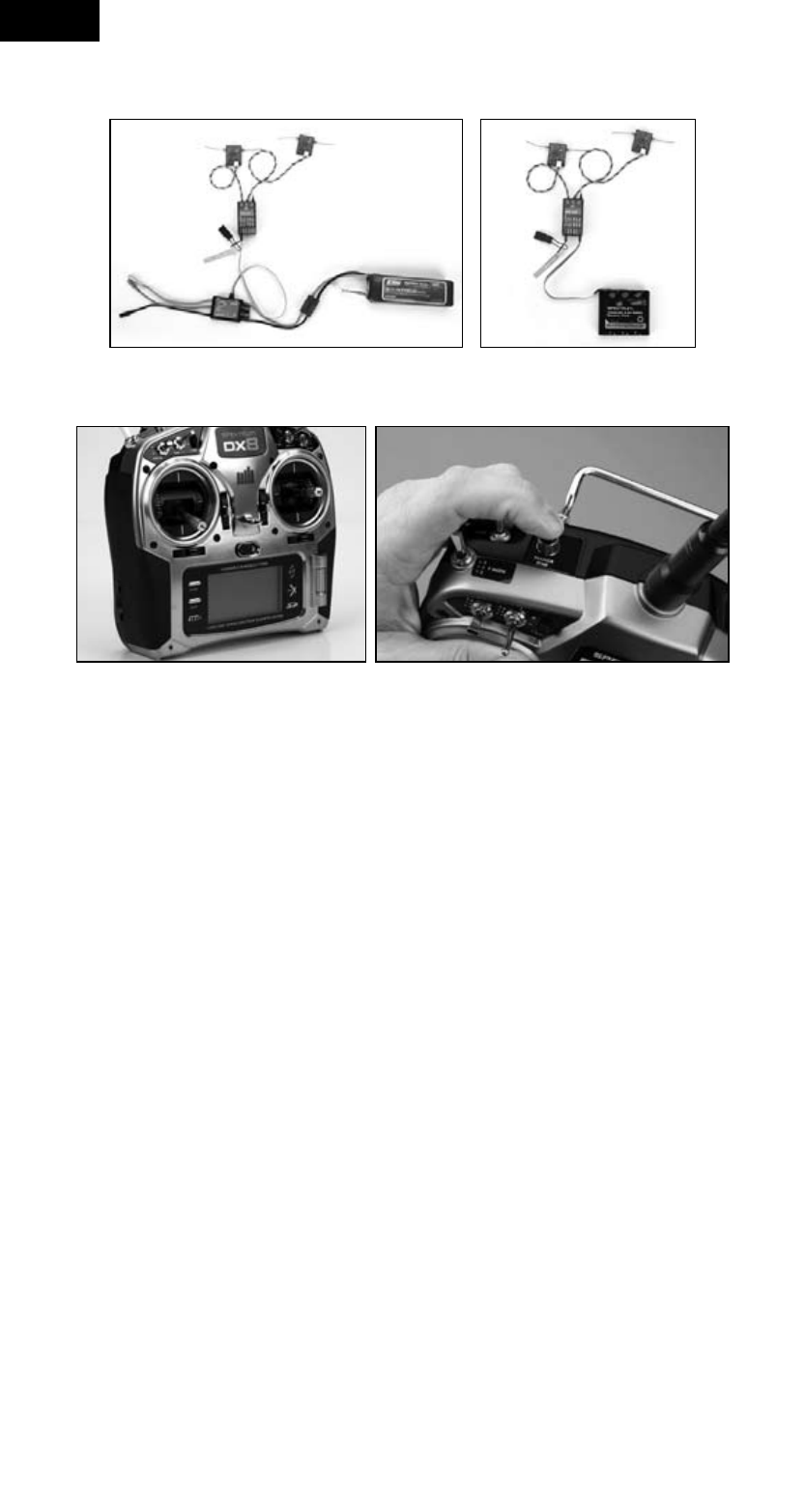

2. Power the receiver. Note that the LED on the internal receiver board and all of the
attached receivers should be flashing, indicating the receiver is in bind mode.
3. Move the sticks and switches on the transmitter to the desired failsafe positions
(low throttle and neutral control positions).
4. Follow the procedures of your specific transmitter to enter Bind Mode. The system will
connect within a few seconds. Once connected, the LED on the receiver will go solid
indicating the system is connected.
5. Remove the bind plug from the BIND/DATA port on the receiver before you power off
the transmitter and store it in a convenient place.
6. After setting up your model, rebind the system so the true low throttle and neutral
control surface positions are set.
NOTICE: Remove the bind plug to prevent the system from entering bind mode the
next time the power is turned on.
SmartSafe™ Failsafe
SmartSafe Failsafe is always active in both hold last command failsafe and in preset failsafe.
SmartSafe is a safety feature on the throttle channel only that offers the following benefits:
Prevents electric motors from operating when the receiver only is turned on
•
(no signal present)
Prevents the speed controller from arming until the throttle is moved to low throttle
•
position after connection is made
Shuts off electric motor and reduces gas/glow engines to idle if signal is lost
•
If throttle is at any position other than low, the ESC won’t arm
•
If connection is lost in flight:
•
SmartSafe sets the throttle to the position it was in during the binding process.
How To Program
SmartSafe is automatically set when hold last command failsafe or Preset failsafe is
programmed or the system is bound. Note: It’s important to have the throttle stick in the
low position to store low throttle during binding.
