Overview
2

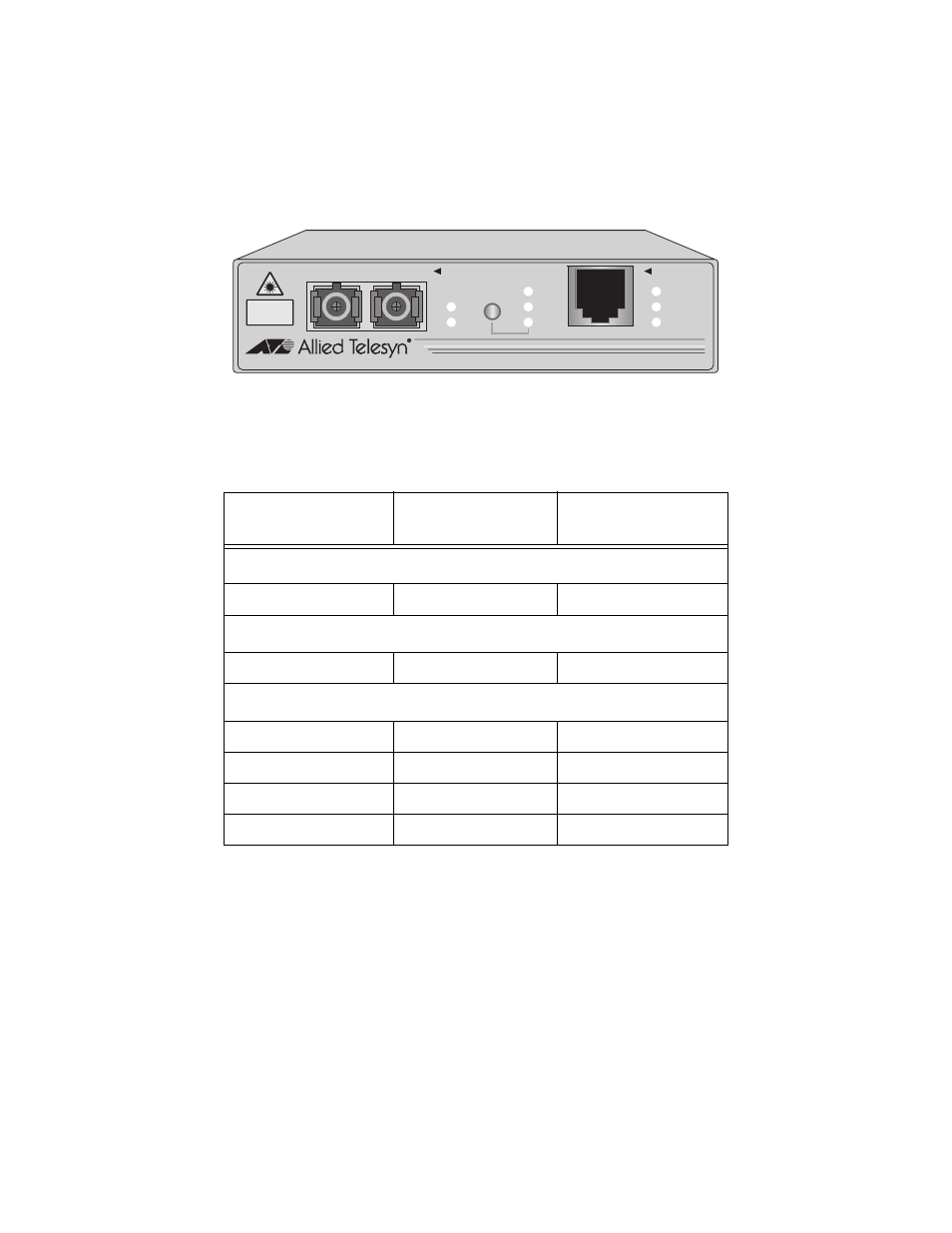

Figure 2 shows an example of an AT-MC1005/x Series Media Converter.
Figure 2 AT-MC1005/x Series Gigabit Ethernet Media Converter (Model AT-MC1005/3)
Table 1 lists the cabling distances for the Gigabit Ethernet media converters.
Table 1 Maximum Cabling Distances
Port Type of Connector Maximum Operating
Distance
1
1. Maximum distance may be less depending on the type of fiber optic cabling used with the port.
1000Base-T
2
2. The 1000Base-T port uses 4 pair (8 wires) in a twisted pair cable.
All Models RJ-45 100 m (328 ft)
1000Base-SX
AT-MC1004 SC 550 m (1,804 ft)
1000Base-LX
AT-MC1005/1 SC 10 km (6.2 mi)
AT-MC1005/2 SC 20 km (12.4 mi)
AT-MC1005/3 SC 40 km (24.8 mi)
AT-MC1005/4 SC 70 km (43.4 mi)
1000Base-T
MODE
ML
SML
LT
LNK
ACT
PWR
LNK
ACT
V2
CLASS 1
LASER PRODUCT
DO NOT STARE
INTO BEAM
1000Base-LX TX SM RX
AT-MC1005/3 GIGABIT ETHERNET MEDIA CONVERTER
