AT-FS705LE Installation Guide
23
4. Position the switch onto the wall screws, as
illustrated in .

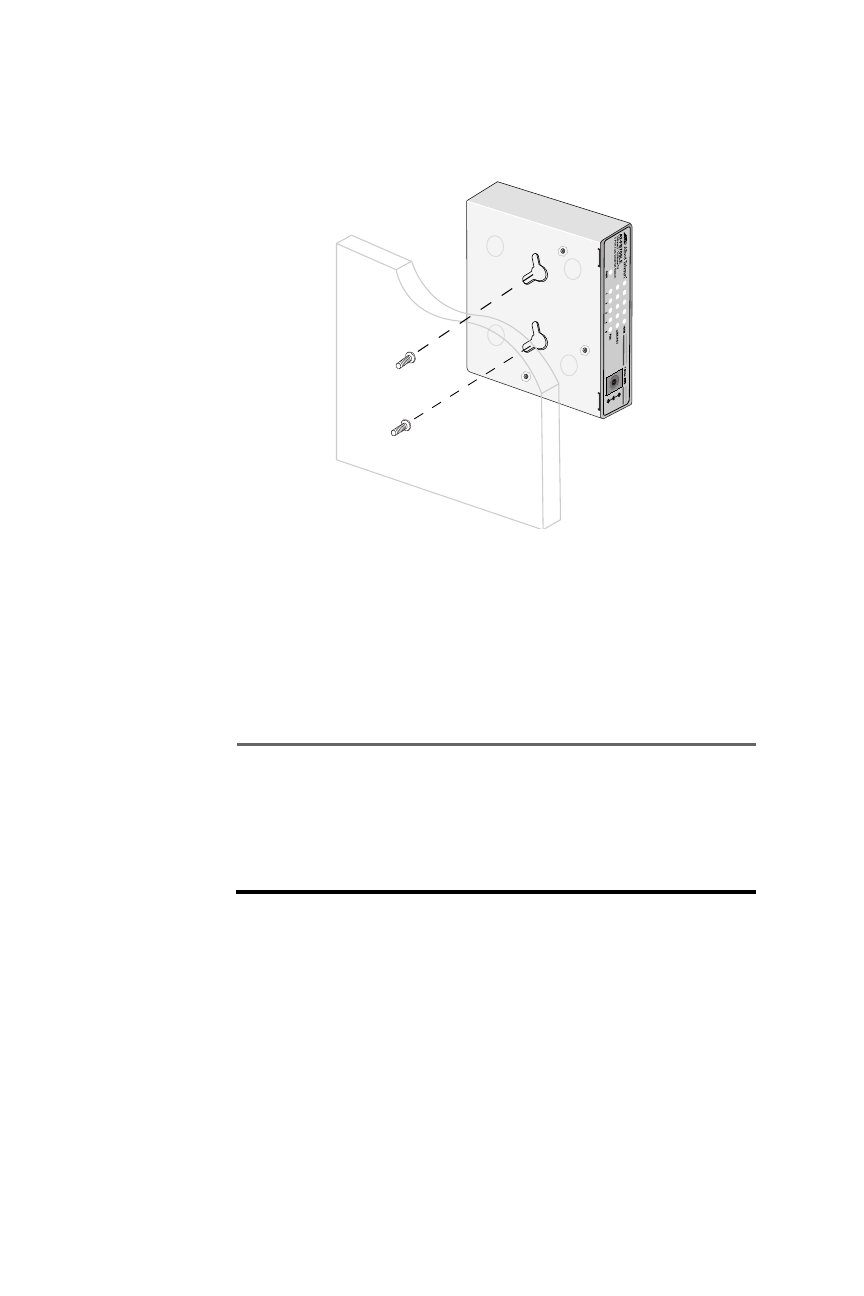

Figure 3 Positioning the Switch Onto the Wall Screws
5. Connected the twisted pair cables to the
twisted pair ports.
Note
You can use either Port 5 or the Uplink
port, but you cannot use both
simultaneously.
When connecting a twisted pair cable to a
port, observe the following guidelines:
• An RJ-45 connector should fit snugly into
the port on the switch. The tab on the con-
nector should lock the connector into place.
