Page 31

AT-FS705LE Installation Guide
19
Installing the Switch on a Table or Desktop
To install the switch on a table or desktop,
perform the following procedure:
1. Remove all the items from the packaging and
store the packaging material in a safe place.
In the event a problem occurs and you need to
return the unit, please use as much of the
original shipping material as possible.

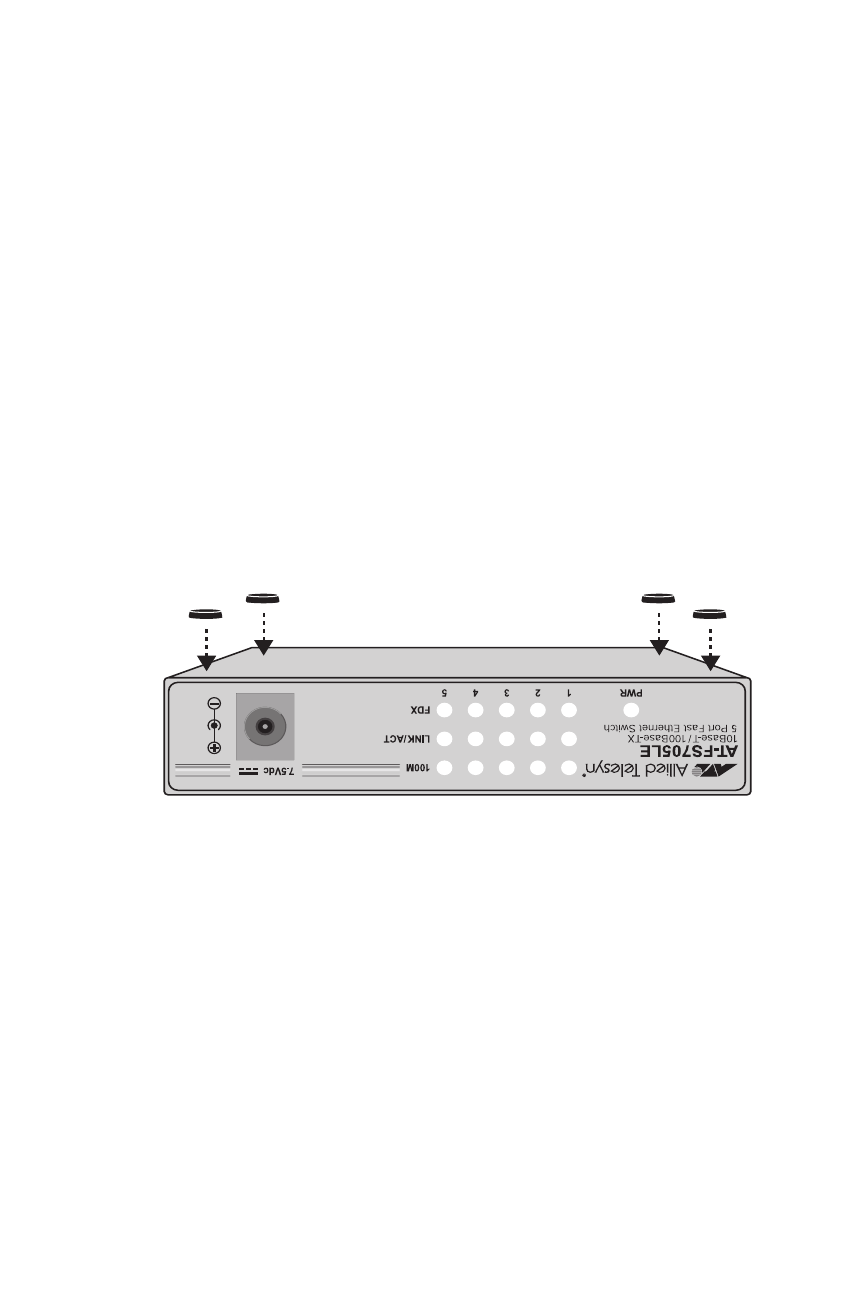

2. Attach the four protective rubber feet to the
bottom of the switch, as illustrated in
Figure 1.
Figure 1 Attaching the Rubber Feet
3. Place the switch on a flat and secure surface,
leaving ample space around the switch for
ventilation.
4. Connected the twisted pair cables to the
twisted pair ports.
