Overview
12
Network Topologies
The AT-FS705LE switch can be used in a
variety of network topologies, such as
standalone or back-to-back. Both topologies are
described below.
Standalone Topology

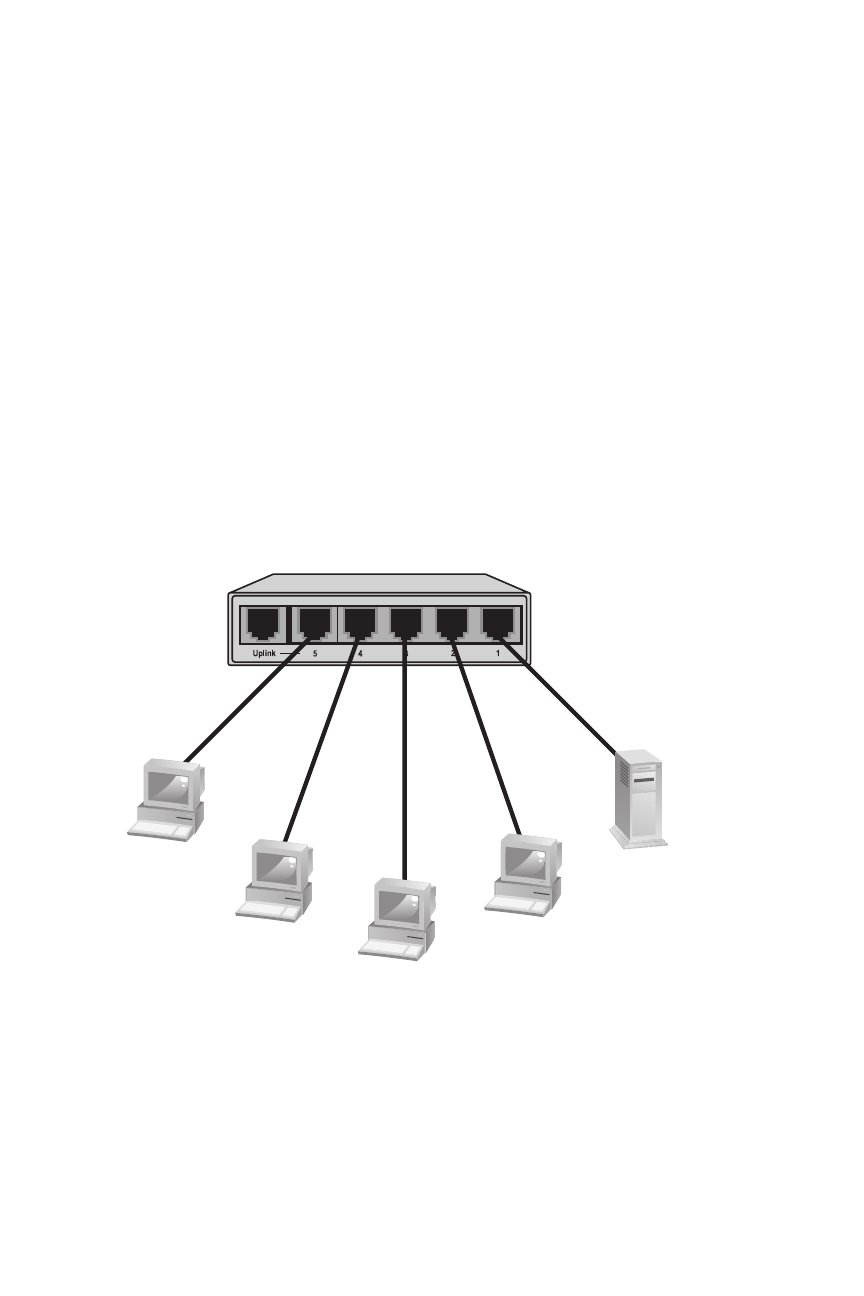

Figure 3 illustrates a network of one AT-
FS705LE switch used to interconnect four
workstations and a server. In this
configuration, the Uplink port is not used.
Figure 3 Standalone Topology
