Wall-mounting the switch – Allied Telesis AT-FS705LE User Manual
Page 34
Installation
22
Wall-Mounting the Switch
The switch can be mounted vertically or
horizontally on a wall using the keyholes on the
bottom of the switch. Except for the plastic
anchors, the screws and other materials
necessary to mount the switch on a wall are not
provided.
To wall-mount the switch, perform the
following procedure:
1. If attached, remove the rubber feet, data
cables, and power cord from the switch.
2. Select a wall location for the switch.
3. Install two plastic anchors and two screws
into the wall.

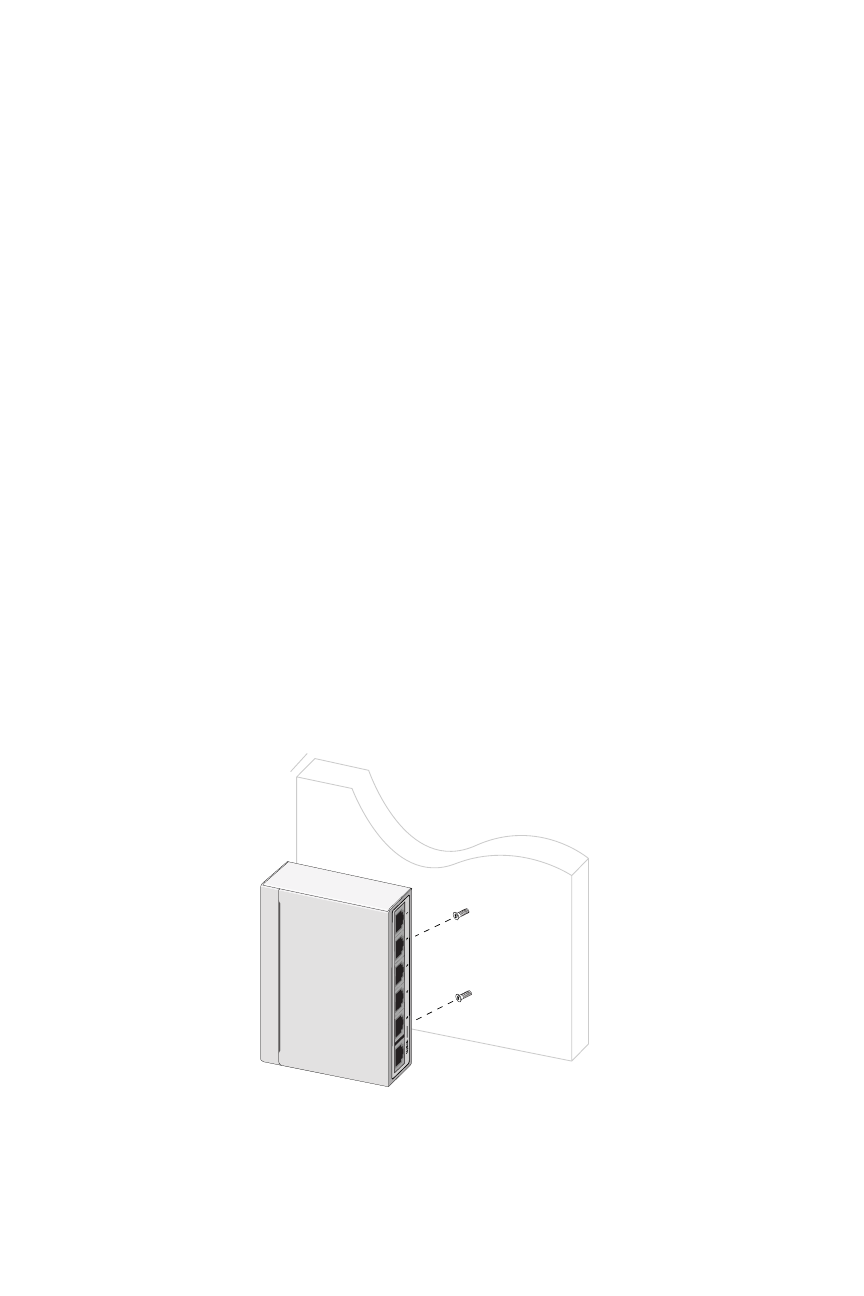

Figure 2 Installing the Plastic Anchors and Screws
Onto The Wall
