AT-S82 Management Software User’s Guide
43
Working with VLANs
This section contains the following procedures for working with VLANs:
ˆ “Creating a VLAN,” next
ˆ “Displaying all VLANs” on page 44
ˆ “Modifying a VLAN” on page 45
Creating a VLAN
To create a VLAN, perform the following procedure:
1. From the main menu, select Static VLANs.
The 802.1Q Static VLAN page is shown in Figure 15.

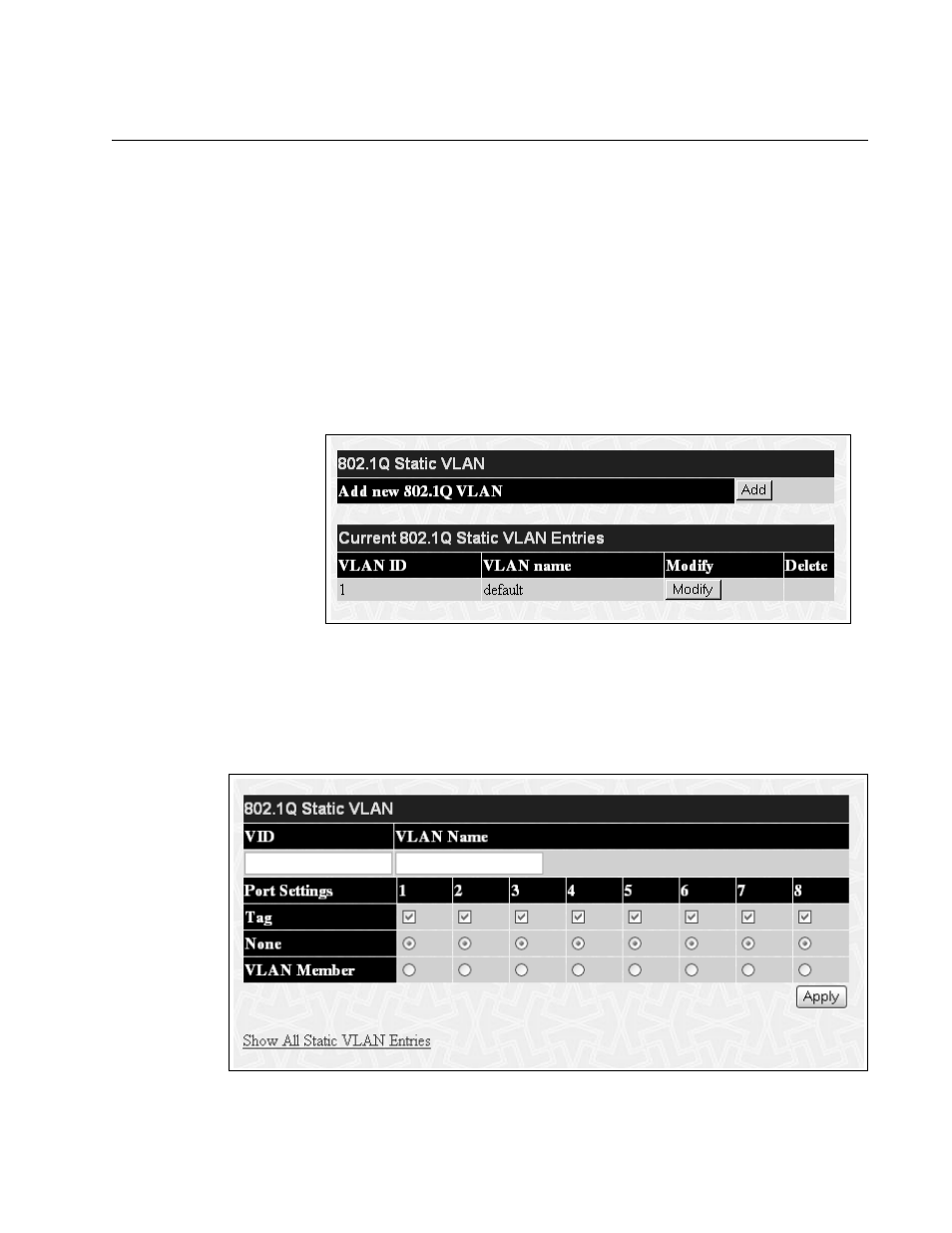

Figure 15. 802.1Q Static VLAN Page
2. Click Add.
A new page opens where you specify the VLAN, as shown in
Figure 16.
Figure 16. VLAN Detail Page
