AT-FS717FC/SC Fast Ethernet Switch Installation Guide
37
Cabling a Dual SC Connector
To connect a fiber optic cable to a dual SC connector, perform the
following procedure:
Warning
Class 1 laser product.
1
Warning
Do not stare into the laser beam.
2

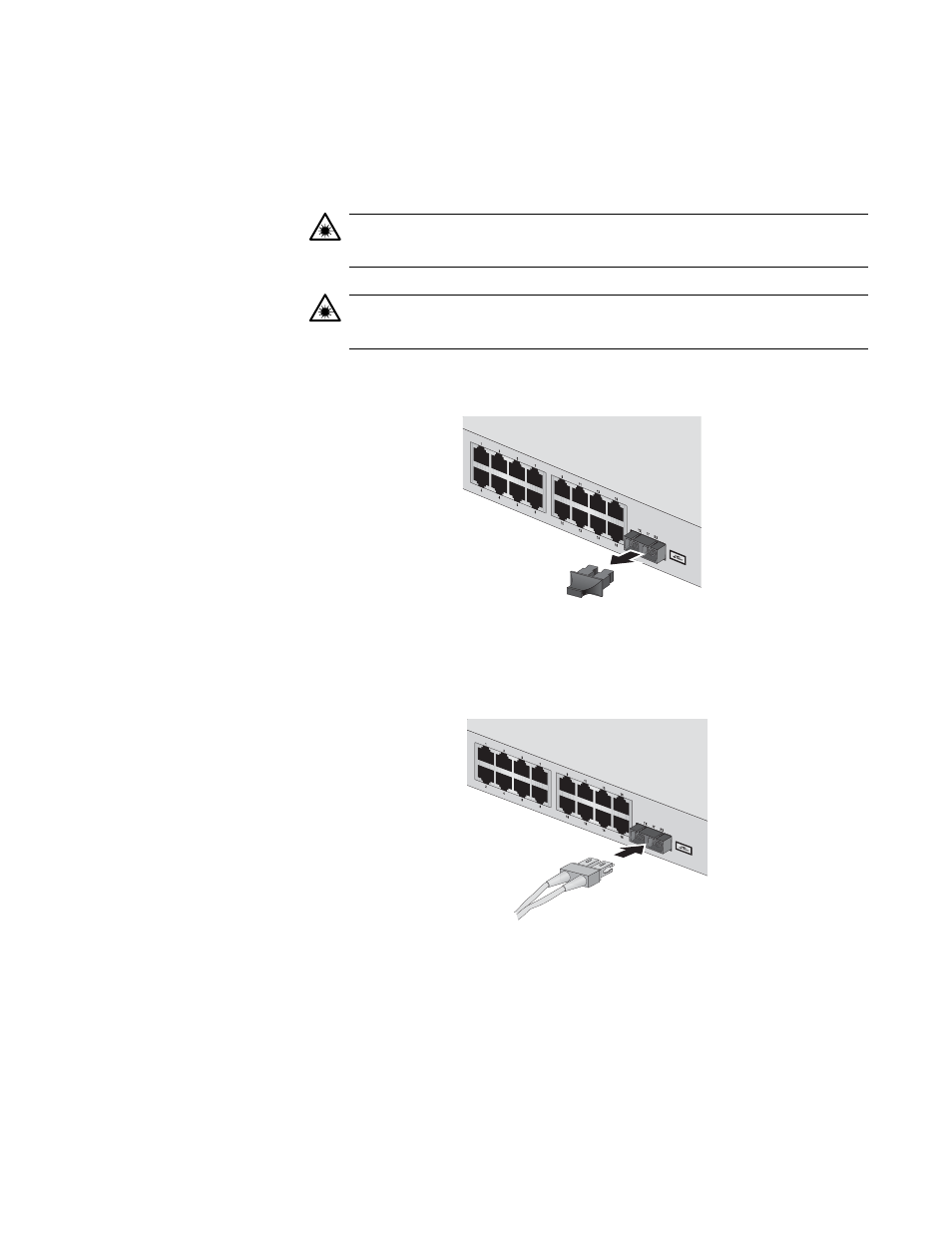

1. Remove the dust cover from the fiber optic port, as shown in Figure 14.
Figure 14. Removing the Dust Cover from a Dual SC Fiber Optic Port
2. Connect the appropriate optical cable to the port, as shown in
Figure 15.
Figure 15. Connecting to the Dual SC Fiber Optic Port
3. Connect the other end of the optical cable to the link partner.
4. Power ON the end-nodes.
5. Check that all the LINK/ACT LEDs are green. If any of the LEDs is
OFF, refer to “Installation” on page 25 for instructions.
