Network Topology
Figure 9 illustrates a topology using one AT-FS202 Bridging Media
Converter to interconnect two small networks of stakable hubs.
ˆ Network 1 has an AT-8026FC switch connected to the 100Base-FX
port on the AT-FS202 Converter.
ˆ Network 2 has an AT-FS708 switch connected to the 10Base-T/
100Base-TX port on the AT-FS202 Converter.

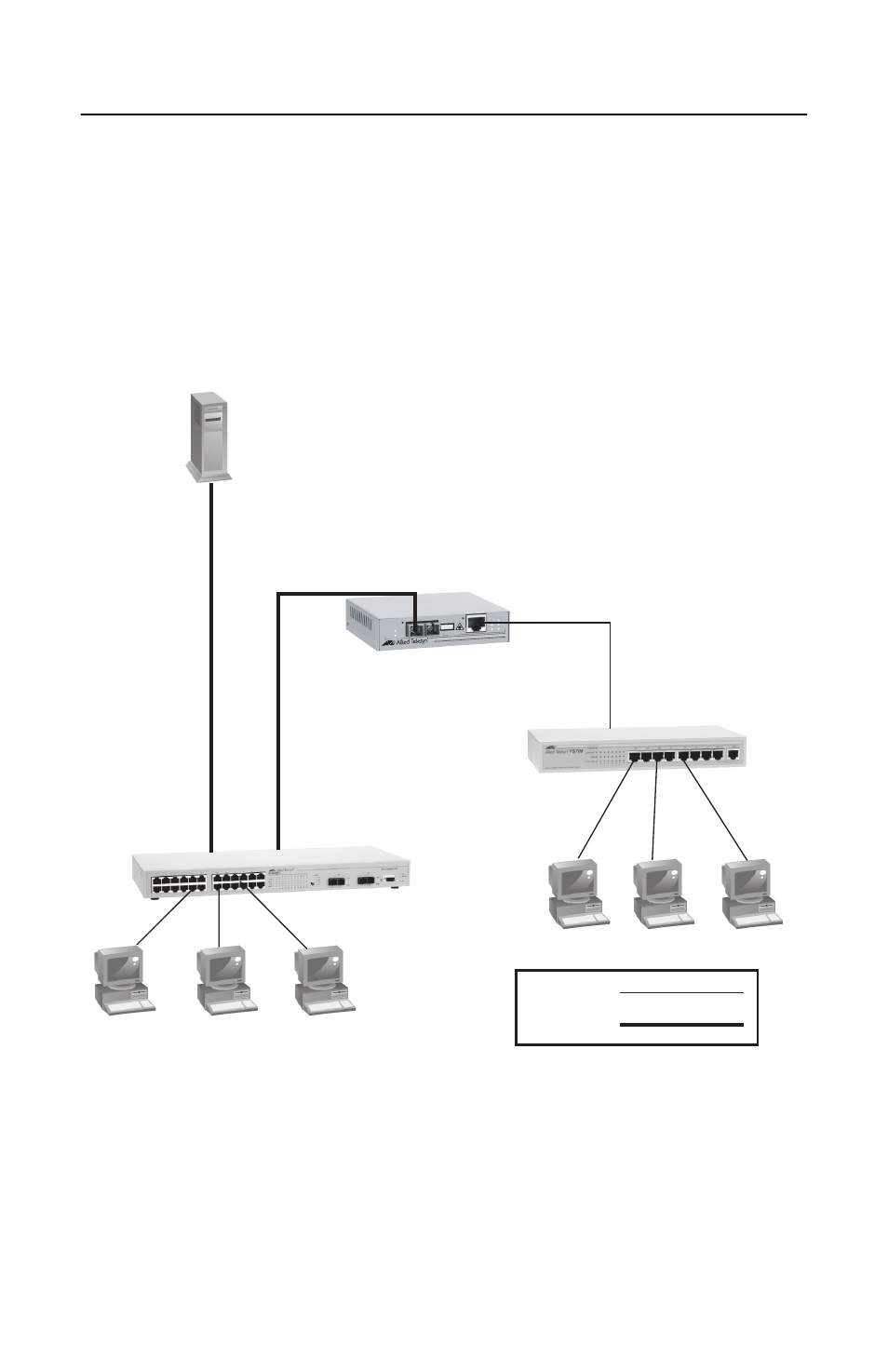

Figure 9. Typical Configuration Using the AT-FS202 Bridging Media
AT-8026FC
AT-FS202
AT-FS708
Twisted Pair
Fiber Optic
10Base-T/100Base-TX
AT-FS202 BRIDGING MEDI A CONVERTER IEEE 802.3/802.3U
AUTO MDI/MDI-X
LNK/ ACT FD/ COL
PWR AUTO NEG
100M LNK/ ACT
FD/COL PORT 2
100Base-FX
TX RX
PORT 1
MULTI MODE
939
CLASS 1 LASER PRODUCT
