AT-GS900/8POE Gigabit Ethernet Switch Installation Guide
43
Cabling and Powering on the Switch
This section contains the following procedures:
ˆ “Cabling the Twisted Pair Ports,” next
ˆ “Cabling an SFP Transceiver” on page 44
ˆ “Powering on the Switch” on page 45
Cabling the
Twisted Pair
Ports
To connect to the 10/100Base-T twisted pair ports on the AT-FS708/POE
switch, perform the following procedure:
1. Connect the twisted pair data cables to the RJ-45 ports on the switch,
as shown in Figure 11.

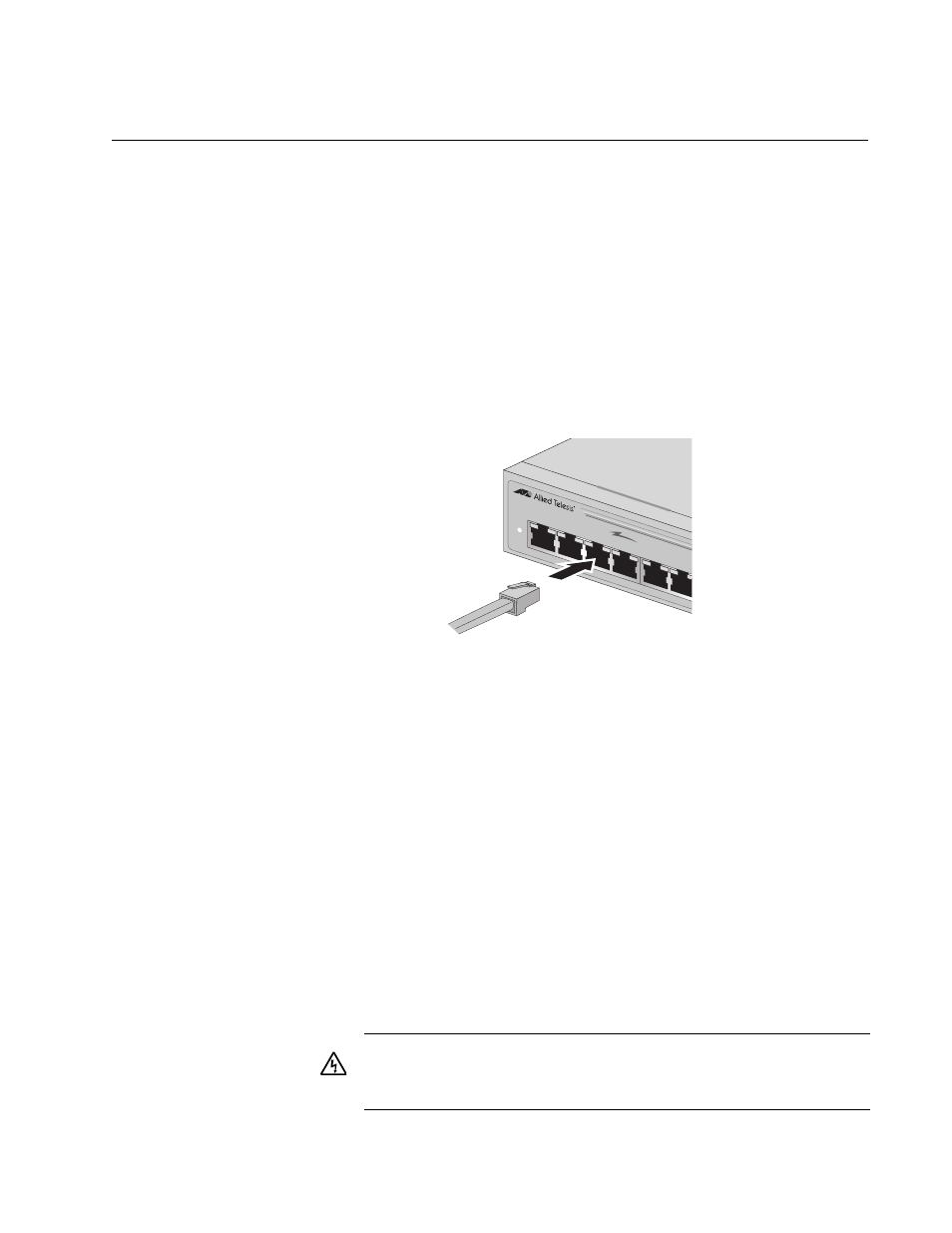

Figure 11. Connecting the Twisted Pair Data Cables
2. Power on the end nodes. For more information, refer to “Powering on
the Switch” on page 45.
When connecting a twisted pair cable to a port, observe the following
guidelines:
ˆ An RJ-45 connector should fit snugly into the port on the switch.
The tab on the connector should lock the connector into place.
ˆ The ports on the switch are auto-MDI/MDI-X. You can use either a
straight-through or crossover twisted pair cable to connect any type
of network device to a port on the switch.
ˆ The network should not contain data loops, which can adversely
affect network performance. A data loop exists when two or more
network devices can communicate with each other over more than
one data path.
AT-G
S900/
8POE
8 Port 10/100/1000 Mp
bs POE
Switch with 1
SFP Port POW ER
1
2
3
4
5
6
PoE
969
Warning: To reduce the risk of electric shock, the PoE ports on
this product must not connect to cabling that is routed outside
the building where this device is located.
E40
