5. Mount the switch on the wall using the wall mounting screws (not
provided), as shown in Figure 7.

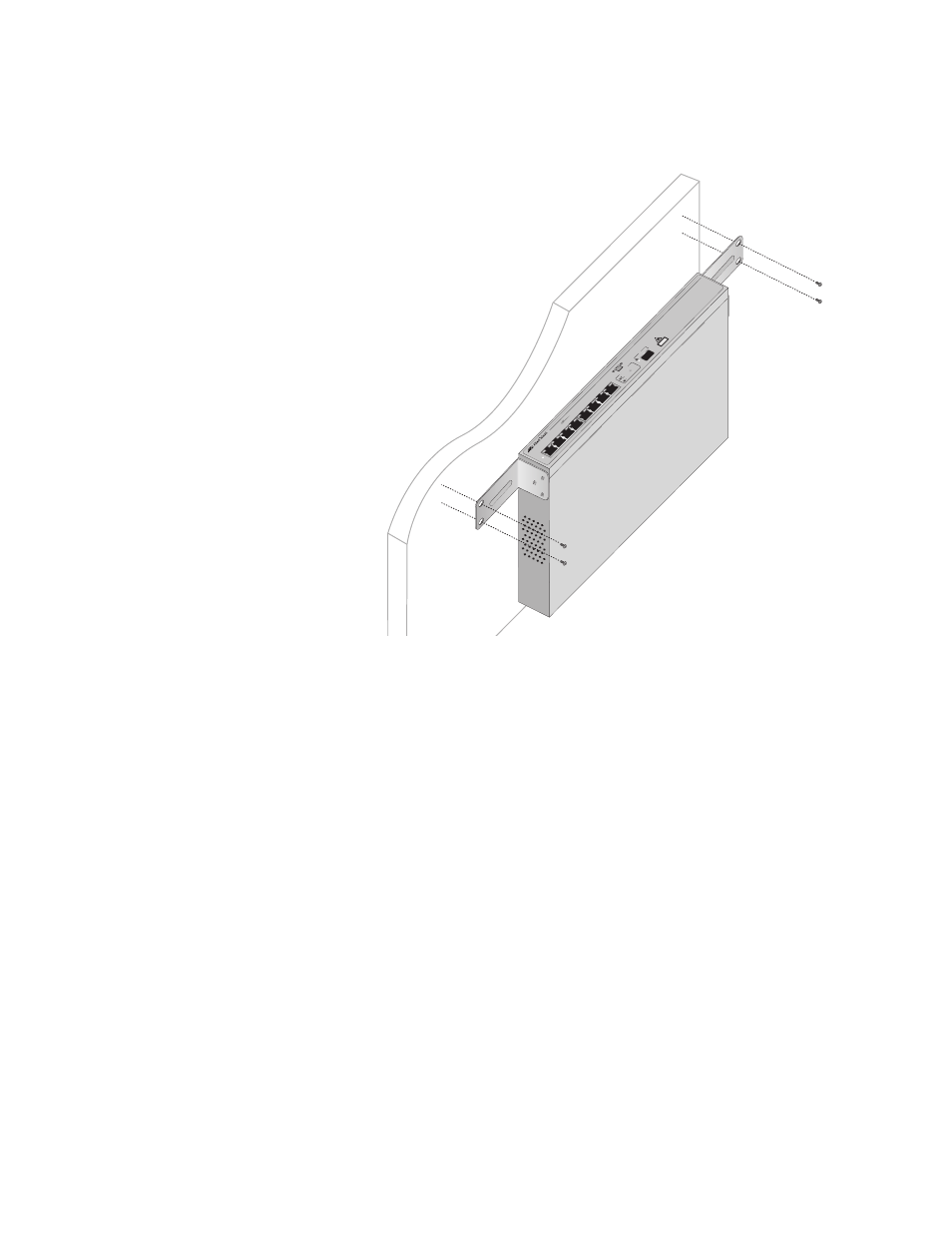

Figure 7. Mounting the Switch on the Wall
6. Refer to “Cabling and Powering on the Switch” on page 43 to complete
the installation.
7. To prevent accidental disconnection of the AC power cord, fasten the
power cord to the wall with the appropriate cable fastener hardware
(not provided) within six inches of the AT-GS900/8POE Gigabit
Ethernet switch back panel.
