AT-GS900/8POE Gigabit Ethernet Switch Installation Guide
35
Installing the Switch on a Table or Desktop
To install the switch on a table or desktop, perform the following
procedure:
1. Remove all the items from the packaging and store the packaging
material in a safe place. In the event a problem occurs and you need to
return the unit, please use as much of the original shipping material as
possible.
2. Attach the four self-adhesive rubber feet to the bottom of the switch, as
shown in Figure 5.

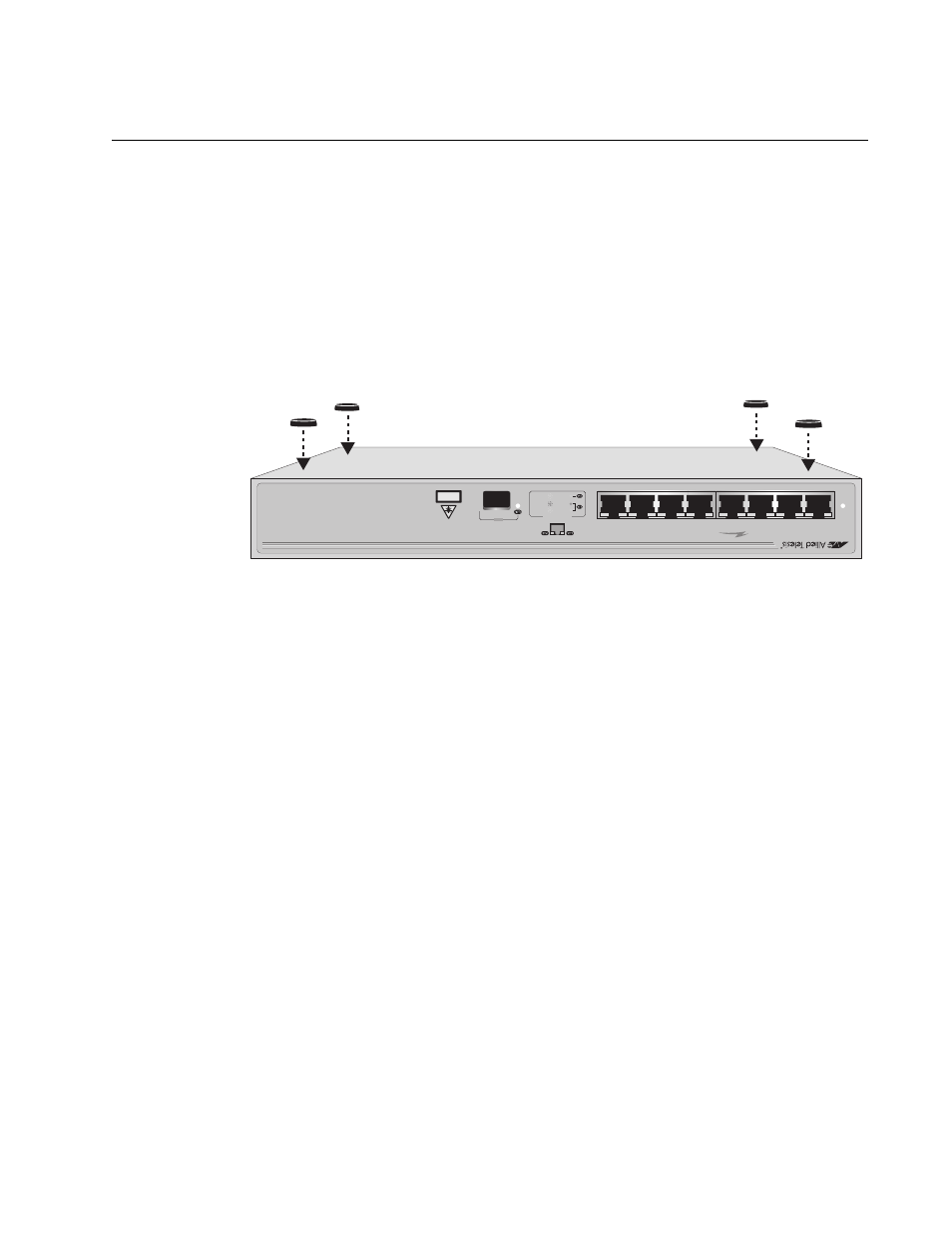

Figure 5. Attaching the Rubber Feet
3. Place the switch on a flat and secure surface, leaving ample space
around the switch for ventilation.
Refer to “Cabling and Powering on the Switch” on page 43 to complete
the installation.
