Work ports • : This column field allows the user to type in the total number of active port up
to four. With LACP static trunk group, e.g. you assign four ports to be the members of
a trunk group whose work ports column field is set as two; the exceed ports are standby/
redundant ports and can be aggregated if working ports fail. If it is a
static trunk group
(non-LACP), the number of work ports must equal the total number of group member
ports.
Select the ports to join the trunk group. The system allows a maximum of four ports to
•
be aggregated in a trunk group. Click and the ports focused in the right side will be
shifted to the left side. To remove unwanted ports, select the ports and click .
When LACP enabled, you can configure LACP Active/Passive status for each port on the
•
State Activity tab.
Click .
•
Use to delete Trunk Group. Select the Group ID and click . •
Add
Remove
Apply
Delete Delete

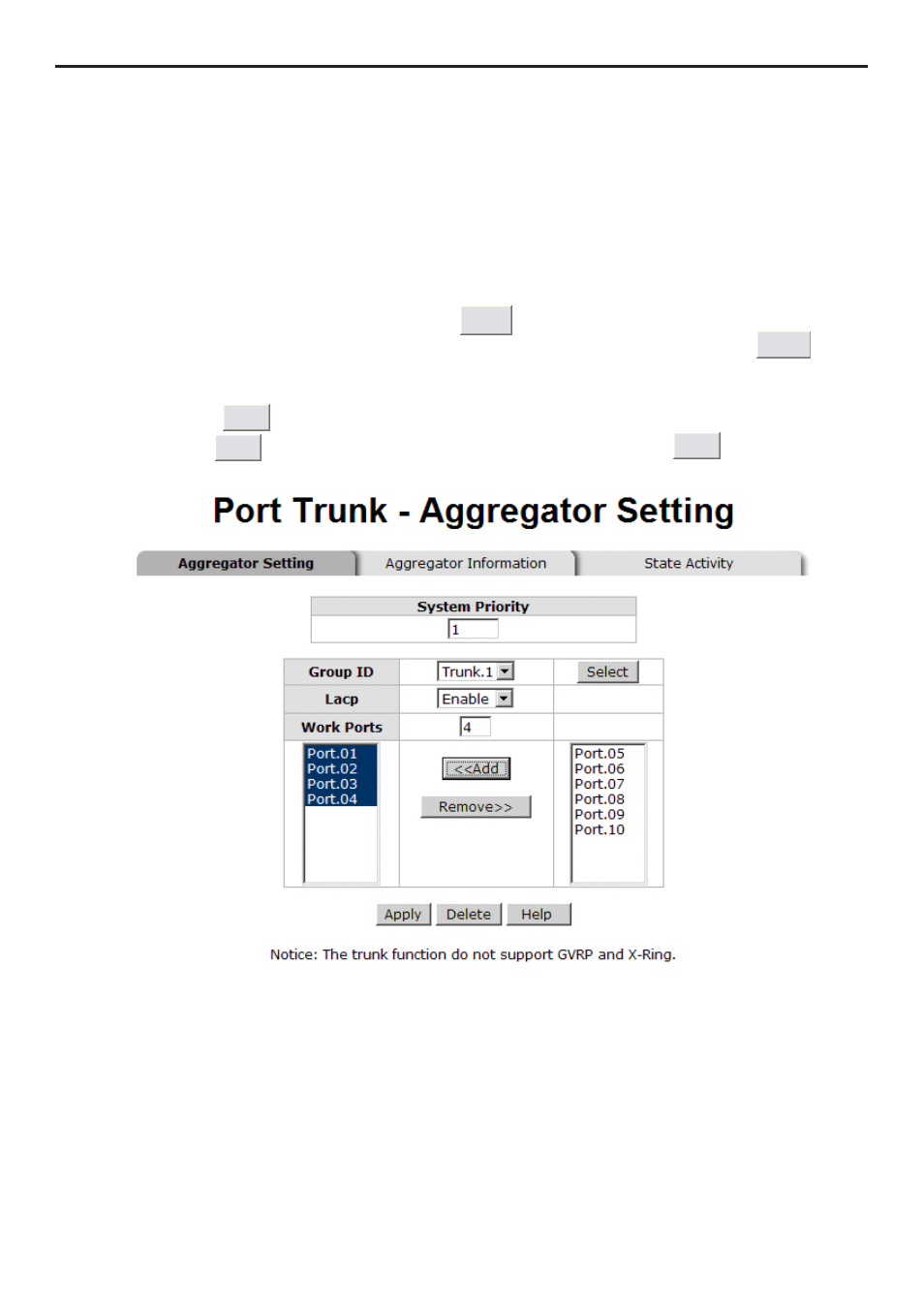

Port Trunk—Aggregator Setting interface (four ports are added to the left field with LACP enabled)
