Allied Telesis AT-GS950/10PS - Manual (Page 221)

AT-GS950/10PS Switch Web Interface User’s Guide
221
5. Click ADD.
The classifier entry is displayed in the table at the bottom of the page.
If you do not see you new entry, you may need to navigate to another
page of the table with the First Page, Previous Page, Next Page, and
Last Page buttons located below the table. An example of a classifier
table entry is shown in Figure 77.

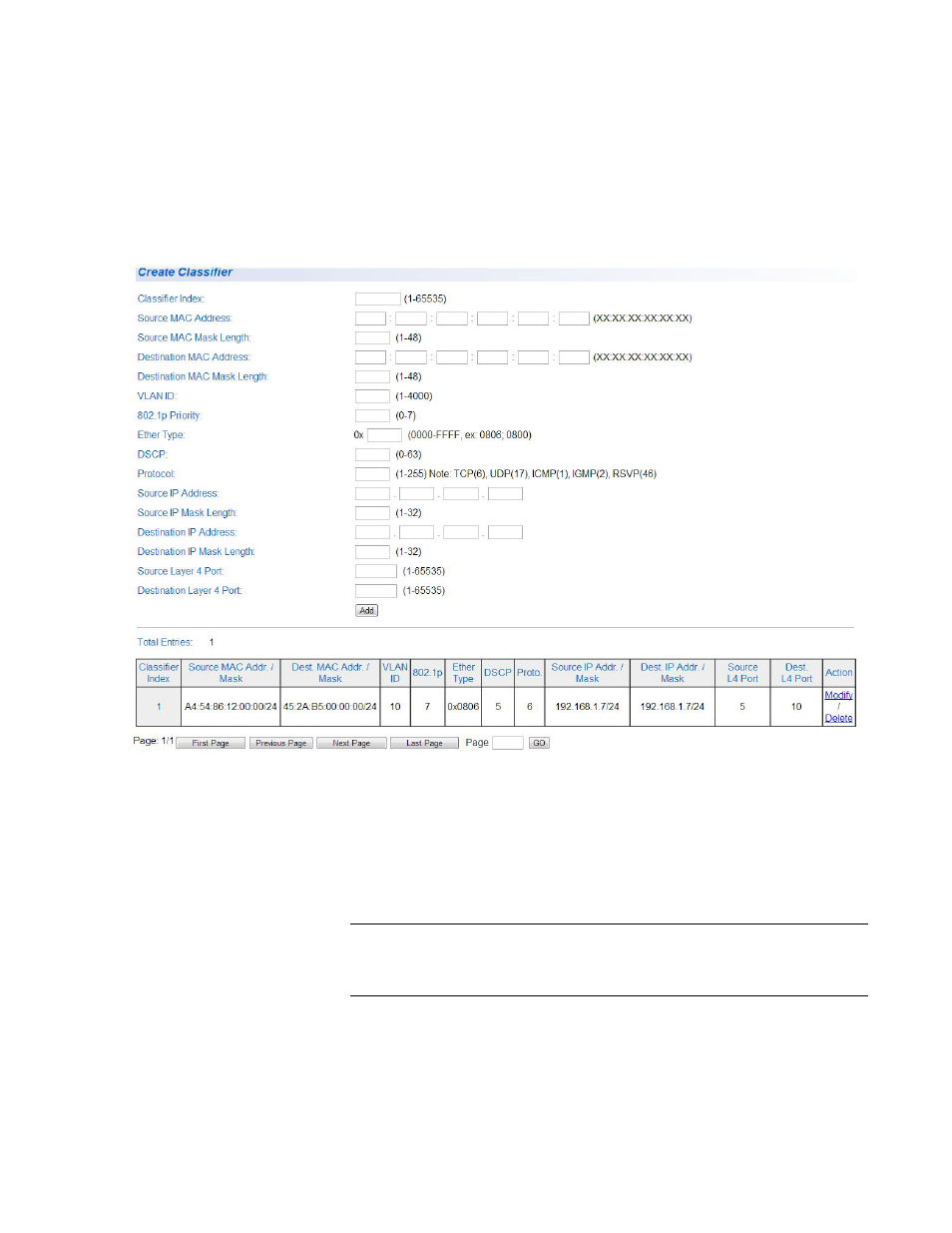

Figure 77. Create Classifier Example Page
6. From the main menu on the left side of the page, select Save
Configuration to Flash to permanently save your changes.
Modifying a
Classifier
To modify the entries for a Classifier, perform the following procedure:
Note
You must enter a classifier before you can modify it. See “Creating a
Classifier” on page 219 for more information.
1. From the main menu on the left side of the page, select the Access
Control Config folder.
The Access Control Config folder expands.
