Allied Telesis AT-GS950/10PS - Manual (Page 120)

Chapter 9: Loopback Protection
120
Configuration
To configure the Loopback Detection feature, perform the following
procedure:
1. From the main menu on the left side of the page, select Bridge.
The Bridge folder expands.
2. From the Bridge folder, select Loopback Detection.
A partial view of the AT-GS950/10PS Loopback Detection Page is
displayed. See Figure 37.

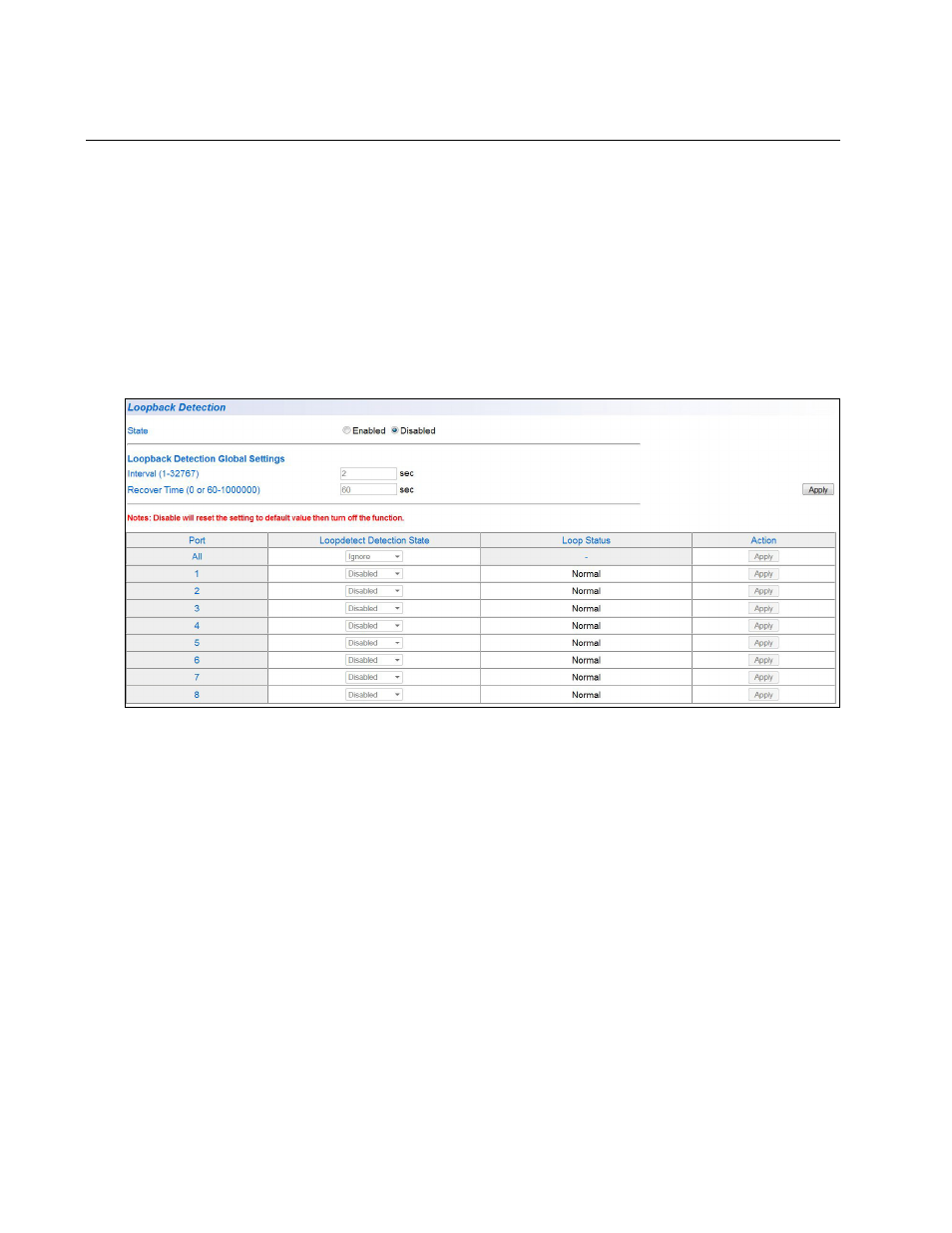

Figure 37. AT-GS950/10PS Loopback Detection Page
3. For the Loopback Detection State field a the top of the page, select
one of the following radio buttons:
Enabled: This selection enables the Loopback Detection feature
across the switch. This state must be enabled for the individual
port Loopback Detection State is effective.
Disabled: This selection disables the Loopback Detection feature
on the switch.
