AT-GS908M, AT-GS916M, and AT-GS924M Switches Installation Guide
53
Connectors and Port Pinouts
This section lists the connectors and connector pinouts.

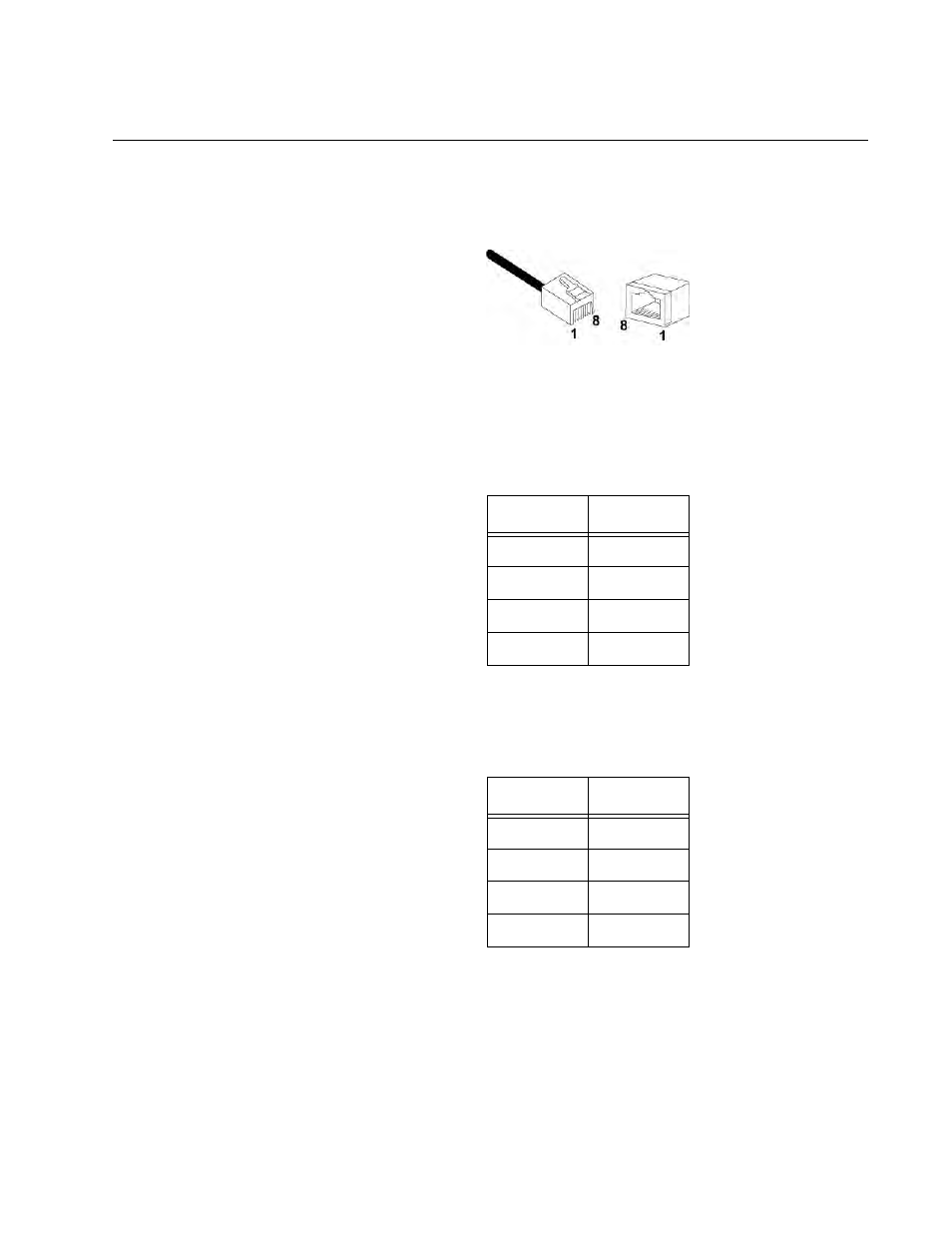

Figure 16 illustrates the pin layout for an RJ-45 connector and port.
Figure 16. RJ-45 Connector and Port Pin Layout
Table 14 lists the RJ-45 pin signals when a twisted-pair port is operating in
the MDI configuration.
Table 15 lists the RJ-45 port pin signals when a twisted-pair port is
operating in the MDI-X configuration.
Table 14. MDI Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1 TX+
2 TX-
3 RX+
6 RX-
Table 15. MDI-X Pin Signals (10Base-T or 100Base-TX)
Pin Signal
1 RX+
2 RX-
3 TX+
6 TX-
