Chapter 2 Product Overview
10 Reference Manual CoreModule 420
Major Integrated Circuits (ICs)
Table 2-1 lists the major integrated circuits, including a brief description of each, on the
CoreModule 420 and Figure 2-3 shows the location of the major chips.
Table 2-1. Major Integrated Circuit Descriptions and Function
Chip Type Mfg. Model Description Function
CPU (U14) STMicro-
electronics STPC
ATLAS Embedded CPU – The combination of
features in the CPU provide more than
just a processor. It also provides a
graphics controller, PCI controller,
EIDE controller, I/O features, and
power management capabilities. Embedded
CPU
Super I/O
Controller (U13) Standard
Microsystems
Corp. FDC37B782 Super I/O – This chip provides serial
and Floppy controllers Floppy/Serial
Controllers
Ethernet
Controller (U15) Intel 82551ER Ethernet – This chip provides the
10/100BaseT Ethernet function. Ethernet
U5
J3
JP2
J4
U6
U15
U16
D1 D2
U14
U8 U7 U9 U10
J8
JP7
JP8 JP
9
JP6
U3
6
U3
5
U3
U4
0
U4
1
U11
L5
J2
P1 J7
J10
J11
J9
U1
2
D8
U13
J13
J14
J5
JP4 JP5
9
10 10
2
4
3
1
1
2
1
2
JP1
Flash
Memory (U6)
Ethernet
Controller (U15)
Super I/O (U13)
CPU (U14)
SDRAM
Memory
(U7-U10)
Ethernet
Magnetics (U16)
CM420RFM_01a

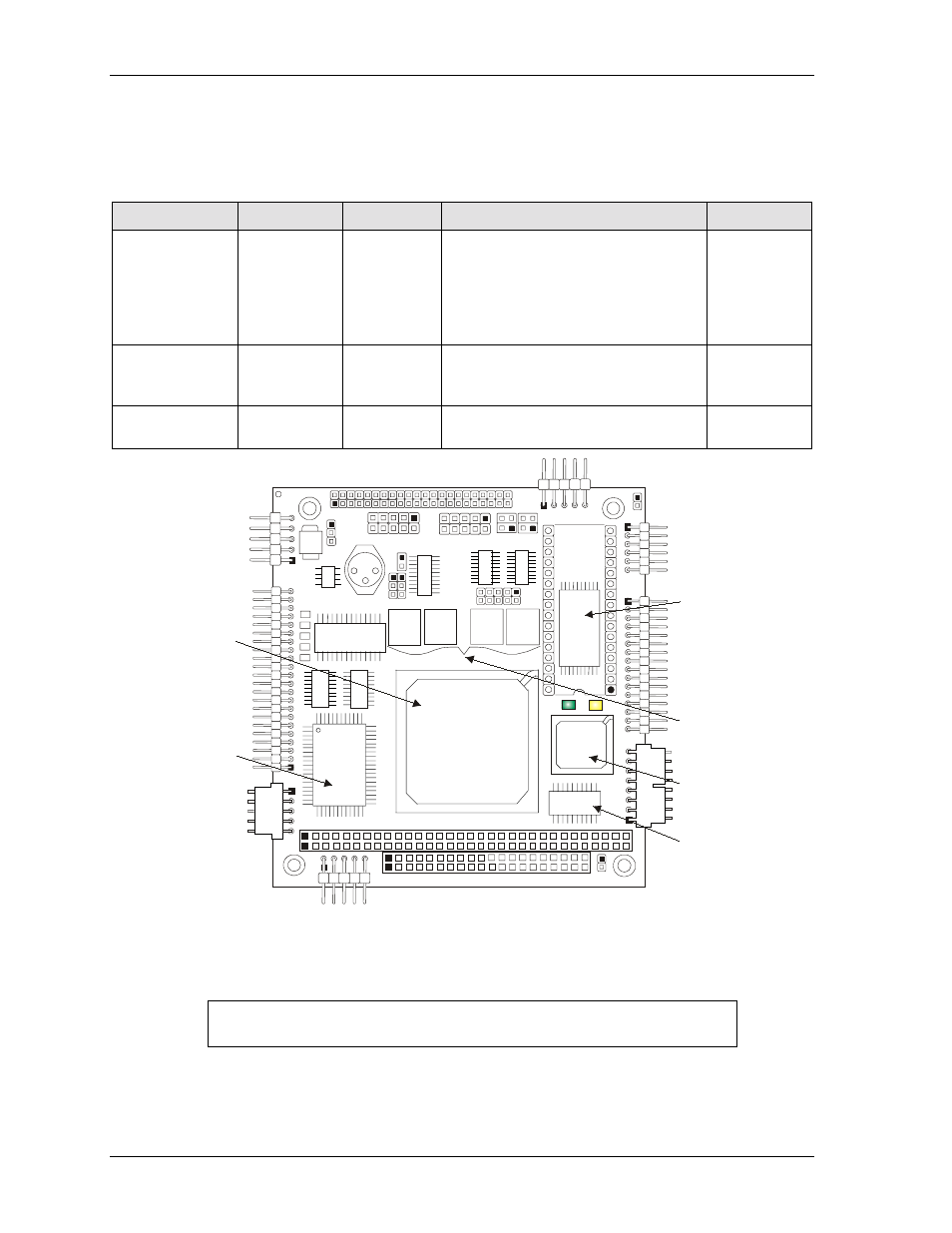

Figure 2-3. CoreModule 420 (Top View)
NOTE Pin 1 is shown as black square or round black pin in
connectors and jumpers in all illustrations.
