MAINTENANCE

RX96 03/09

Maintenance Section 5-21

© 2009 Alamo Group Inc.

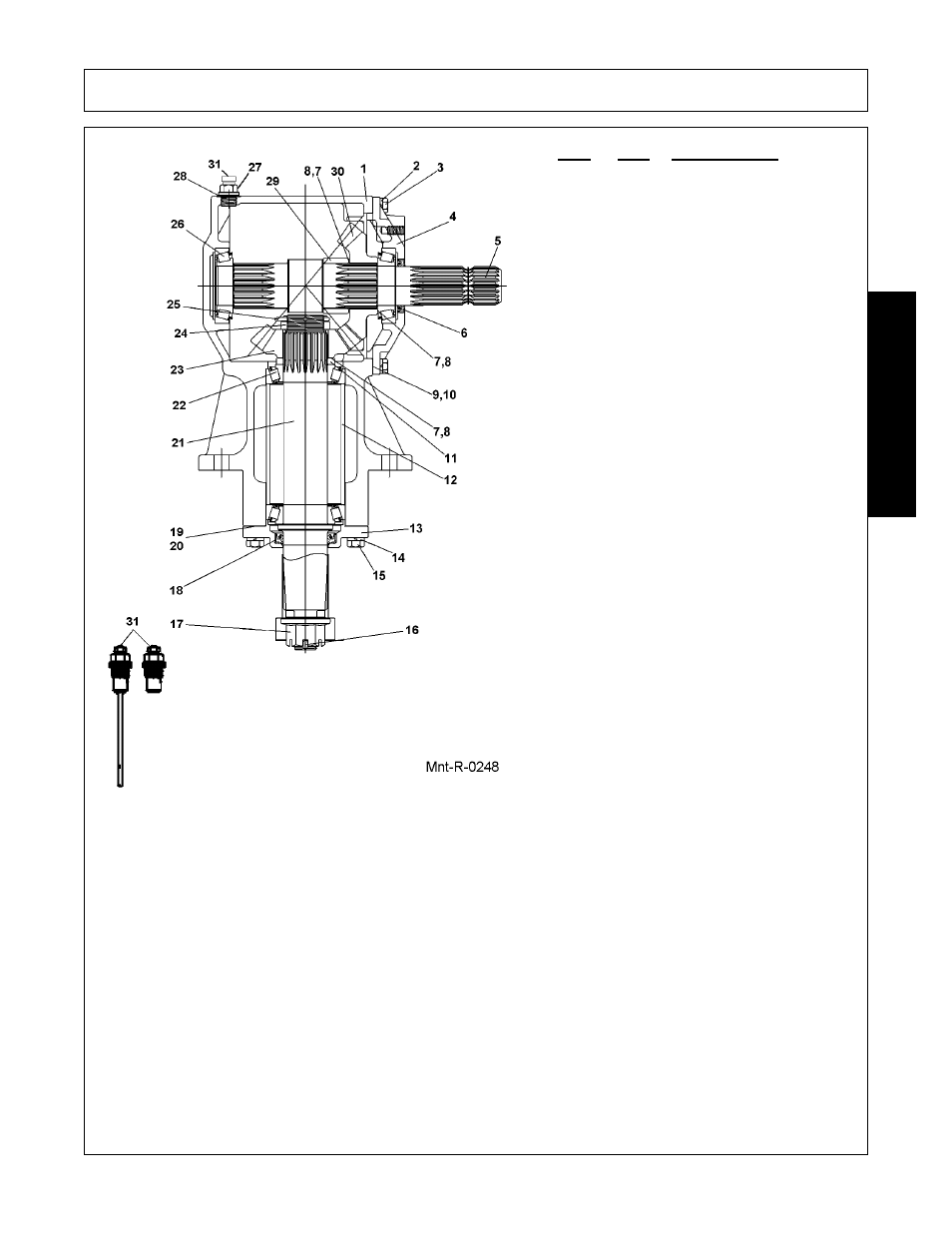

MAINTENANCE

TEM

QTY

DESCRIPTION

1.

1

Housing

2.

1

Lockwasher

3.

16

Bolt

4.

1 Input

Cap

5.

1

Input Cap

6.

1

Input Seal

7.

1

Gear Adj. Shim .30

8.

1

Gear Adj. Shim .50

9.

2

Input Cap Gasket .10

10.

2

Input Cap Gasket .25

11.

1

Gear Mounting Spacer

12.

1

Output Spacer

13.

1

Output Cap

14.

1

Lockwasher

15.

3

Bolt

16.

1

Cotter Pin

17.

1

Flanged Nut

18.

1

Output Oil Seal

19.

Output Cap Gasket .10

20.

Output Cap Gasket .25

21.

Output Shaft

22.

Bearing Assembly

23.

17 Tooth Gear

24.

Bearing Adjust Nut

25.

Cotter Pin

26.

Bearing Assembly

27.

M18 Drain Plug

28.

Sealing Washer

29.

Spacer

30.

14 Tooth Gear

31.

M18 Vent Plug
