UHD F9000 and S9 series models

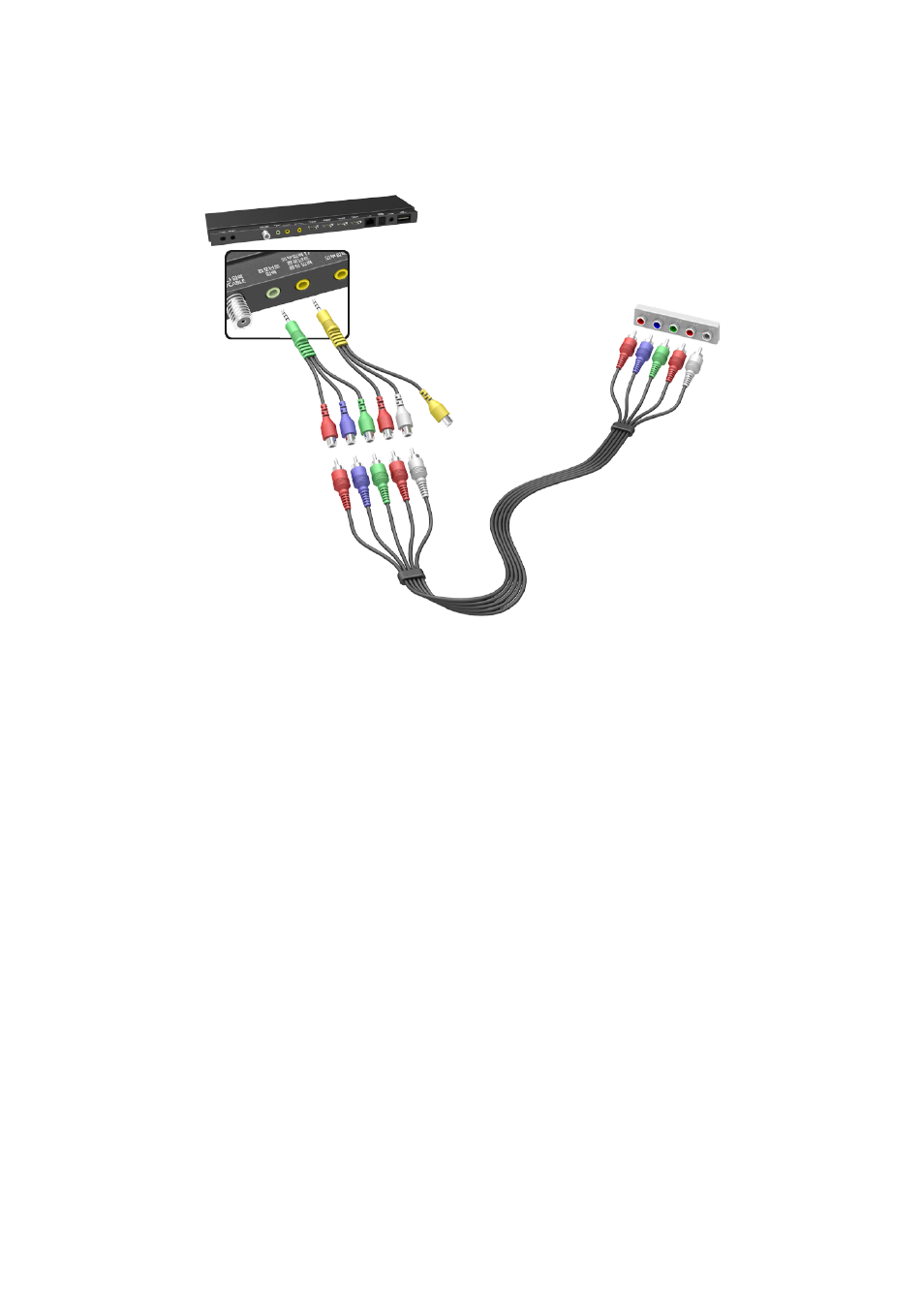

Refer to the diagram and connect the component video and audio cables to the component adapter
(accessory) and to the One Connect component input connectors. Make sure the cable colors match
the connector colors.
