3 Hardware configuration 92
Note: If you are not installing a replacement device, install a
metal EMI shield on the bay to maintain proper cooling and EMI
shielding.
10 Remove the new diskette drive from its protective wrapper and
place it on an antistatic surface.
11 Record the drive model and serial numbers in your equipment log.
For a sample equipment log sheet, refer to page 195.
12 Set any jumpers or switches according to the drive manufacturer
instructions.
13 Position the new drive with the component side up and slide the
back of the drive under the ears at the back of the bracket.
14
Label Description
A Power cable
B Data cable
C Screw

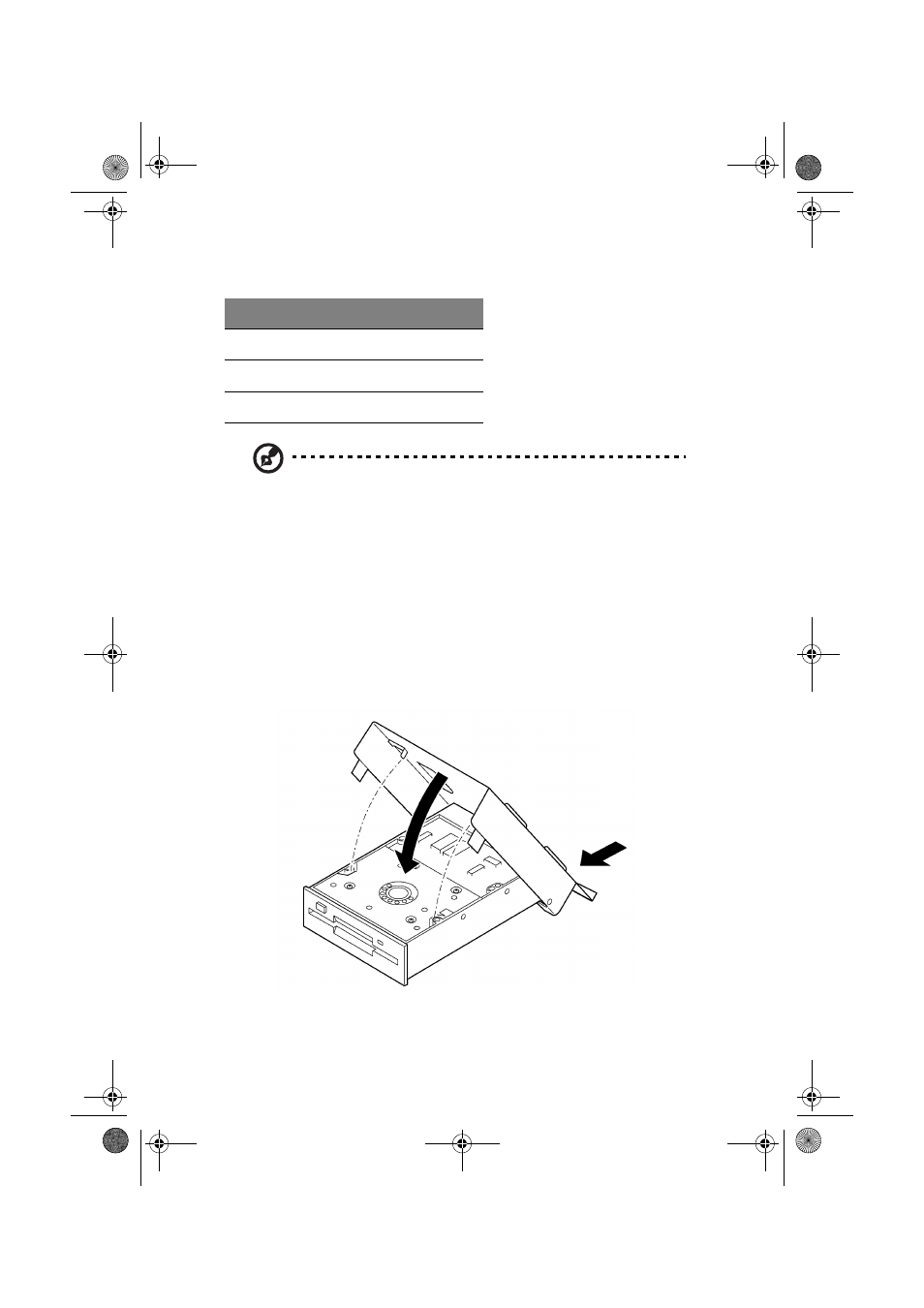

Figure 49 - Inserting a diskette drive into the bracket
