Page 35: Changing the electronics labels, See figure 8-1 and table 8-5), Figure 8-1, Figure 8-1)
CS475, CS476, and CS477 Radar Water Level Sensor
1
2
3
3
4
5

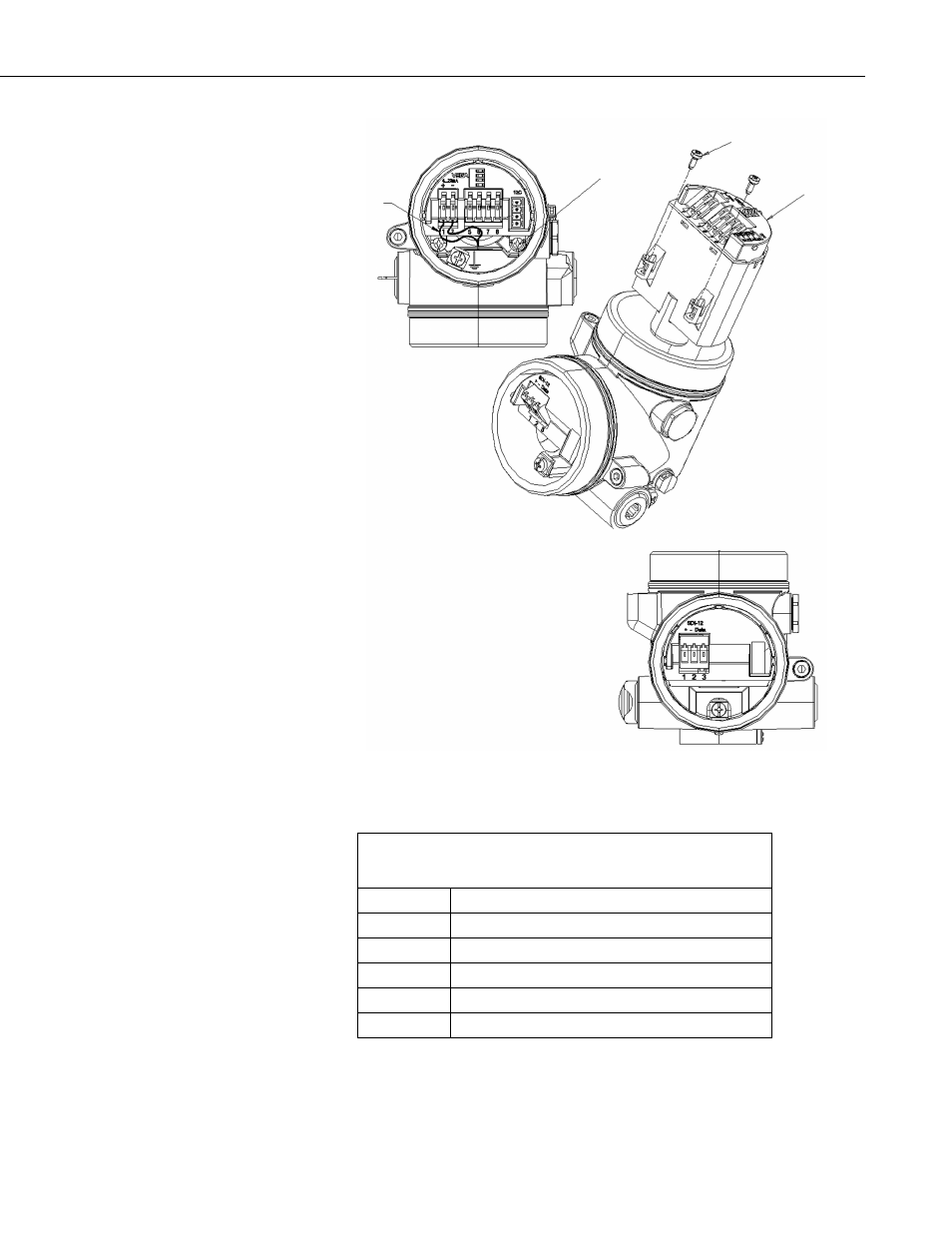

FIGURE 8-1. Changing the electronics (see TABLE 8-5 for label
descriptions)
TABLE 8-5. Description of Changing the Electronics
Labels
Description
1 Red
Wire
2
Housing Top View
3
Screws to Secure Electronics to Housing
4 Electronics
5
Housing Side View
8.3 Maintenance
The sensors are maintenance free under normal operation.
