Campbell Scientific CS125 Present Weather Sensor User Manual
Page 21
User Guide
13

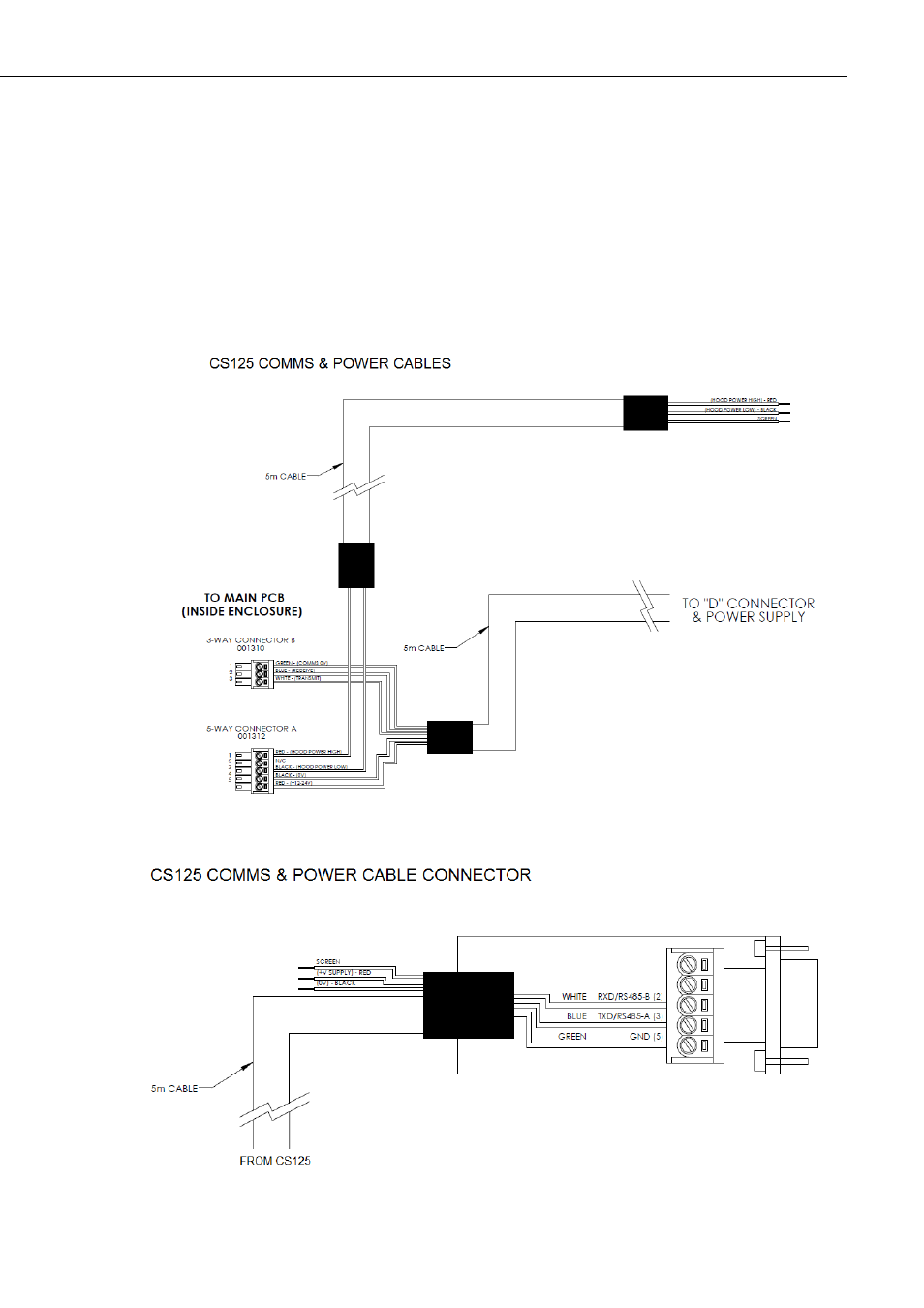

8.1 CS125 recommended wiring using Campbell Scientific cables
(this cable is supplied already connected as standard)
The CS125 is provided pre-wired with a default 5 m power and communications
cable which is terminated at one end with a 9 pin D-connector (DB9). The D-
connector can be connected directly to a PC or to a datalogger such as the
Campbell Scientific CR1000 using a suitable interconnecting cable such as the
SC110. If another type of connection is required then the D-connector should be
removed.
