Model 109 Temperature Probe

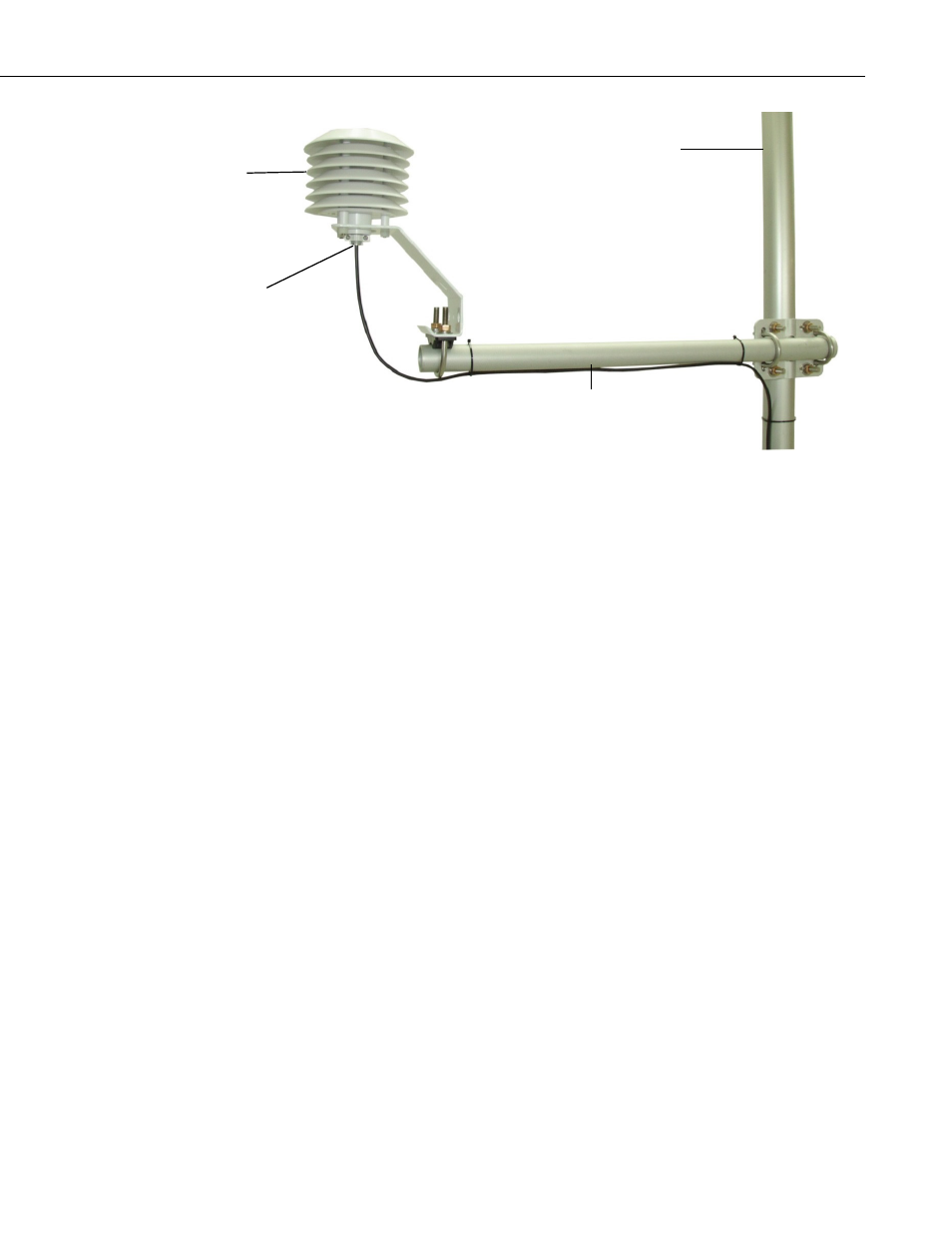

FIGURE 7-2. 109 and 41303-5A Radiation Shield on a CM200 Series

Crossarm

The 109 is held in the 41303-5A radiation shield by a mounting clamp at the

bottom (FIGURE 7-2). Loosen the mounting clamp screws, and insert the

probe through the clamp. Tighten the screws to secure the sensor and route the

sensor cable to the instrument enclosure. Secure the cable to the tripod or

tower using cable ties.

7.4 Water Temperature Installation

109 probes can be submerged to 15 m (50 ft) or 21 psi. The 109 is not

weighted, so a weighting system should be added, or the probe secured to a

submerged object such as a piling.

7.5 Soil Temperature Installation

The 109 tends to measure the average temperature over its length, so burying

the probe such that the measurement tip is horizontal to the soil surface at the

desired depth is usually preferred. The maximum burial depth for soil that

could become saturated with water is dictated by the maximum water pressure

allowed for the sensor, which is 21 psi.

One or two coils of cable should also be buried in a shallow installation. Burial

of some cable mitigates the effect of solar heating of the above ground cable on

the temperature measurement.

Placement of the cable inside a rugged conduit may be necessary for long cable

runs, especially in locations subject to digging, mowing, traffic, use of power

tools, or lightning strikes.

41303-5A

109

Tripod Mast

or Tower Leg

CM200 Series Crossarm

9
