Model 109 Temperature Probe

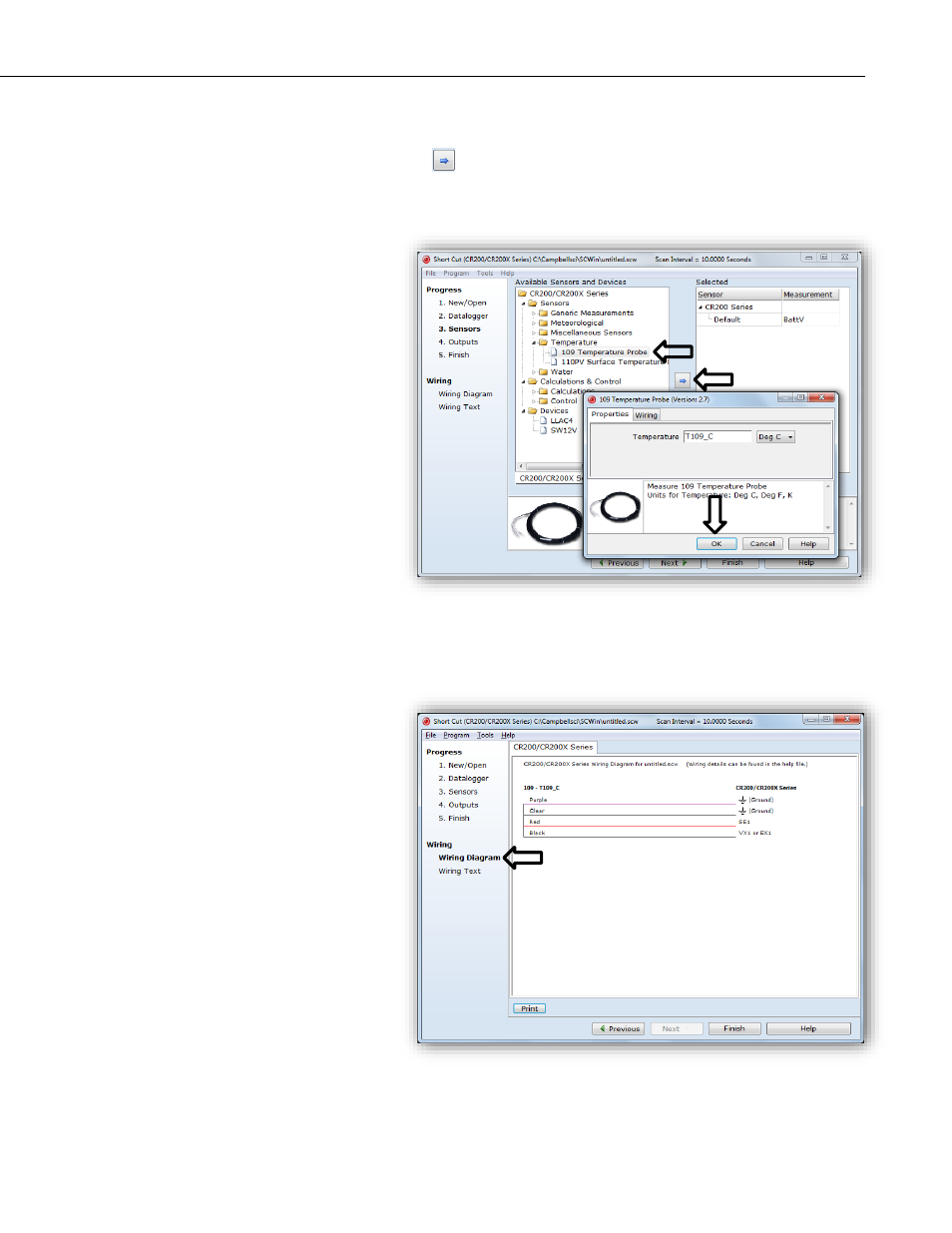

5. Under the

Available Sensors and Devices list, select the Sensors folder,

then select the

Temperature sub-folder. Select 109 Temperature Probe.

Click

to move the selection to the

Selected device window. Data

defaults to degree Celsius. This can be changed by clicking the

Deg C box

and selecting

Deg F, for degrees Fahrenheit, or K, for Kelvin.

6. After selecting the sensor, click at the left of the screen on

Wiring

Diagram to see how the sensor is to be wired to the datalogger. The

wiring diagram can be printed out now or after more sensors are added.
