Model 109 Temperature Probe

7.3 Air Temperature Installation

For air temperature measurements, locate probes over an open level area at

least 9 m (EPA) in diameter. The surface should be covered by short grass or

the natural earth surface where grass does not grow. Probes should be located

at a distance of at least four times the height of any nearby obstruction, and at

least 30 m (EPA) from large paved areas. Sensors should be protected from

thermal radiation, and adequately ventilated.

Standard air temperature measurement heights:

1.25 to 2.0 m (WMO)

2.0 m (EPA)

2.0 m and 10.0 m for temperature difference (EPA)

When exposed to sunlight, the 109 should be housed in a 41303-5A or 41303-

5B six-plate solar radiation shield. The white color reflects solar radiation, and

the louvered construction allows air to pass freely through, thereby keeping the

probe at or near ambient temperature. The 41303-5A attaches to a crossarm,

mast, or user-supplied pipe with a 2.5 to 5.3 cm (1.0 to 2.1 inch) outer

diameter. The 41303-5B attaches to a CM500-series pole or a user-supplied

pole with a 5.1 cm (2.4 inch) outer diameter.

Tools required for installing a radiation shield to a tripod or tower include:

1/2 inch open end wrench

small screw driver provided with datalogger

small Phillips screwdriver

UV resistant cable ties

small pair of diagonal-cutting pliers

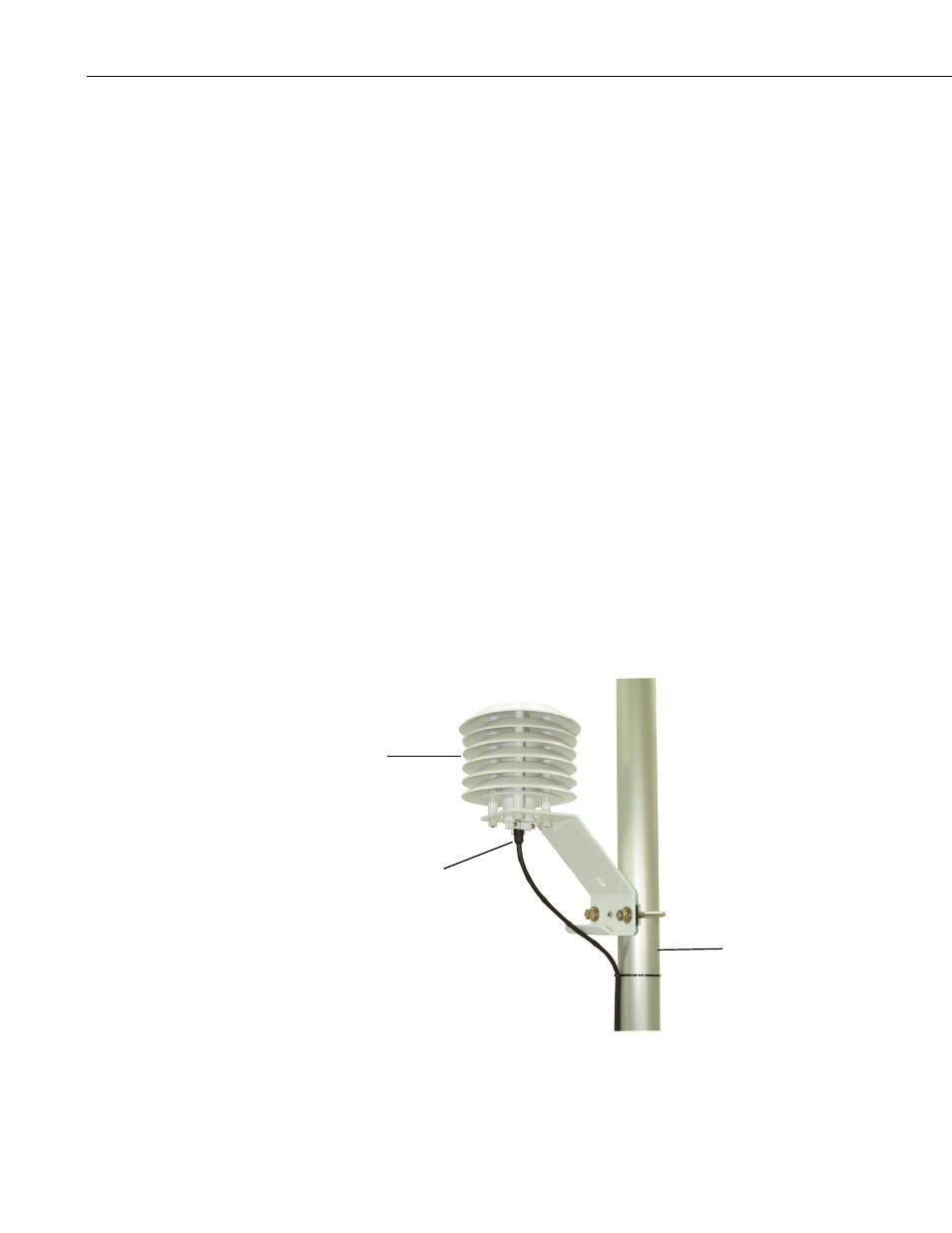

FIGURE 7-1. 109 and 41303-5A Radiation Shield on a Tripod Mast

41303-5A

109

Tripod Mast

or Tower Leg
