Operating Instructions Flytec 6005/6010

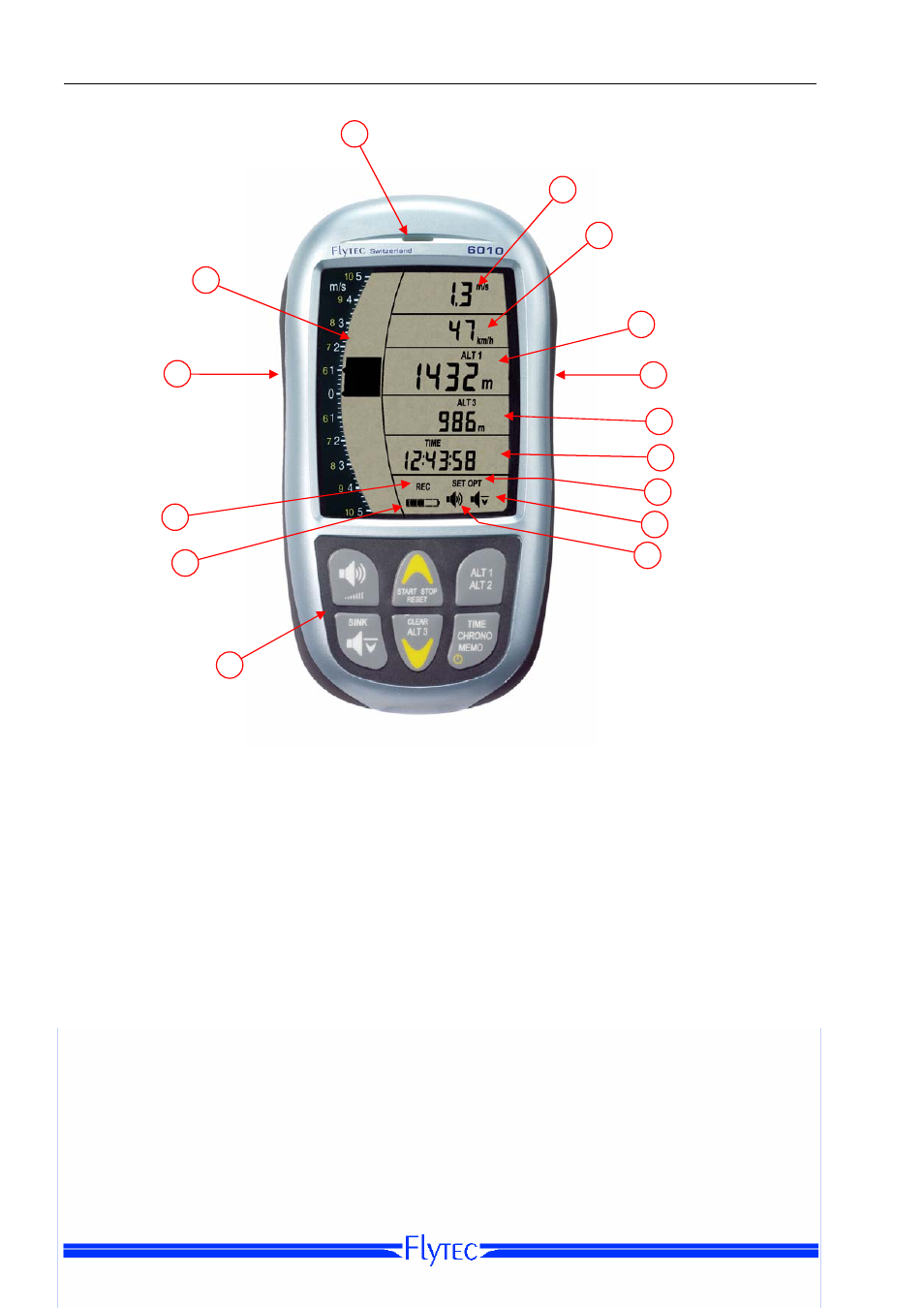

Instrument layout
15
1
2
14
3
13 4
5
6
7
1 Integrated Digital Vario Display
2 Speed/Temperature Display
3 Barometric Altitude 1 or Altitude 2
4 PC Interface Port (6010 only)
5 Relative Altitude 3
6 Clock/Stopwatch/Flight Timer
7 Set/Opt Mode Indicator
8 Sink Alarm Indicator
9 Vario Volume Indicator
10 Keypad
11 Battery
Status
12 Record Indicator (Flight Acceptance)
13 Speed Sensor Jack
14 Analog Vario Display
15 Piezo
Speaker
