22
Operating Instructions Flytec 6005/6010

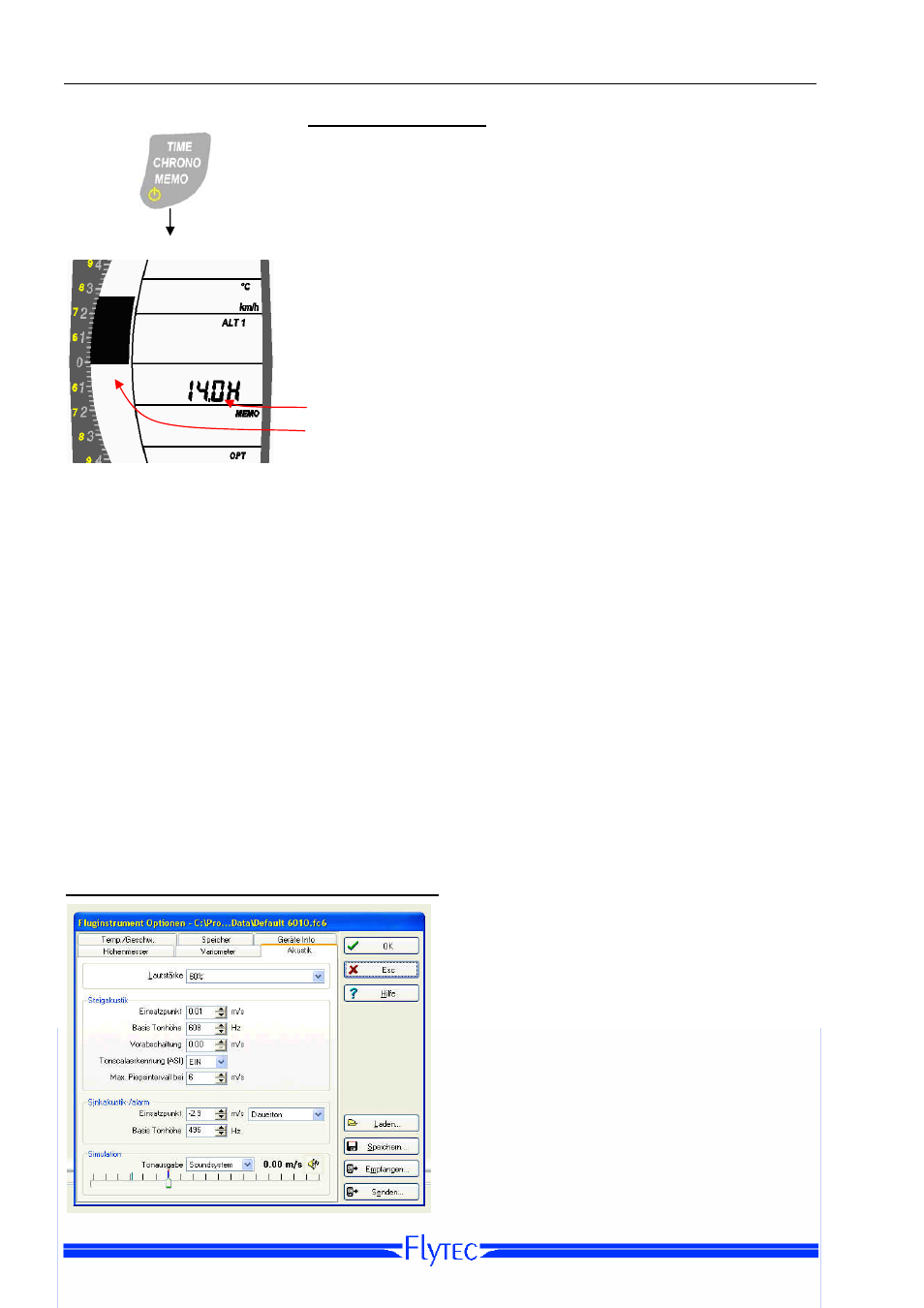

Option-Mode MEMO
Press 3 sec.
From MEMO Set-Mode, press the MEMO Key for three
seconds to bring the instrument into MEMO Option-Mode.
The parameters to be recorded on the barogram are set here.
Use the Arrow Keys to cycle through the combinations:
- ALT1: only Altitude 1
- ALT1 and °F: altitude and temperature
- ALT1 and mph: altitude and speed
• Available recording time with the actual recording
• Capacity and the chosen parameters
Connection to a PC [Model 6010]
Using FlyChart and a data cable you can download the 6010 Flight memory to a PC
where you can view and print recorded flights. Data transmission (upload and download)
is initiated with the Download button in FlyChart, and the 6010 must be off. FlyChart
v4.53 or later is required for use with the 6010 and is available for download at
www.flytec.com. Please follow the download and installation instructions found there.
After installing FlyChart you will notice that there is a comment in the FlyChart window that
says “No License” and the number of flights remaining. Your 6010 came with a license
code that will validate your copy of FlyChart. The instructions for installing the license
code are contained in the Readme_E file in the FlyChart directory. Once the license
number is properly installed the “no license” comment will be removed. The 6010 is a
serial device and comes with a cable to connect the 6010 to a PC COM port. If your PC
lacks a COM port then you must use a USB adapter available from Flytec USA, and from
computer and office retailers.
PC Instrument Configuration [Model 6010]
You can also conveniently configure all of
the user settings of the 6010. Setting up
your instrument with FlyChart is very
convenient, and multiple profiles can be
created, saved and transferred. There are a
number of additional 6010 user settings that
can be set in FlyChart (e.g. automatic shut-
off time, altitude threshold for declaring the
beginning of a flight, etc.) that cannot be set
from the 6010 Set- or Option-Mode.
