Operating Instruction Flytec 6005/6010 21

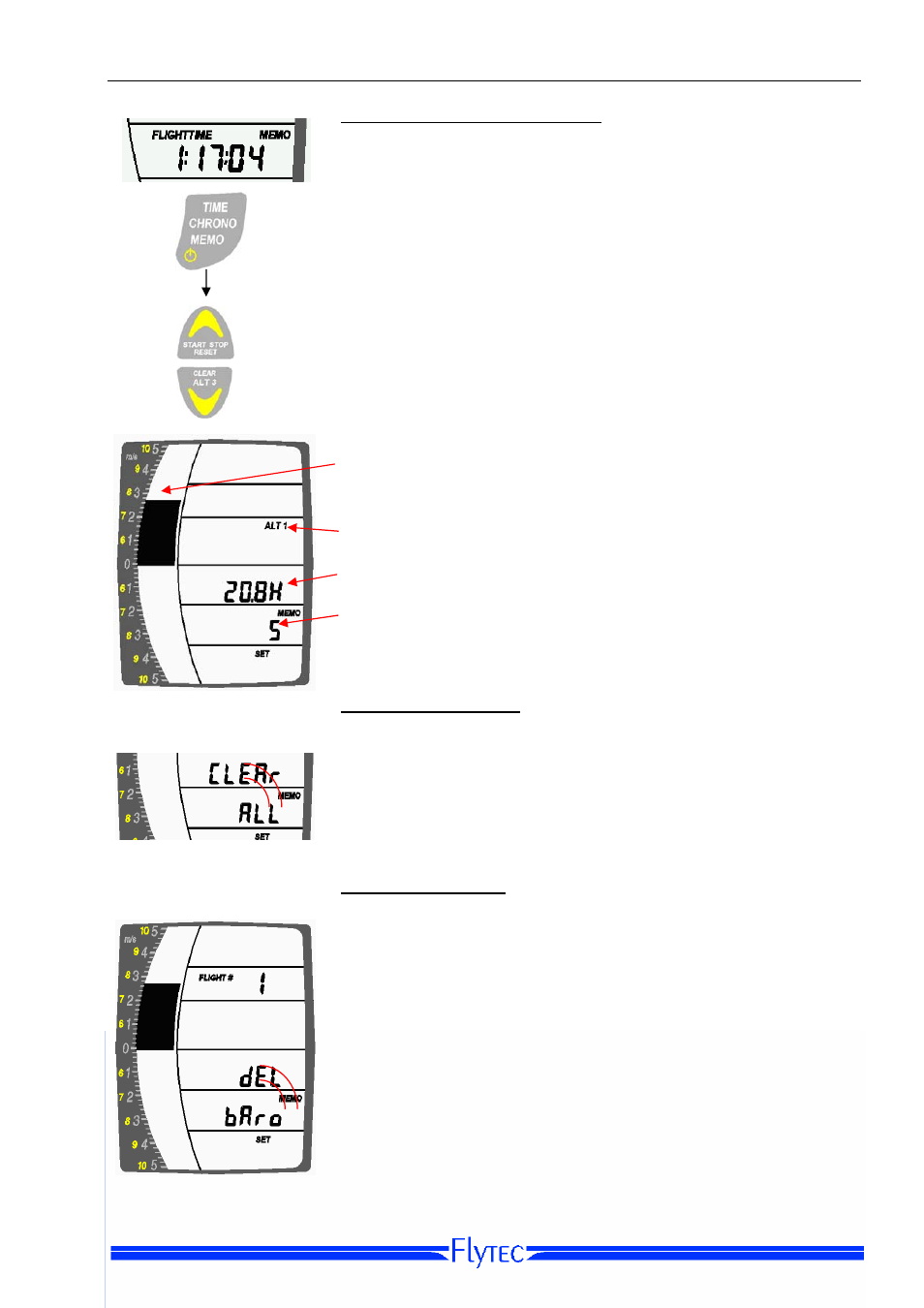

Set-Mode MEMO [Model 6010]
While in MEMO display, use a 3-second press on the MEMO
Key to bring the instrument into Memory Set-Mode. The
display will now show the parameters to be recorded, the
recording time in hours, and the record interval. Note: The set
mode is only active if l no flight acceptance is present.
Press 3 sec.
Use the Arrow Keys to scroll through the possible record
intervals and clearing options: 1, 5, or 15, CLEAR ALL, OFF
and DEL BARO (visible only if you have recorded
barograms). If you select
OFF , the barograph recording feature
will be disabled and only maximum values will be stored in the
flight log.
• Barograph
storage capacity. The scale will empty as the
barogram memory is filled. After that, the oldest flights will
be overwritten.
• The parameters to be recorded are set in MEMO Option-
Mode (see below).
• Remaining barograph record time. Takes into account the
chosen recording interval and available storage capacity.
• Recording interval in seconds.
Clear All Barograms
As you cycle through the choices in MEMO Set-Mode using
short presses on the arrow Keys, you arrive at CLEAR ALL,
which allows you to delete all the recordings and the logbook.
To confirm, press the ALT1/ALT2 Key for at least three
seconds until you hear the confirmation tone.
Delete a Barogram
If you have barogram recorded in the 6010 and you cycle
through the choices in MEMO Set-Mode with short presses on
the arrow Keys you will arrive at DEL BARO, shown with the
flight number of your most recent flight that has a barogram
(i.e., if no barograph recording was made for Flight #1, Flight
#2 will appear, and so on). To delete this flight, press the ALT
1/ALT2 Key for at least three seconds.
No single flights can be deleted directly from the logbook. You
can only delete your most recent barogram; barograms
recorded later in the logbook cannot be deleted before those
recorded earlier have been deleted.
