2.5.4 2.5.4 2.5.4 2.5.4 2.5.4 PCI slots PCI slots PCI slots PCI slots PCI slots

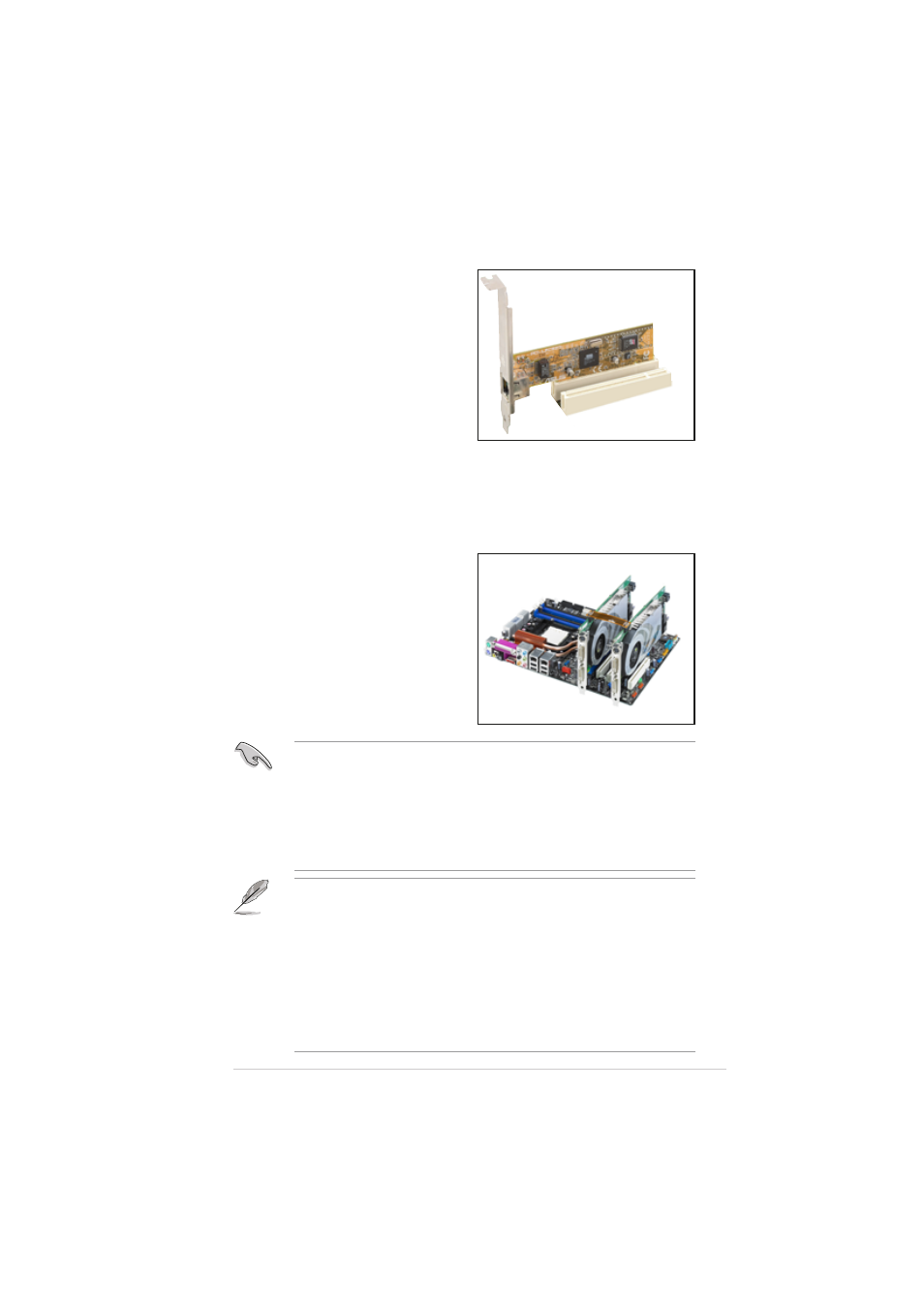

The PCI slots support cards such as a
LAN card, SCSI card, USB card, and
other cards that comply with PCI
specifications.
2.5.5 2.5.5 2.5.5 2.5.5 2.5.5 PCI Express x4 slot PCI Express x4 slot PCI Express x4 slot PCI Express x4 slot PCI Express x4 slot
This motherboard PCI Express x4 slot supports x 4 x 4 x 4 x 4 x 4 or x 1 x 1 x 1 x 1 x 1 network cards,
SCSI cards and other cards that comply with the PCI Express specifications.
2.5.6 2.5.6 2.5.6 2.5.6 2.5.6 Two PCI Express x16 slots Two PCI Express x16 slots Two PCI Express x16 slots Two PCI Express x16 slots Two PCI Express x16 slots
This motherboard supports two
SLI-ready PCI Express x16 graphic
cards that comply with the PCI
Express specifications. The figure
shows two graphics card installed on
the PCI Express x16 slots.
• In Single Card mode, you may use either the blue or black slot for
PCI Express x16 graphics cards.
• In SLI mode, the PCI Express x16 slots work at the full bandwidth of
PCI Express x16 on each slot for a combined bandwidth of x32.
• Due to NVIDIA nForce4 SLI x16 chipset limitation, if you install a
Dual-GPU graphics card on the blue x16 slot, it runs at x8 speed for
one of the two GPUs.
• Due to NVIDIA nForce4 SLI x16 chipset limitations, this motherboard
does not support two dual-GPU graphics cards (total 4 GPUs)
running in SLI mode.
• Install a rear chassis fan to the chassis (CHA_FAN1) connector when
using two graphics cards for better thermal environment.
See page 2-30 for details.
• Connect a 4-pin power plug from the PSU to the EZ Plug™ connector
when:
1. Using two graphics cards and a 20-pin ATX power supply.
2. The graphics cards do not have auxiliary power plugs.
