3 System upgrade 82
5 Close the clips.
6 Replace the memory boards and memory air baffles.
7 Observe the post-installation instructions described on page 34.
Installing the RAID cache
1 Observe the ESD precautions and pre-installation instructions
described on page 33.
2 Remove the memory boards or memory air baffles from DIMM
slots C and D. See “Cold Removal of Memory Board” on page 70
and “Removing a memory board air baffle” on page 42.

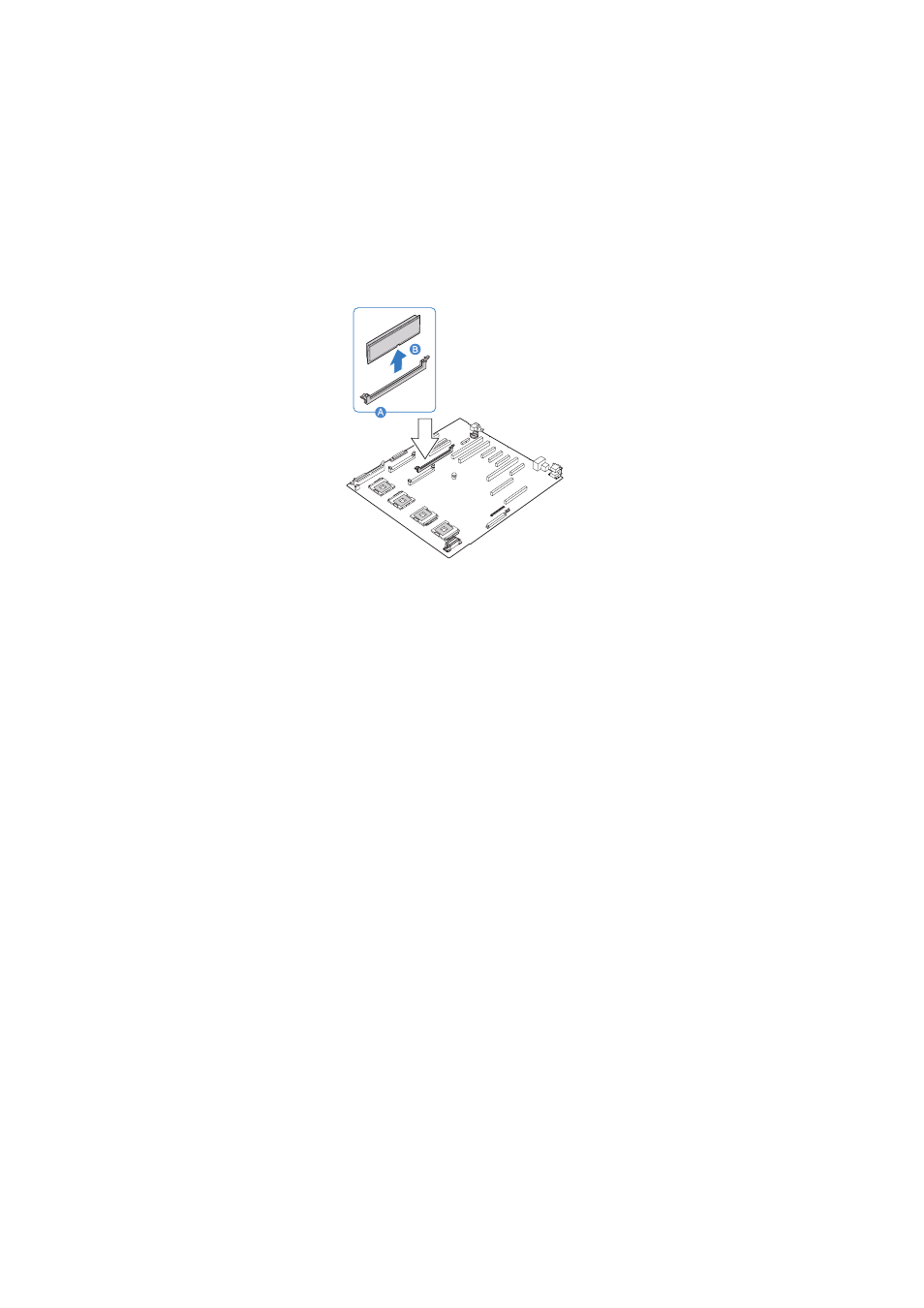

3 Locate the RAID cache memory (DDR-2) slot on the mainboard.
4 Open the clips on the slot.
5 Align then insert the RAID cache into the slot (A).
6 Press the holding clips inward to lock the RAID cache in place (B).
