2.1.4 Applying Power through the DB-9 Connector
Power may be provided to the module by pin 9 of the DB-9 connector instead of through the 4-pin SIP.
If power is to be applied using the DB-9, it must be a regulated 5Vdc supply.
NOTE This applies to wide voltage units (V and VPT extensions) as well as to standard
5volt units.

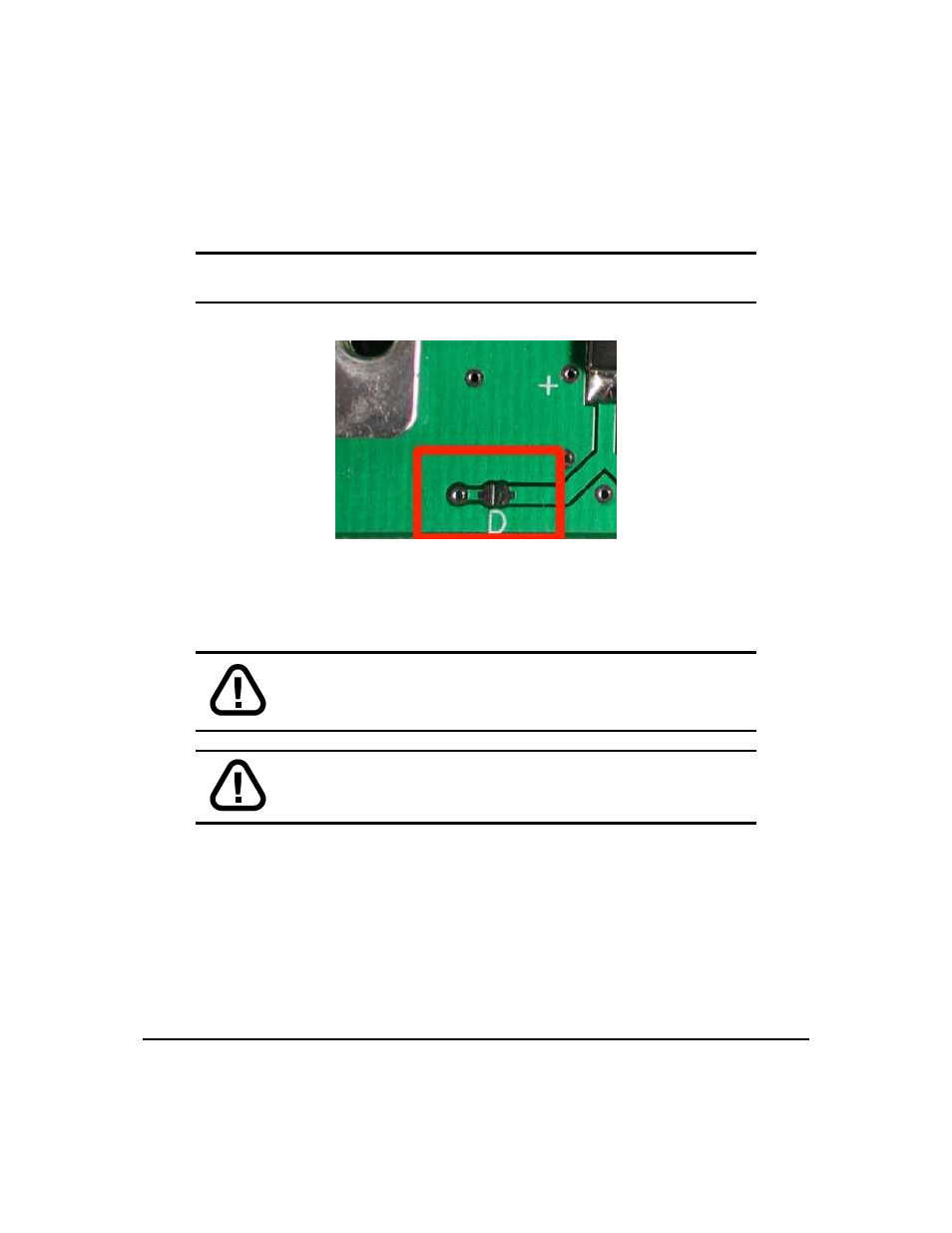

Figure 8: DB-9 Power
To use pin 9 as the power source, the user must solder the 5 volt jumper pad beside the DB-9 connector.
WARNINGS
• Do not apply power to both pin 9 AND the 4 pin SIP header.
WARNING Application of a voltage to pin 9 greater than 5.25 volts
will cause immediate destruction of unit and result in a void Manufac-
turer’s Warranty.
2.2 RS-232 Communications
The RS-232 connector on the PC cable is wired so that a standard ’straight through’ 9 pin D-sub cable
may be used to connect the module to a standard serial port such as COM ports on PCs. Note that this device
complies with the EIA232 standard in that it uses signal levels from ± 12V to ± 12V and can be converted
to TTL levels as well. The display is set at 19.2Kbps default speed. Other settings are;
8 bits, no parity, 1 stop bit.
