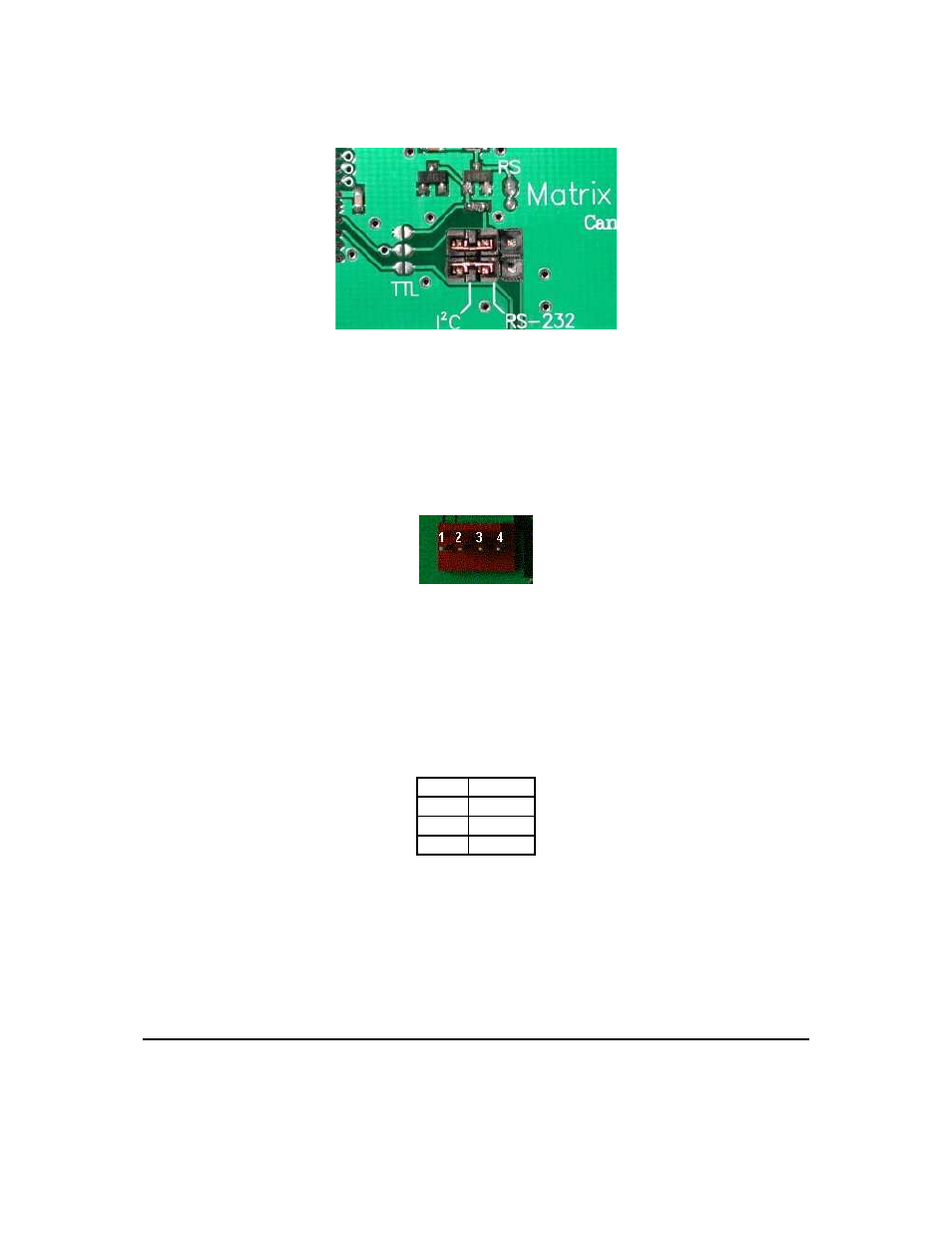

Figure 10: I

2

C

Connector pinout is as follows;

Figure 11: Power Connector

Table 4: Connector Pinout

Pin 4

Ground

Pin 3

Rx

Pin 2

Tx

Pin 1

Vdc

2.2.3 TTL communications

The display can be talked to at TTL (logic 0V to +5V) levels. Three modifications have to be made. This

will allow TTL communications through the 4-pin SIP header or the DB-9 connector.

Matrix Orbital

VFD2041

8
