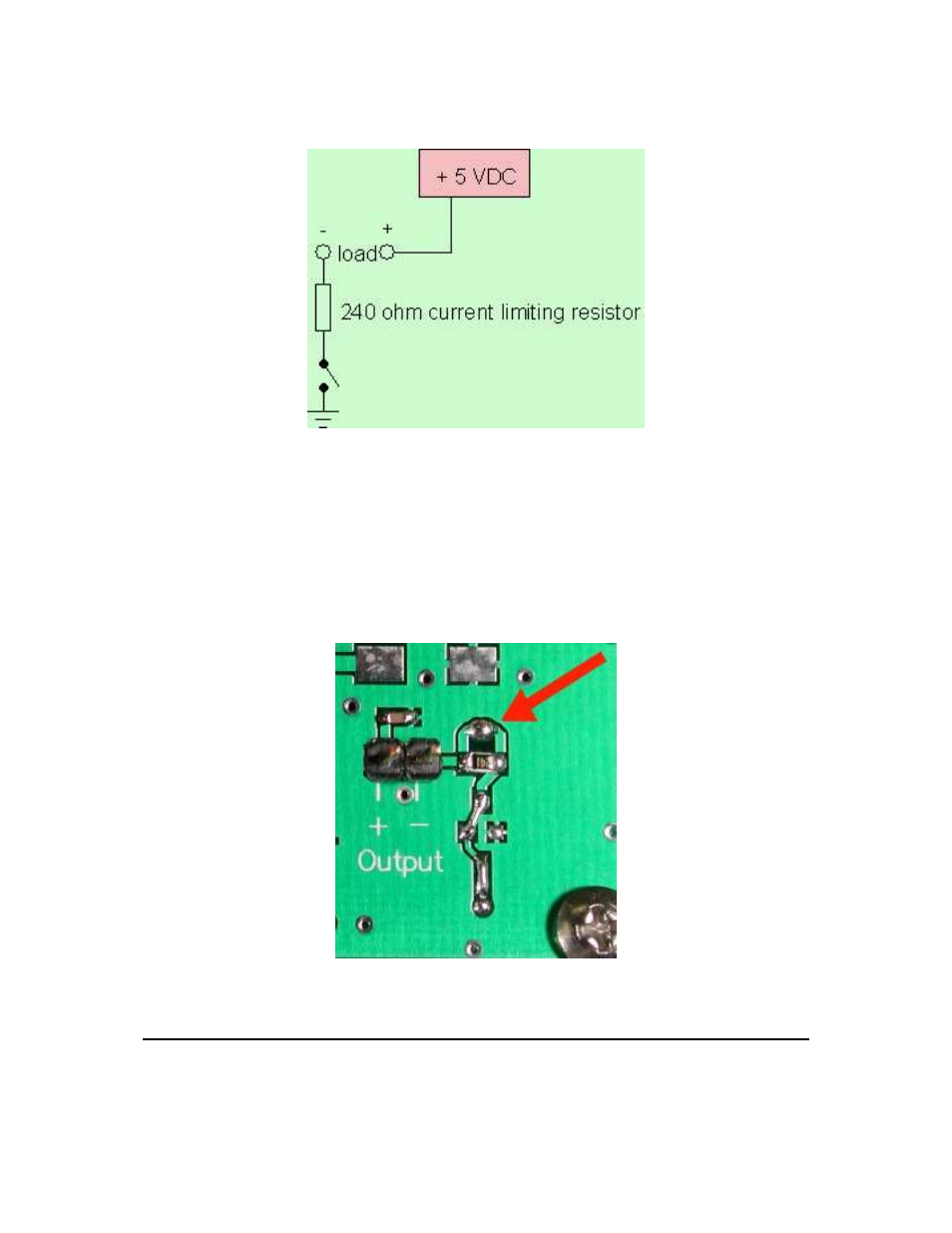

Figure 16: General Purpose Output
Maximum allowable current is 20 mA, which is enforced by the current limiting resistor. If the device
being switched has a resistance of 240 ohms or more the corresponding resistor may be shorted. Solder a
small jumper wire (wirewrap wire is good) between the two feedthrough holes.
Figure 17: Bypassing 240 ohm Resistor
