Ashcroft GC55 - Differential Pressure Transducer with Digital Display User Manual
Page 8
8
3. Installation
Install in a location where vibration and shock can be minimized and without
direct sunlight on the display in compliance with IP64 environmental rating.

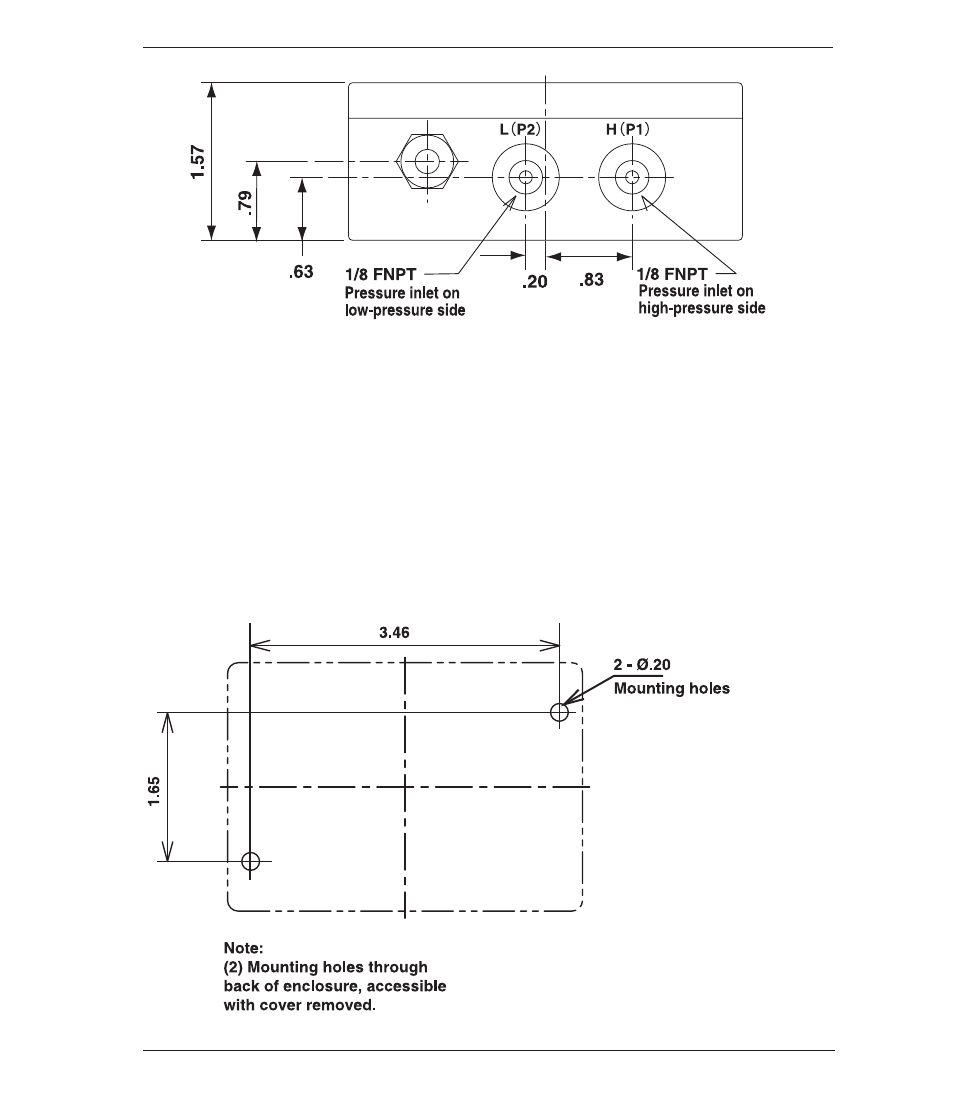

• Pressure Port Connections:
1
⁄
8
NPT female, 1
1
⁄
2
turns past hand tight.
• Mounting: Remove the GC55 cover, 4 screws, and attach via through
holes, (2) places, 0.20˝ diameter.
