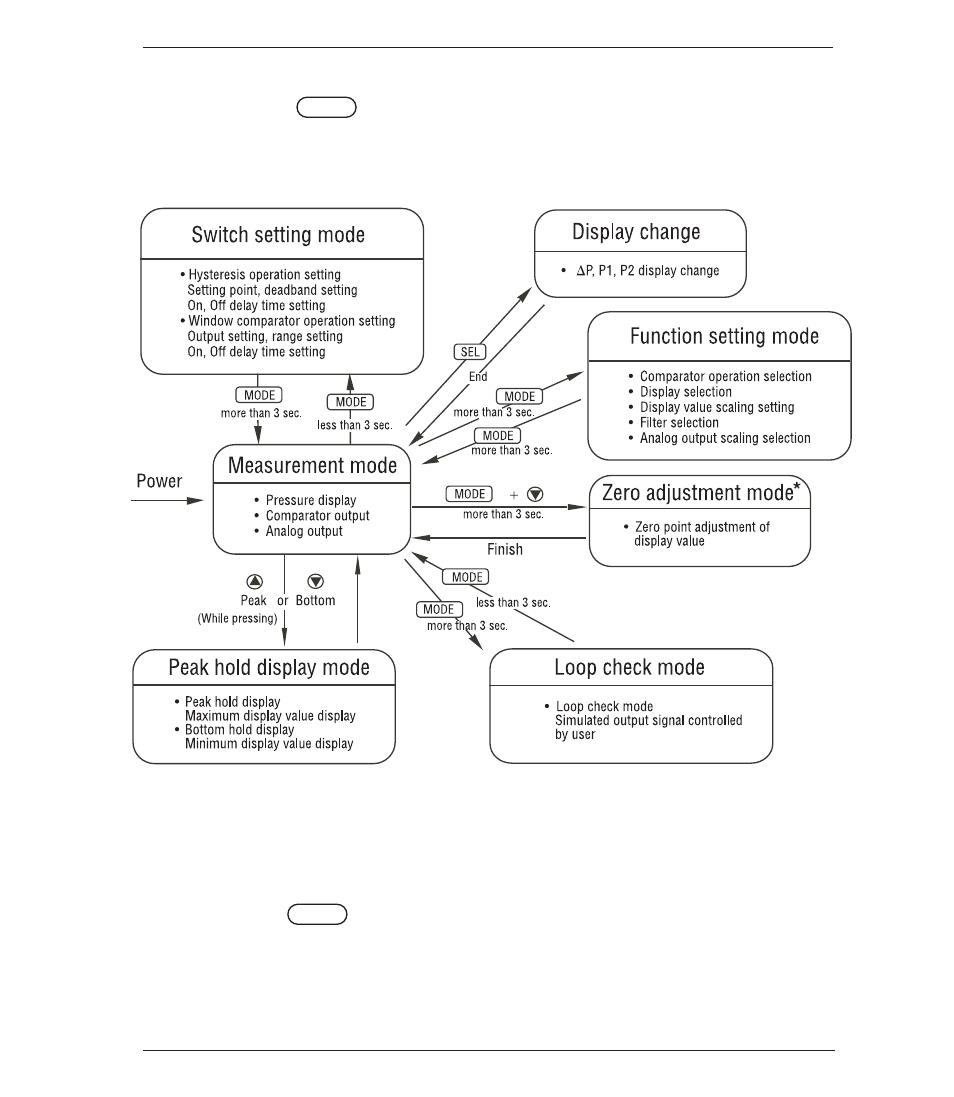

8. Menu navigation (cont.)

Pressing the

key for 3 seconds displays “---”. To return to

measurement mode from each setting mode, the “---” display will
flash when 3 seconds have passed.

MODE

9. Function setting Mode

setup steps

Pressing the

key for 3 seconds displays “---”.

To return to measurement mode from each setting mode, the “---” dis-
play will flash when 3 seconds have passed. The setting mode is
used to select switch operation, pressure unit, indication scaling, scal-
ing of analog output, and filter time constant.

MODE

*Note: Zero Adjustment, select P1 and P2 respectively and then use Zero

Adjustment, will not function in DP mode.
