7
operating humidity range:
10 to 85%(with no condensation)
storage Temperature:
–20 to 60°C (–4 to 140°F) (non freezing)
Case construction: IP65/NEMA 4
Pressure Connections : 1 ⁄
8
NPT Female (2) places
enclosure Material: Aluminum
Weight: 18 ounces
Notes:
*Maximum operating static (line) pressure is the full scale range of the
unit ordered/specified. The operation and features of the GC55 are based
upon the use of the two independent pressure transducers with electron-
ics which provide a different pressure output based upon the difference
in measurement between the two sensors.
**Option selected at time of order.

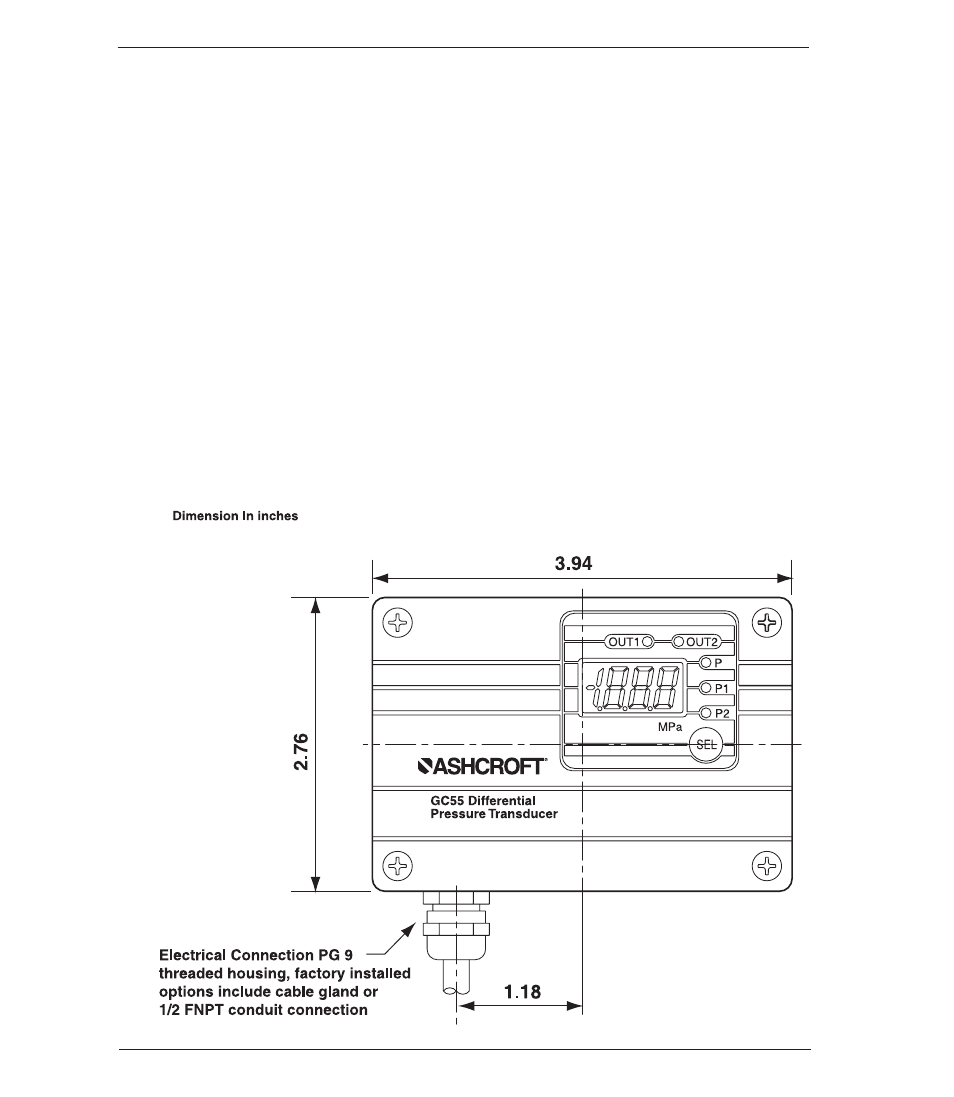

2. Dimension Drawings
