When the subassembly is removed from the pump, each end
block can be spun upward or downward independently on the
turnbuckle. As shown in Figure 5, the end blocks are grooved
on one side. These grooves fit onto the key ridge on the front
plate in order to set the subassembly securely in place.

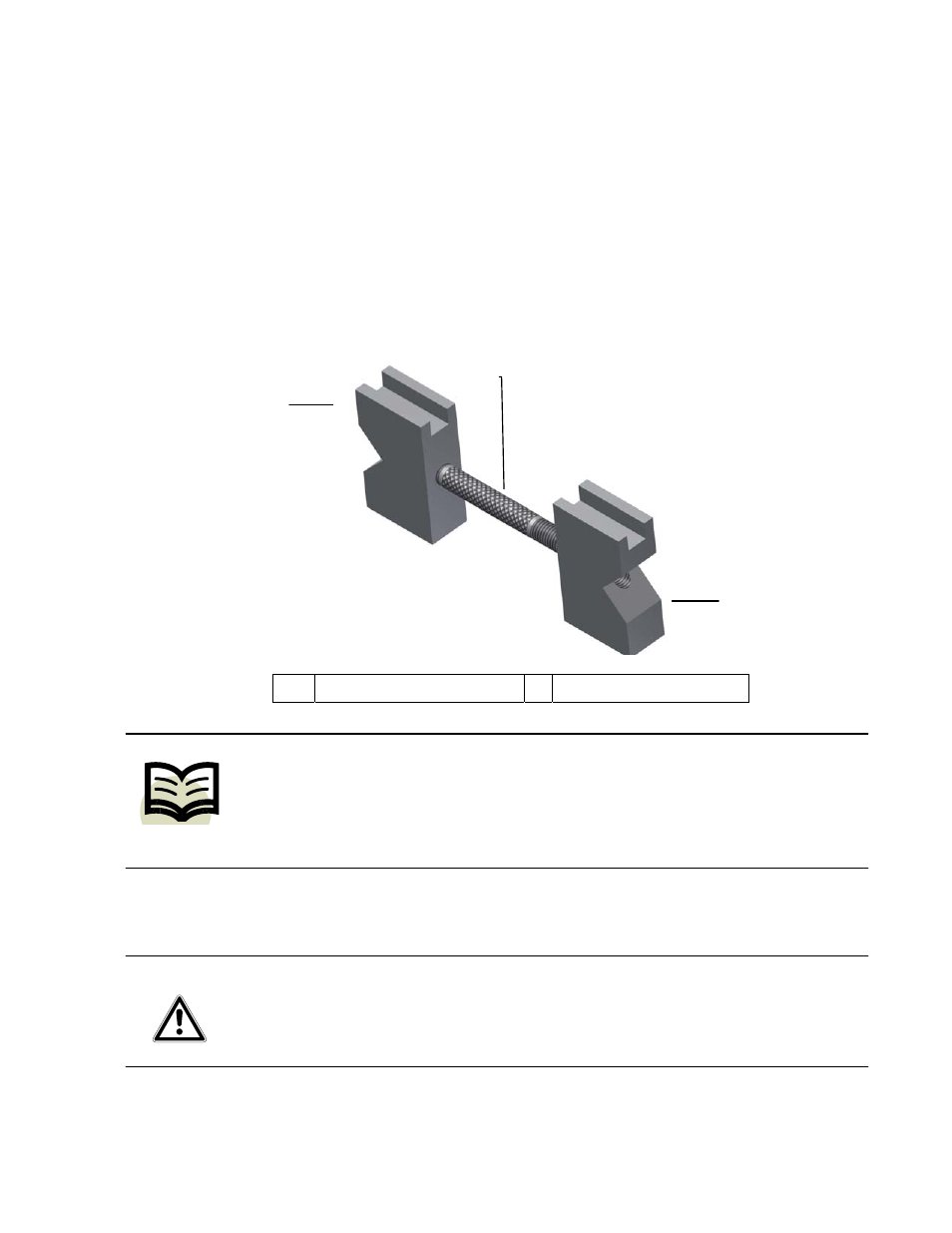

FIGURE 5: ADJUSTABLE TUBING HOLDER SUBASSEMBLY
1 End block 2 Turnbuckle
NOTE: Each end block can be raised or lowered
independantly on the rod, to suit the need for the
pressure on the tubing at either ends.
To install tubing, with reference to Figures 4 & 5:
CAUTION:
MAKE SURE THE PUMP IS TURNED OFF.
BE CAREFUL NOT TO PINCH YOUR FINGERS.
1
1
2
