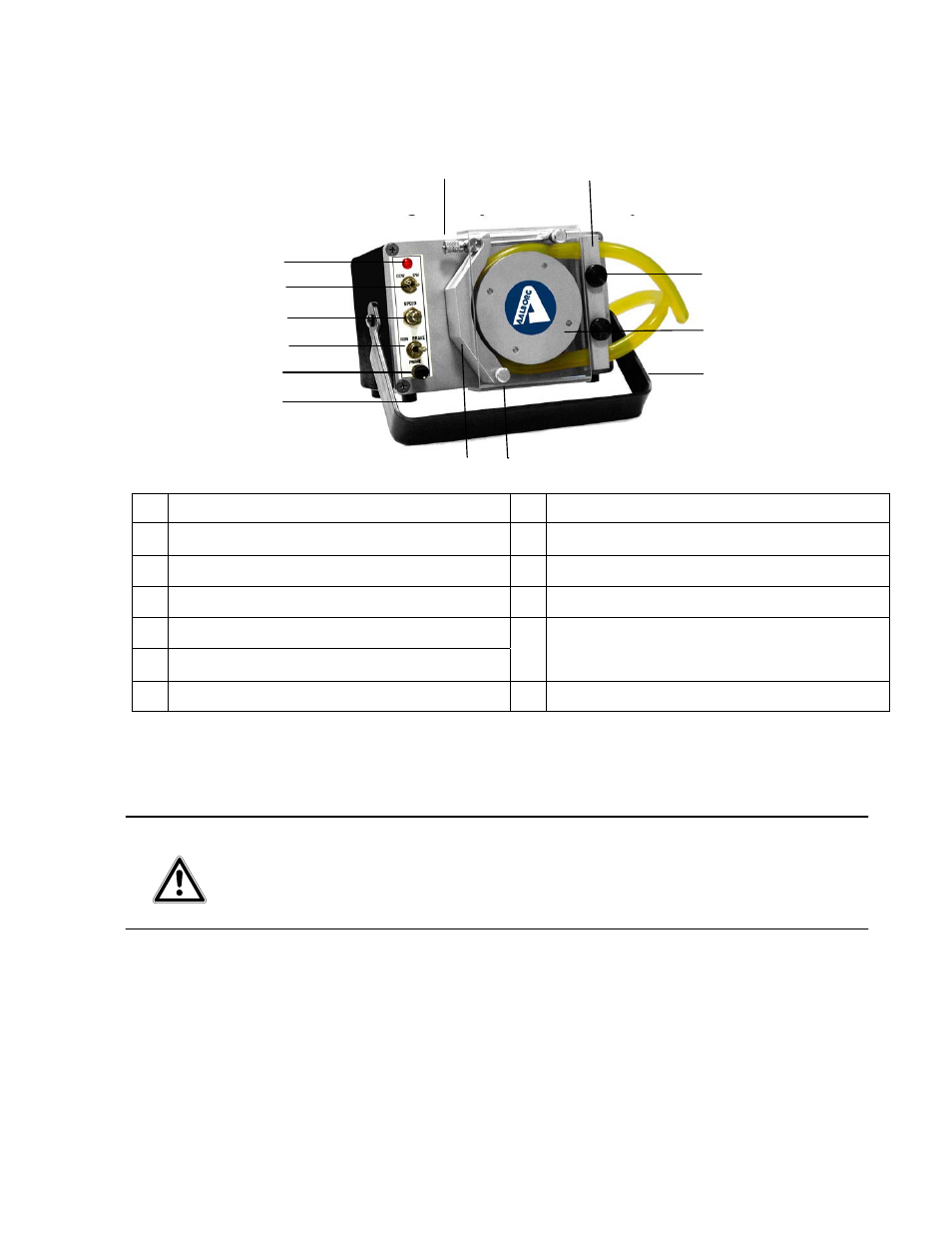

FIGURE 3: TPU PUMP FEATURES (model shown is a TPUAD)
1 Occlusion clamp lever 8 Foot (1 of 4)
2 Tubing separator 9 Prime button
3 Thumbscrews for separator 10 Run/Brake (on/off) switch
4 Transparent safety cover 11 Pumping speed adjustment knob
5 Handle/base 12 Flow direction switch (CCW,
counterclockwise/CW, clockwise)
6 Cover thumbscrew (1 of 2)
7 Occlusion clamp 13 Run indicator light
To install tubing, with reference to Figure 3:
CAUTION:
MAKE SURE THE PUMP IS TURNED OFF.
BE CAREFUL NOT TO PINCH YOUR FINGERS.
1. Remove the 2 thumbscrews from the transparent safety
cover, then lift the cover away from the pump face and set
it aside.
