Aalborg PWE Digital User Manual
Page 15
10
1
4
2
3
2
7
6
5
8
NOTE: Platinum RTD is not shown.
PARTS LIST
PARTS
PWEP MATERIALS
PWET MATERIALS
1
LOWER BLOCK
POLYPROPYLENE
PVDF
2
JEWEL BEARING (2 required)
PVDF SAPPHIRE
3
PADDLE WHEEL
PVDF & NICKEL
TUNGSTEN CARBIDE
PVDF &
ZIRCONIA CERAMIC
4
LID
ACRYLIC
PVDF
5
JUMPER COMPARTMENT PLUG
POLYPROPYLENE
6
SCREW 8-32 (4 required)
STAINLESS STEEL
7
O-RING
EPDM
PTFE
8
SCREW 6-32
STAINLESS STEEL

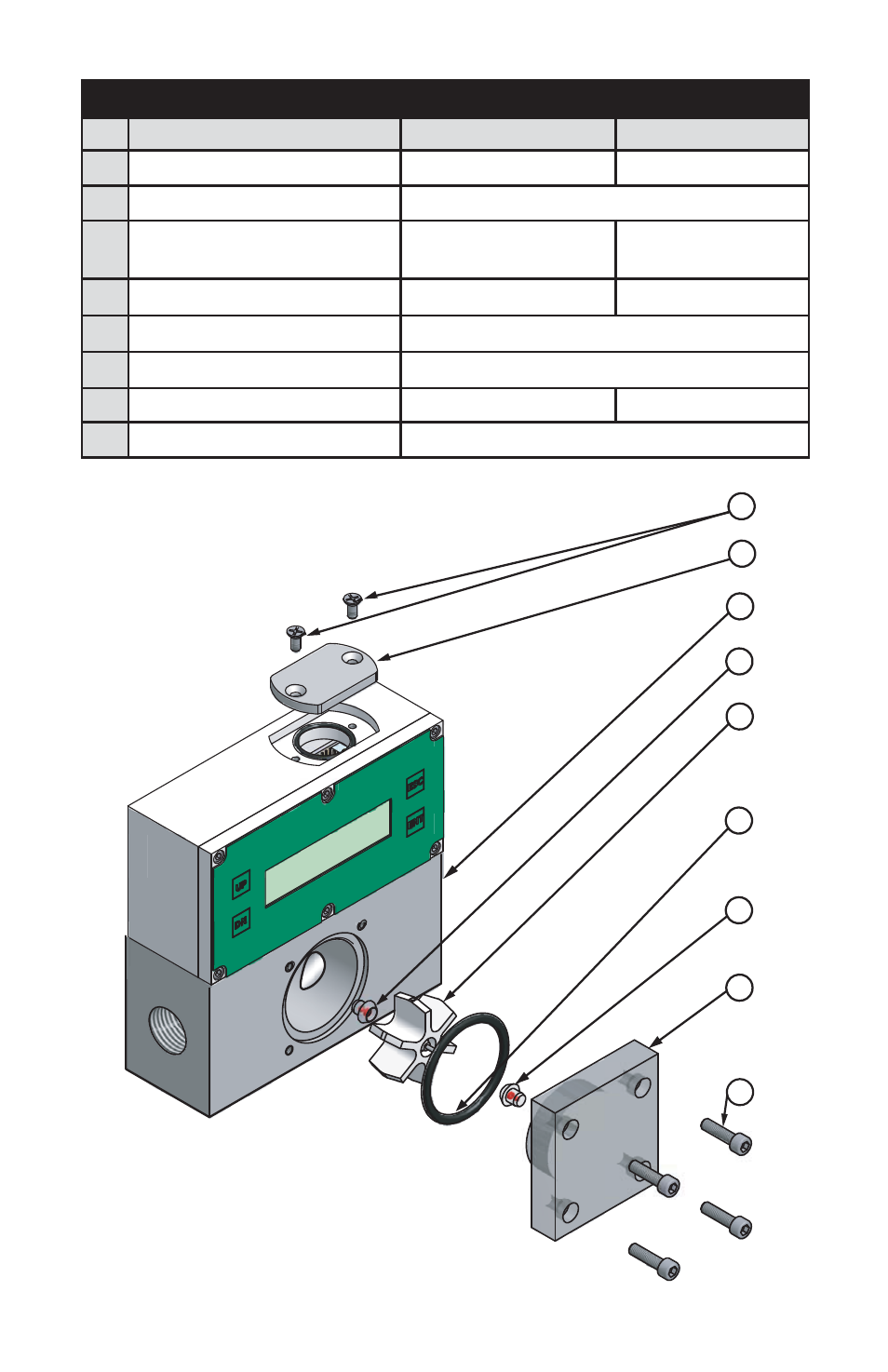

Figure 2-1 PWE assembly presentation drawing
