Appendix B - iDynamo Adapters

iDynamo| MagneSafe Secure Card Reader Authenticator | Technical Reference Manual


Page 21

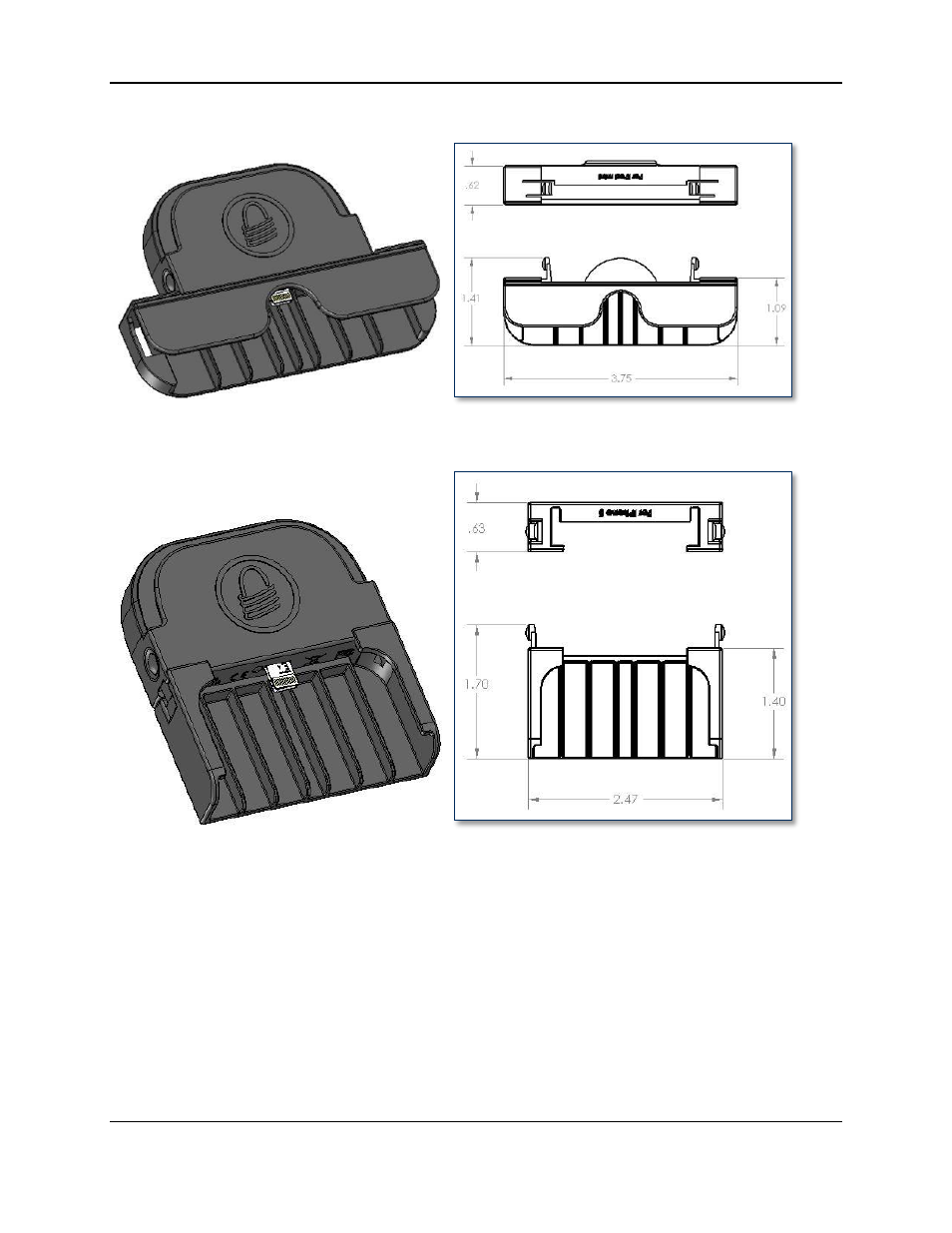

B.7 iPad Mini Adapter Sleeve (21041087)

Figure 4-9 – iDynamo 5 with iPad Mini Sleeve, Sleeve Dimensions (in inches)

B.8 iPhone 5 Adapter Sleeve (21041088)

Figure 4-10 – iDynamo 5 with iPhone 5 Sleeve, Sleeve Dimensions (in inches)
